Page 13

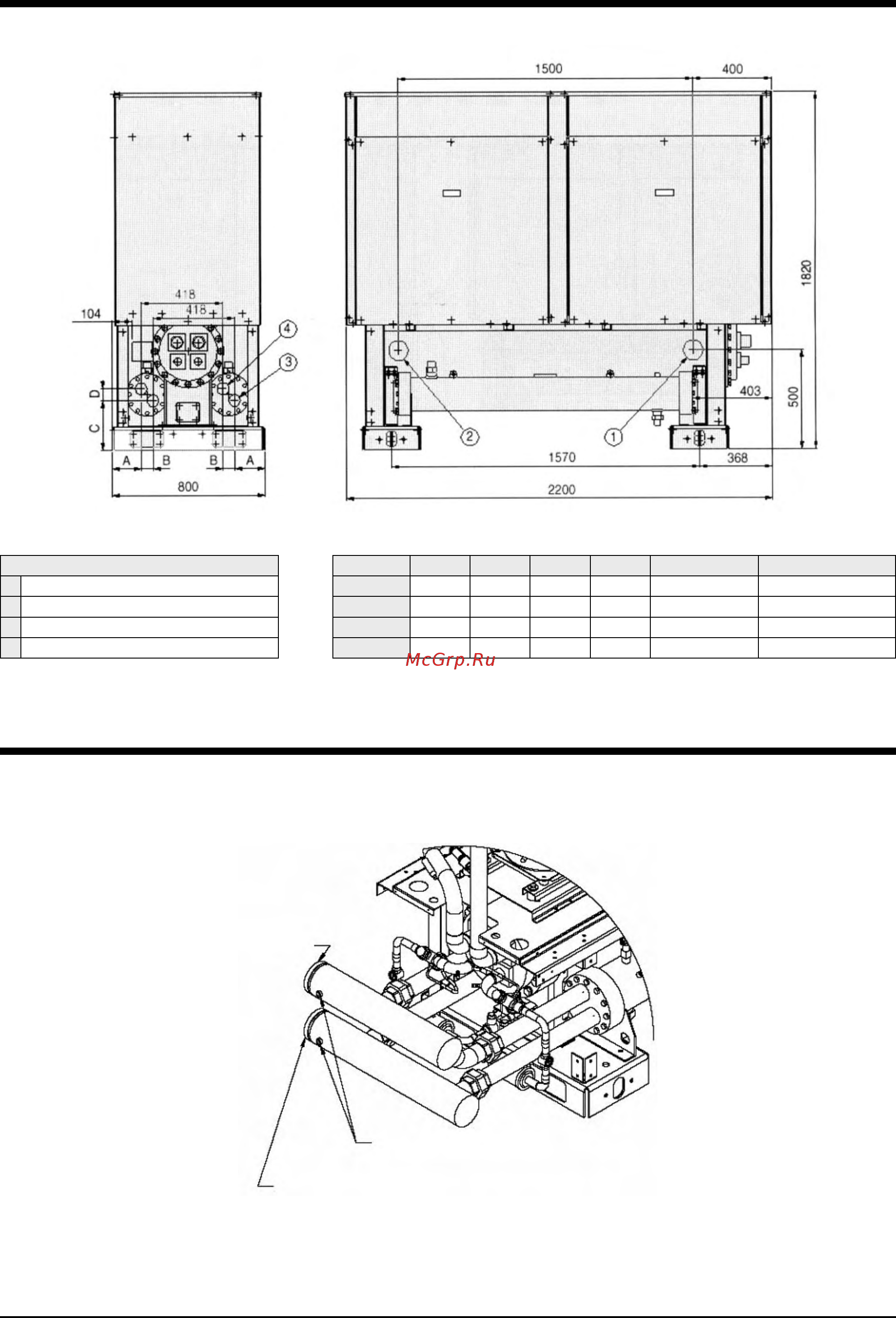

Dimensions - RWC 170 to 360
Sizes A B C D 1-2 3-4
170 151 60 249 60 DN 100 (4") 2" female gas
200 151 60 249 60 DN 100 (4") 2" female gas
240 146 70 257 70 DN 100 (4") 2" 1/2 female gas
280-360 146 70 257 70 DN 100 (4") 2" 1/2 female gas
LEGEND
1 Evaporator water in
2 Evaporator water out
3 Condenser water in
4 Condenser water out
Condenser Manifold Kit (Optional)
Water out
4" Victaulic
Water in
4" Victaulic
Sensor pocket connections
1/2" female gas
