Page 16
Transportortion, Handling and Stockage
3 TRANSPORTATION, HANDLING
AND STORAGE
The AQL/AQH units are supplied fully assembled
and tested (except for the shock absorbers which are
separately supplied). They are ready to be installed
and started on the field.
R407C units are only charged with liquid refrigerant
and with oil in the quantity required for operation.
The low pressure side of the refrigerating
circuit on R407C units shall be charged by
means of the service valve arranged on the
thermal expansion valve before the device
is operated.
3.1 Inspection
The unit shall be immediately inspected upon receipt
to find out any damage since it has been delivered
ex works and transported at the customer’s risk. It is
also necessary to make sure that all the parcels spec-
ified on the delivery note have been delivered.
Any damage you may find out shall be immediately
reported in writing to the carrier. Even if the damage
is only on the surface, please notify our local repre-
sentative too.
The manufacturer disclaims all responsibility for the
shipment even if it has provided for its organisation.
3.2 Handling

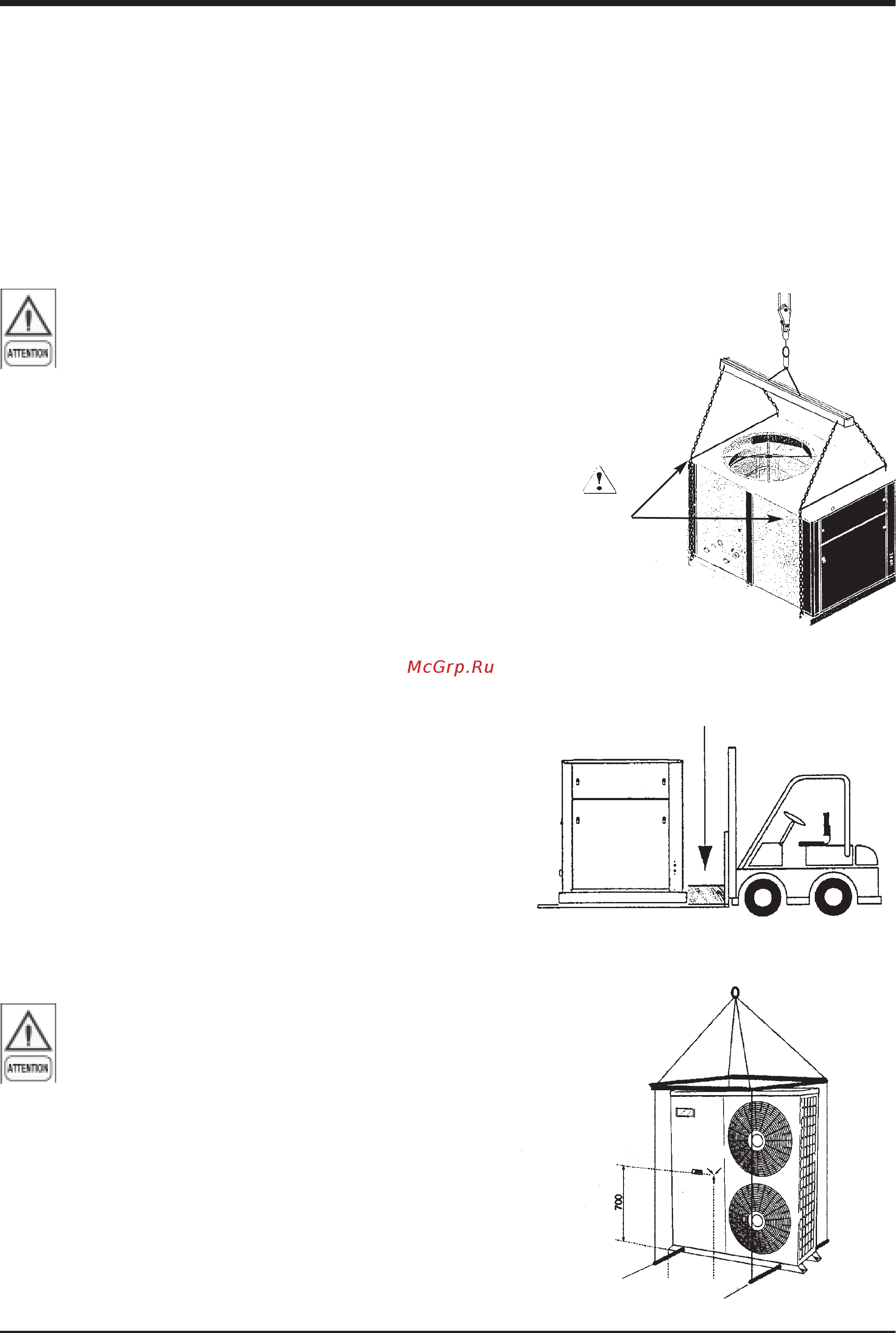

The AQL/AQH units are designed to be lifted from
above, by means of cables and eyebolts. A spacer
shall be arranged between the cables in order to
prevent them from damaging the unit (see the figure
aside).
Before handling the devices, make sure the site you
have chosen for the installation can withstand its
weight and support its mechanical impact.
Avoid touching sharp parts (such as the fins of batter-
ies, for example) while handling the unit.
The unit shall never be placed on rollers.
Act as follows to lift and handle the unit:
h
Insert and secure the eyebolts into the frame holes
which have been marked on purpose.
h
Connect the cables to the eyebolts.
h
Insert the spacer between the cables.
h
Provide for hooking at the centre of gravity of the
device.
h
Cables shall have such a length that the angle they
form with the horizon when under tension is not
less than 45°.
Protect cabinet
during lifting
Space requirements
request to handling
Holes Ø 30 mm
