Installation

English

4.3 Installation of Spring Shock

Absorbers

Prepare the bedplate which shall be smooth and

flat.

Lift the device and insert the shock absorbers. For

this purpose follow the instructions here below.

Installation of the vibration-damping sup-

port by means of a jack:

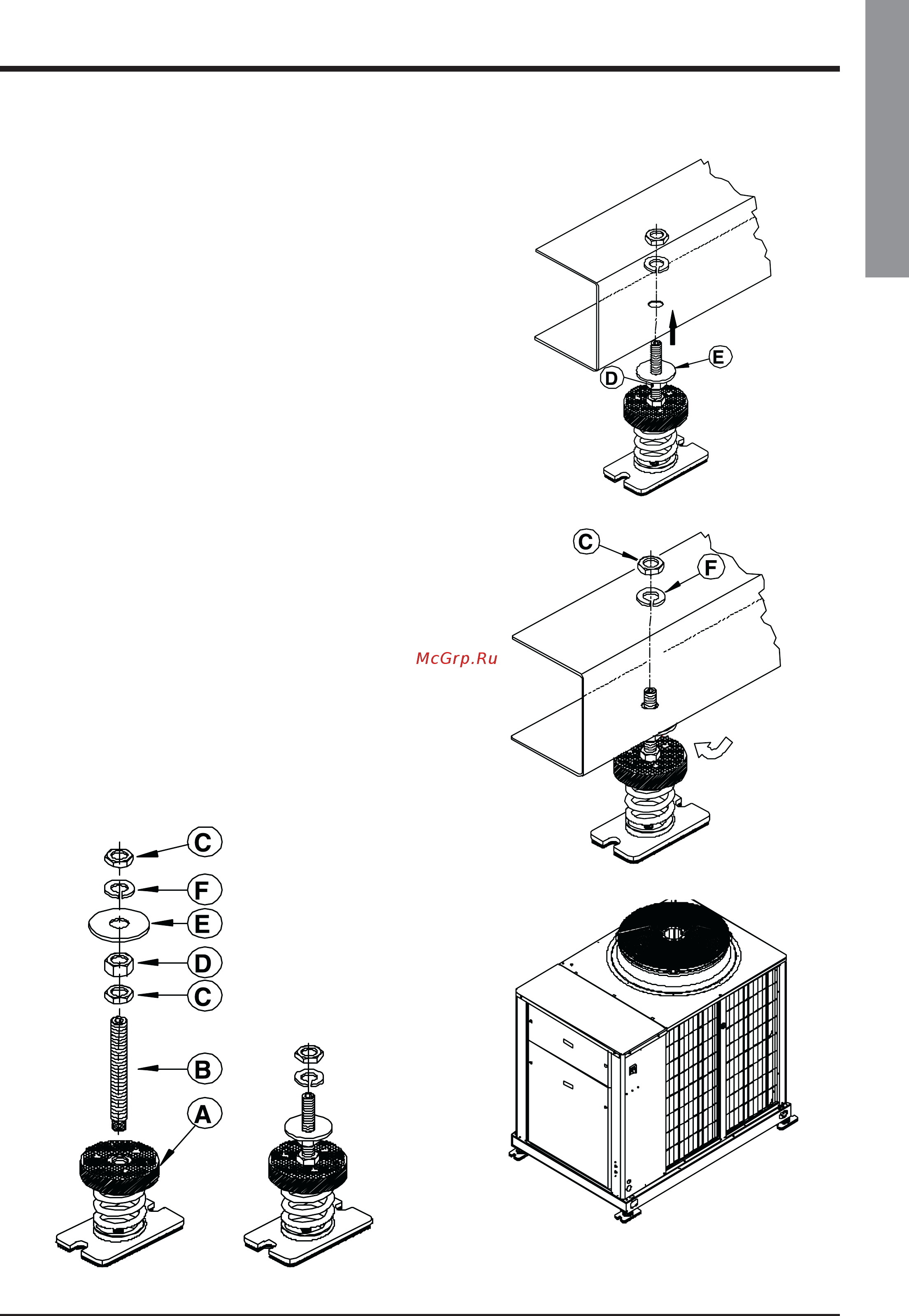

Fig. 1) Start assembling the components of the

jack.

Fig. 2) Insert the jack into the threaded seat

arranged on the upper plate of the vibration-

damping device. Insert the jack assembled on the

vibration-damping device into the hole arranged

on the bedplate of the machine.

Fig. 3) Make sure that the bedplate of the ma-

chine is arranged on the flat washer (pos. E) of

the jack. Use a wrench 13 and act on the high

nut (pos. D) (Fig. 3) to balance any difference in

height.

Use a grower washer (pos. F) and act on the low

nut (pos. C) to lock the position you have

reached.

At the end of the operation make sure the ma-

chine is elastic on the axes and ready for the in-

stallation of any vibration-damping balancing

joint in the water connections.

Fig. 1

Fig. 4

Fig. 3

Fig. 2
