Page 21
Installation
English
Before filling the installation, remove any
impurity, such as sand, crushed stones and
welding scales, coating drops and any
other material which might damage the
evaporator.
It is advisable to flush with disposable water by-
passing the exchanger to avoid clogging.
The water used to fill the circuit shall be
treated in such as way that the pH will
have the correct value.

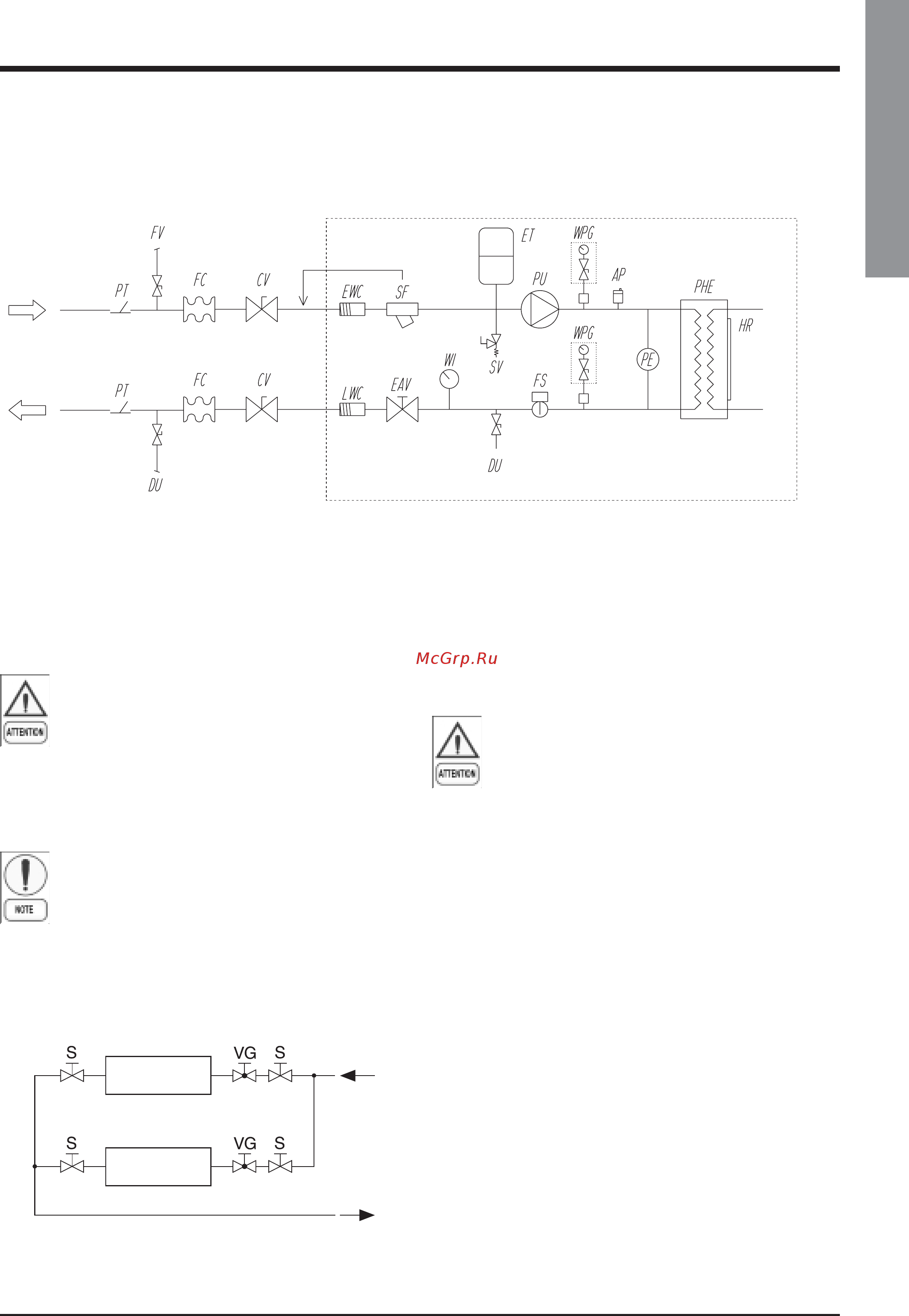

When two or several units are connected in paral-
lel, to balance the load losses of the various cir-
cuits, it is recommended to execute a “reverse re-
turn” connection (see the diagram below).
4.5 Water connections
The attachments at the water inlet and out-
let shall be connected in compliance with
the instructions which can be found on the
labels in the proximity of the attachments.
Connect the water lines of the plants with the at-
tachments of the unit whose diameters and positions
are shown by Chapter 9.
Notes:
SF Mesh filter (outside on 20/35)
ET Expansion tank
SV Safety valve
AP Vent valve
PHE Plate-type exchanger
PU Circulation pump
DU Drain cock
EAV Flow rate calibration valve (only on 40/130)
FS Flow switch (only on 40/130)
PT Thermometric trap
PE Differential water pressure switch (only on 20/35)
HR Antifreeze resistance of the plate-type exchanger
WPG Attachments for manometers (only on 40/130)
EWC Attachment at the water inlet
LWC Attachment at the water outlet
WI Water gauge
CV On/Off valves
FC Flexible joints
FV Water filling valve
Version with a pump
PLANT COMPONENTS (NOT SUPPLIED) HYDRO KIT COMPONENTS
UNIT 1
UNIT 2
Legend
S On/Off valves
VG Balancing valves
