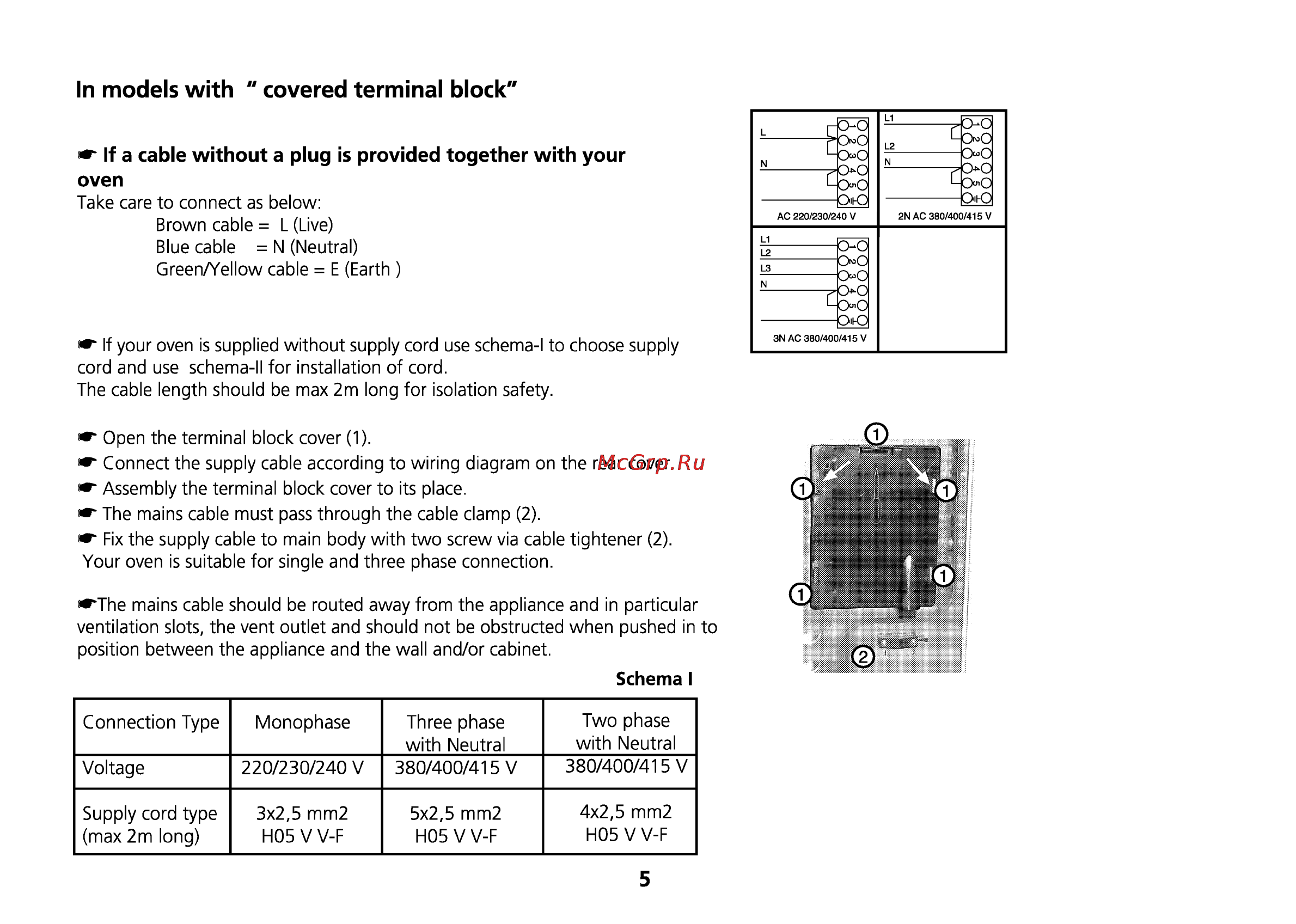

In models with covered terminal block If a cable without a plug is provided together with your oven Take care to connect as below Brown cable L Live Blue cable N Neutral Green Yellow cable E Earth If your oven is supplied without supply cord use schema 1 to choose supply cord and use schema ll for installation of cord The cable length should be max 2m long for isolation safety Open the terminal block cover 1 f Connect the supply cable according to wiring diagram on the rear cover Assembly the terminal block cover to its place f The mains cable must pass through the cable clamp 2 Fix the supply cable to main body with two screw via cable tightener 2 Your oven is suitable for single and three phase connection The mains cable should be routed away from the appliance and in particular ventilation slots the vent outlet and should not be obstructed when pushed in to position between the appliance and the wall and or cabinet Schema I Connection Type Voltage Supply cord type max 2m long Monophase Three phase with Neutral 220 230 240 V 380 400 415 V 3x2 5 mm2 H05 V V F 5x2 5 mm2 H05 V V F Two phase with Neutral 380 400 415 V 4x2 5 mm2 H05 V V F 5
