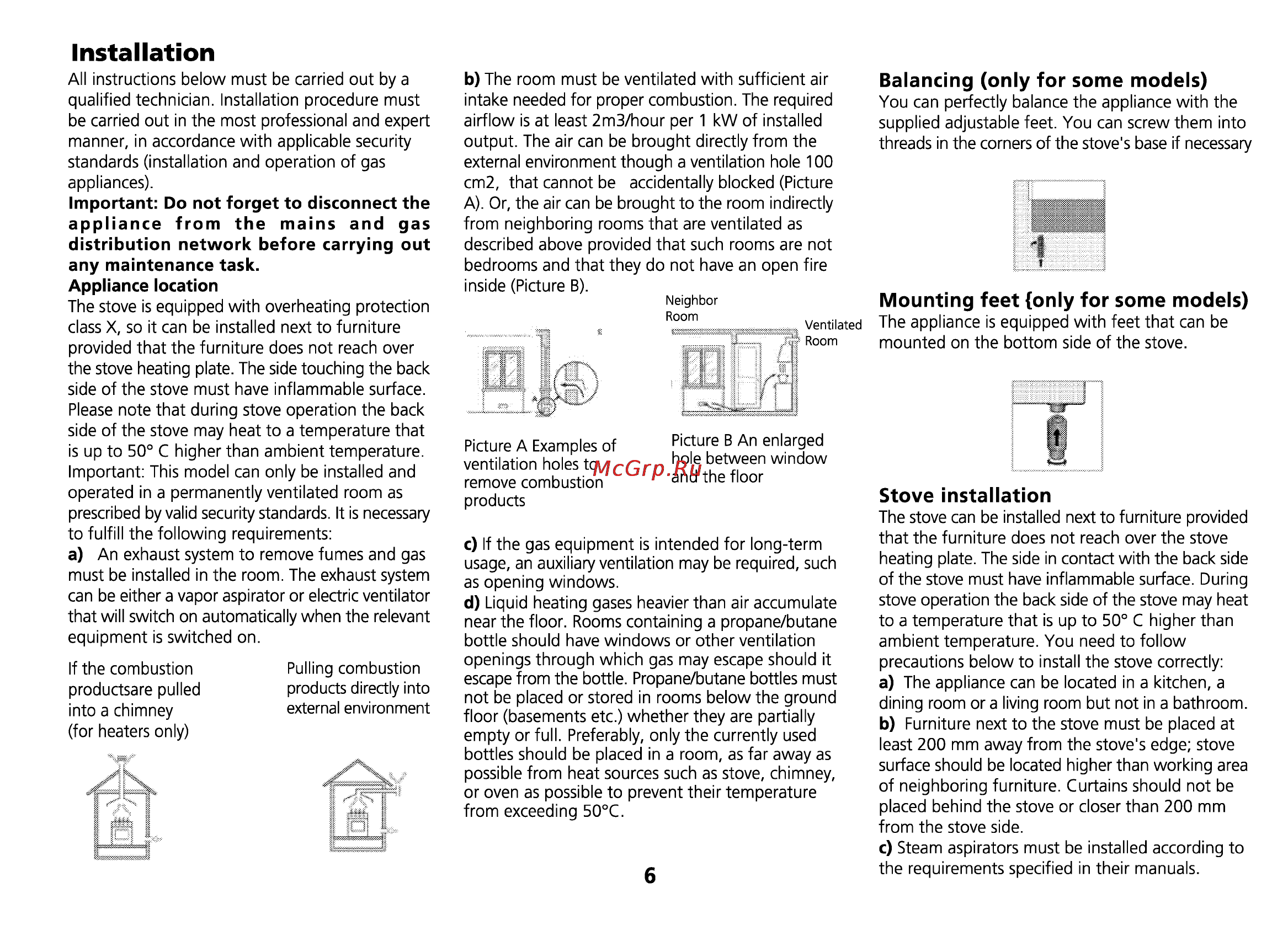

Installation All instructions below must be carried out by a qualified technician Installation procedure must be carried out in the most professional and expert manner in accordance with applicable security standards installation and operation of gas appliances Important Do not forget to disconnect the appliance from the mains and gas distribution network before carrying out any maintenance task Appliance location The stove is equipped with overheating protection class X so it can be installed next to furniture provided that the furniture does not reach over the stove heating plate The side touching the back side of the stove must have inflammable surface Please note that during stove operation the back side of the stove may heat to a temperature that is up to 50 C higher than ambient temperature Important This model can only be installed and operated in a permanently ventilated room as prescribed by valid security standards It is necessary to fulfill the following requirements a An exhaust system to remove fumes and gas must be installed in the room The exhaust system can be either a vapor aspirator or electric ventilator that will switch on automatically when the relevant equipment is switched on If the combustion productsare pulled into a chimney for heaters only Pulling combustion products directly into external environment b The room must be ventilated with sufficient air Balancing only for some models intake needed for proper combustion The required airflow is at least 2m3 hour per 1 kW of installed output The air can be brought directly from the external environment though a ventilation hole 100 cm2 that cannot be accidentally blocked Picture A Or the air can be brought to the room indirectly from neighboring rooms that are ventilated as described above provided that such rooms are not bedrooms and that they do not have an open fire inside Picture B You can perfectly balance the appliance with the supplied adjustable feet You can screw them into threads in the corners of the stove s base if necessary Neighbor Room Mounting feet only for some models Ventilated Room The appliance is equipped with feet that can be mounted on the bottom side of the stove Picture B An enlarged hole between window and the floor Picture A Examples of ventilation holes to remove combustion products Stove installation c If the gas equipment is intended for long term usage an auxiliary ventilation may be required such as opening windows d Liquid heating gases heavier than air accumulate near the floor Rooms containing a propane butane bottle should have windows or other ventilation openings through which gas may escape should it escape from the bottle Propane butane bottles must not be placed or stored in rooms below the ground floor basements etc whether they are partially empty or full Preferably only the currently used bottles should be placed in a room as far away as possible from heat sources such as stove chimney or oven as possible to prevent their temperature from exceeding 50 C 6 The stove can be installed next to furniture provided that the furniture does not reach over the stove heating plate The side in contact with the back side of the stove must have inflammable surface During stove operation the back side of the stove may heat to a temperature that is up to 50 C higher than ambient temperature You need to follow precautions below to install the stove correctly a The appliance can be located in a kitchen a dining room or a living room but not in a bathroom b Furniture next to the stove must be placed at least 200 mm away from the stove s edge stove surface should be located higher than working area of neighboring furniture Curtains should not be placed behind the stove or closer than 200 mm from the stove side c Steam aspirators must be installed according to the requirements specified in their manuals
