Tp-Link TL-R470T+ [103/118] Management

-99-

¾ List of Subnet

In this list, you can view the Remote Management entries and edit them by the Action buttons.

The first entry in Figure 4-58 indicates that: The hosts with IP address in subnet of 192.168.2.0/24 are

allowed to access the Router and this entry is activated.

4.8.2 Management

4.8.2.1 Factory Defaults

Choose the menu Maintenance→Management→Factory Defaults to load the following page.

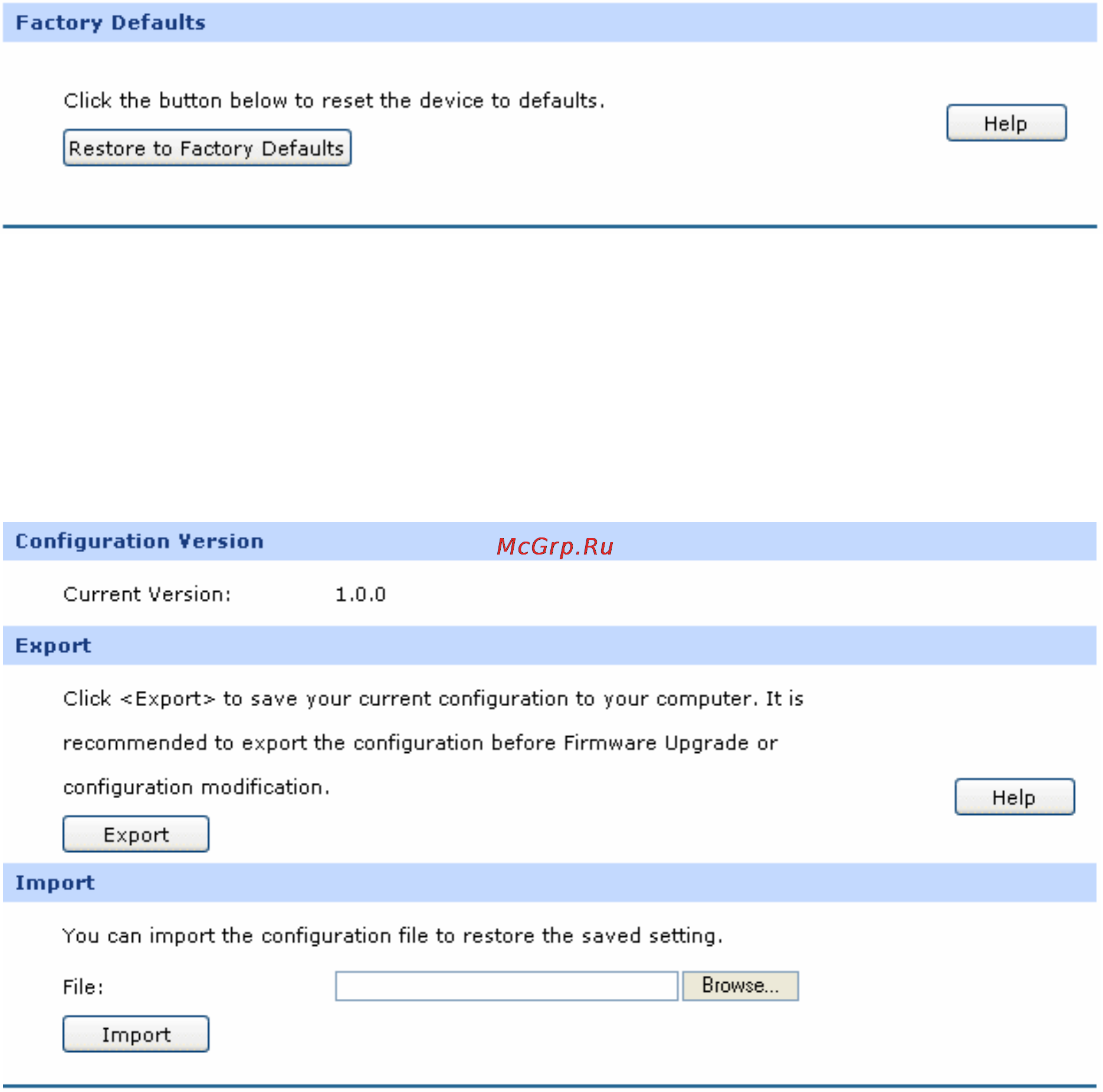

Figure 4-59 Factory Defaults

Click the <Restore to Factory Defaults> button to reset all configuration settings to their default values.

The default IP address is 192.168.0.1; the default login user name and password are both admin.

4.8.2.2 Export and Import

Choose the menu Maintenance→Management→Export and Import to load the following page.

Figure 4-60 Export and Import

The following items are displayed on this screen:

¾ Configuration Version

Displays the current Configuration version of the Router.
