Tp-Link TL-R470T+ [56/118] Virtual server

-52-

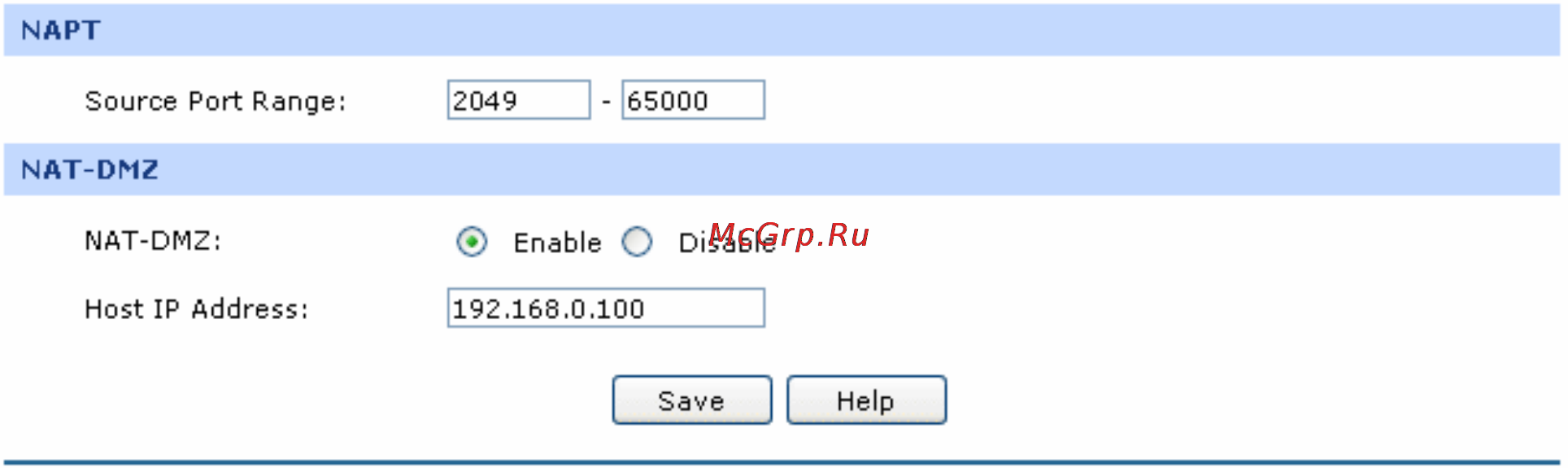

Figure 4-23 NAT Setup

The following items are displayed on this screen:

¾ NAPT

Source Port Range:

Enter the source port range between 2049 and 65000, the span of which

must be not less than 100.

¾ NAT-DMZ

NAT-DMZ:

Enable or disable NAT-DMZ. NAT DMZ is a special service of NAT

application, which can be considered as a default forwarding rule. When

NAT DMZ (Pseudo DMZ) is enabled, all the data initiated by external

network falling short of the current connections or forwarding rules will be

forwarded to the preset NAT DMZ host.

Host IP Address:

Enter the IP address of the host specified as NAT DMZ server.

4.5.1.2 Virtual Server

Virtual server can be used for setting up public services in your private network, such as DNS, Email

and FTP. Virtual server can define a service port. All the service requests to this port will be transmitted

to the LAN server appointed by the Router via IP address.

Choose the menu Advanced→NAT→Virtual Server to load the following page.
