If both the mirrored port and the mirroring port are the LAN ports, these two LAN ports should be in the

same Port VLAN. For example, if port 3 (the mirroring port) and port 4 (the mirrored port) are the LAN

ports, the Port Mirror function can take effect only when port 3 and port 4 are in the same Port VLAN.

Application Example:

To monitor all the traffic and analyze the network abnormity for an enterprise’s network, please set the

Port Mirror function as below:

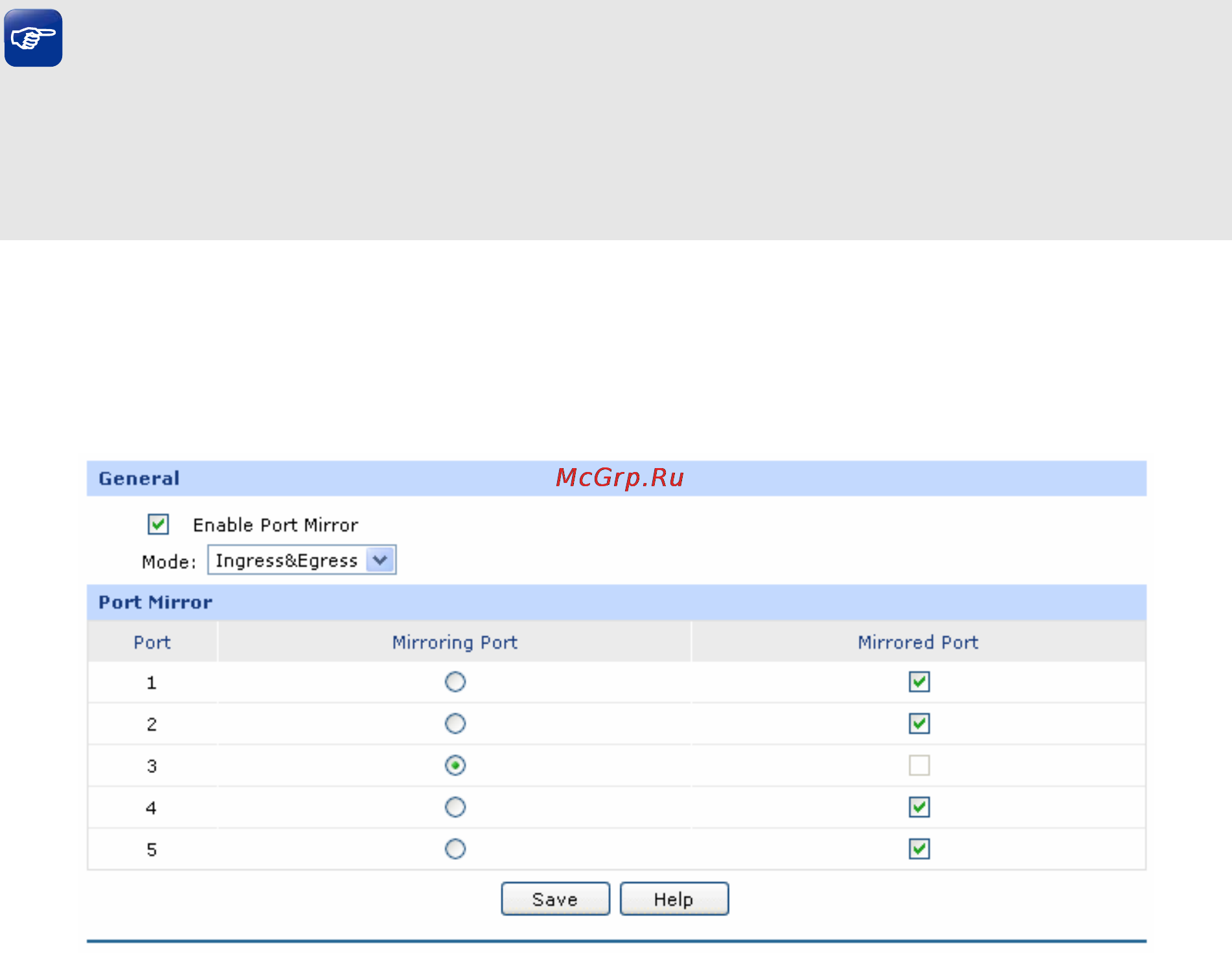

1) Check the box before Enable Port Mirror to enable the Port Mirror function and select the

Ingress & Egress mode.

2) Select Port 3 to be the Mirroring Port to monitor all the packets of the other ports.

3) Select all the other ports to be the Mirrored Ports.

4) Click the <Save> button to apply.

4.3.4.3 Rate Control

On this page, you can control the traffic rate for the specific packets on each port so as to manage your

network flow.

Choose the menu Network→Switch→Rate Control to load the following page.
