TL-R402M Cable/DSL Router User Guide
3
1.3.2 The Rear Panel

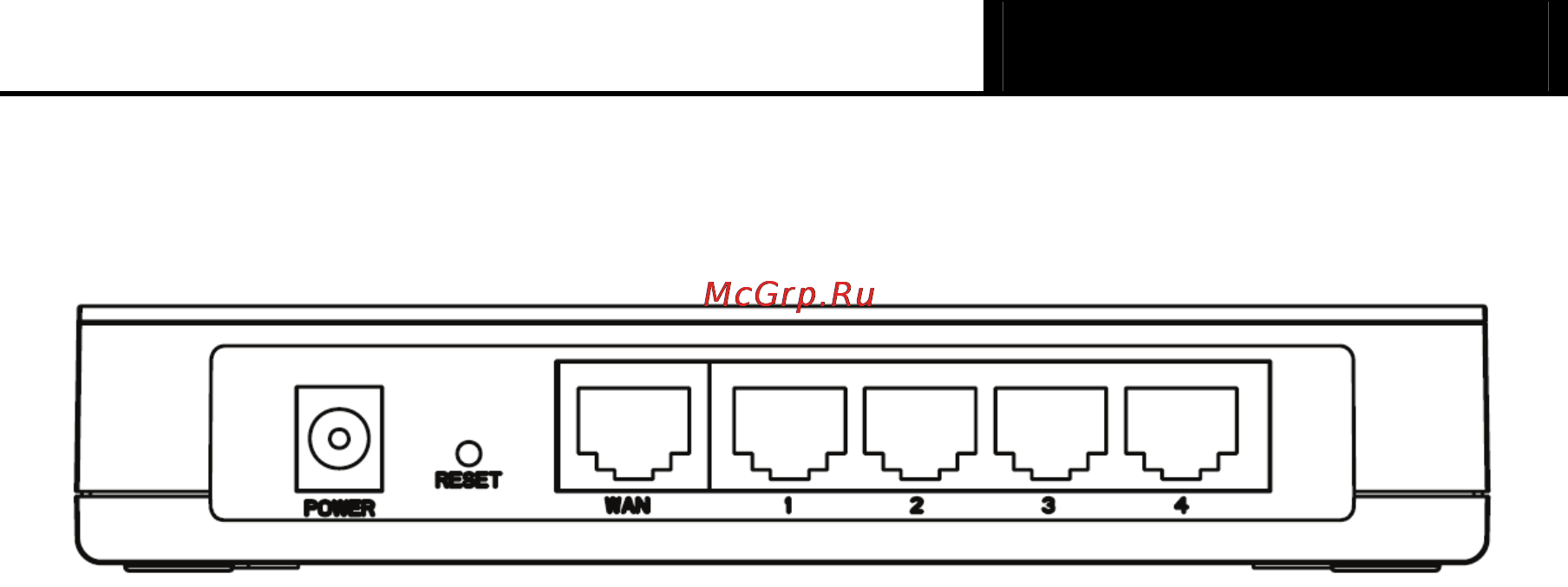

Figure 1-2 Rear Panel sketch
The following parts are located on the rear panel (View from left to right).
¾ Power socket: The Power socket is where you will connect the power adapter. Please use
the power adapter provided with this Router.
¾ Reset button
There are two ways to reset to the router's factory defaults:
1. Use the Factory Defaults function on System Tools -> Factory Defaults page in the
router's Web-based Utility.
2. Use the Factory Default Reset button: Press the Reset button for five seconds and then
wait for the router to reboot.
¾ WAN: This WAN port is where you will connect the DSL/cable Modem, or Ethernet
¾ LAN 1,2,3,4: These ports (1, 2, 3, 4) connect the router to the local PC(s)
