TL-R402M Cable/DSL Router User Guide

you write down the router settings before you upgrade its firmware.

To upgrade the router's firmware, follow these instructions:

1. Download a more recent firmware upgrade file from the TP-LINK website (www.tp-link.com

2. Run a TFTP Server on a PC on your LAN, and take the file in the TFTP server’s path.

3. Type the downloaded file name into the File Name box.

4. Type the IP address of the PC that runs the TFTP server in the TFTP Server’s IP Address

field.

5. Click the Upgrade button.

¾ Firmware Version - displays the current firmware version

¾ Hardware Version - displays the current hardware version. The hardware version of the

upgrade file must accord with the current hardware version

)

Note:

¾ Do not turn off the router or press the Reset button while the firmware is being upgraded

¾ The router will reboot after the upgrading has been finished

4.9.2 Factory Defaults

This page (shown in Figure 4-32) allows you to restore the factory default settings for the router.

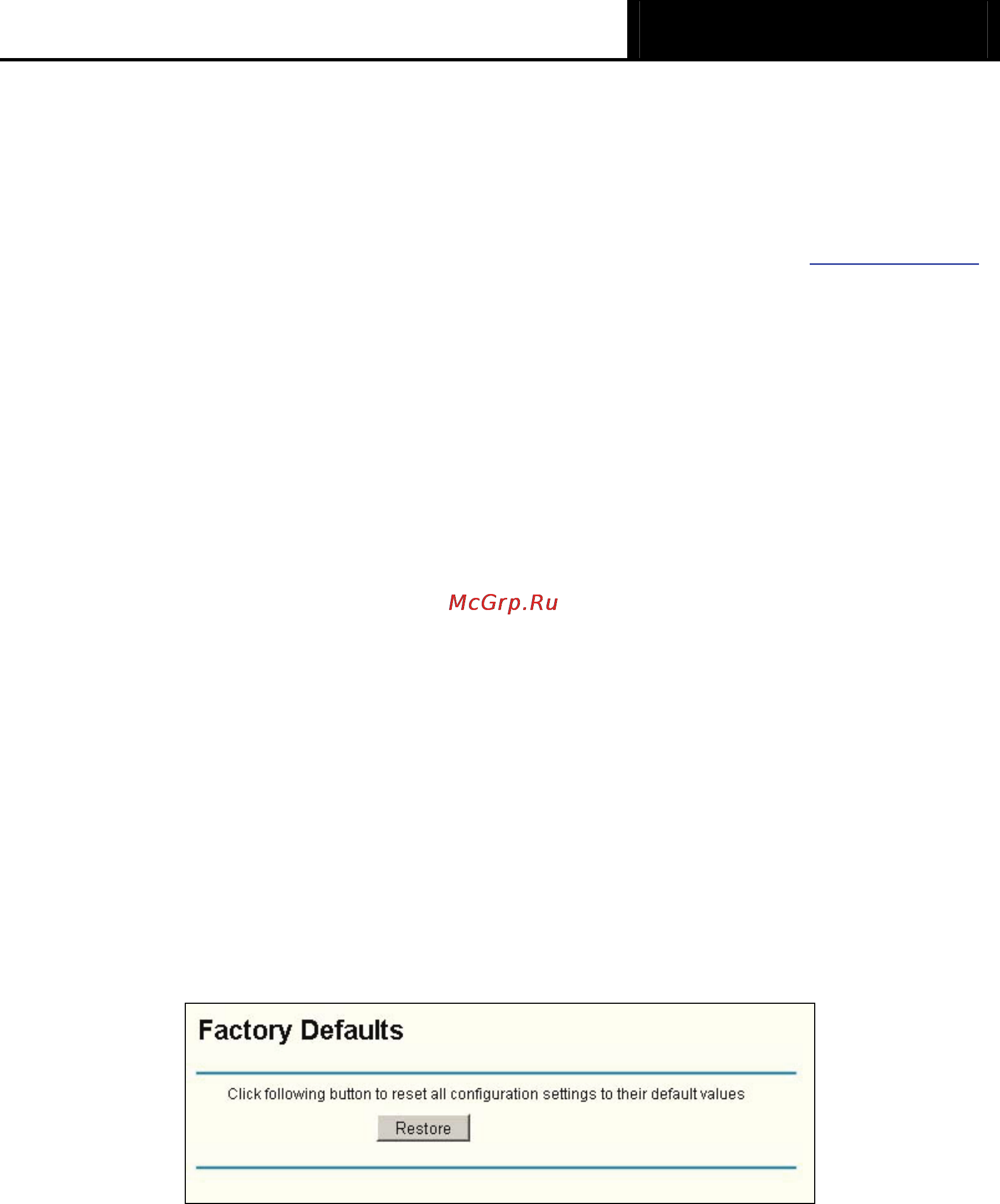

Figure 4-32 Restore Factory Default

Click the Restore button to reset all configuration settings to their default values.

¾ The default User Name: admin

¾ The default Password: admin

¾ The default IP Address: 192.168.1.1

¾ The default Subnet Mask: 255.255.255.0

)

Note:
