TL-R402M Cable/DSL Router User Guide

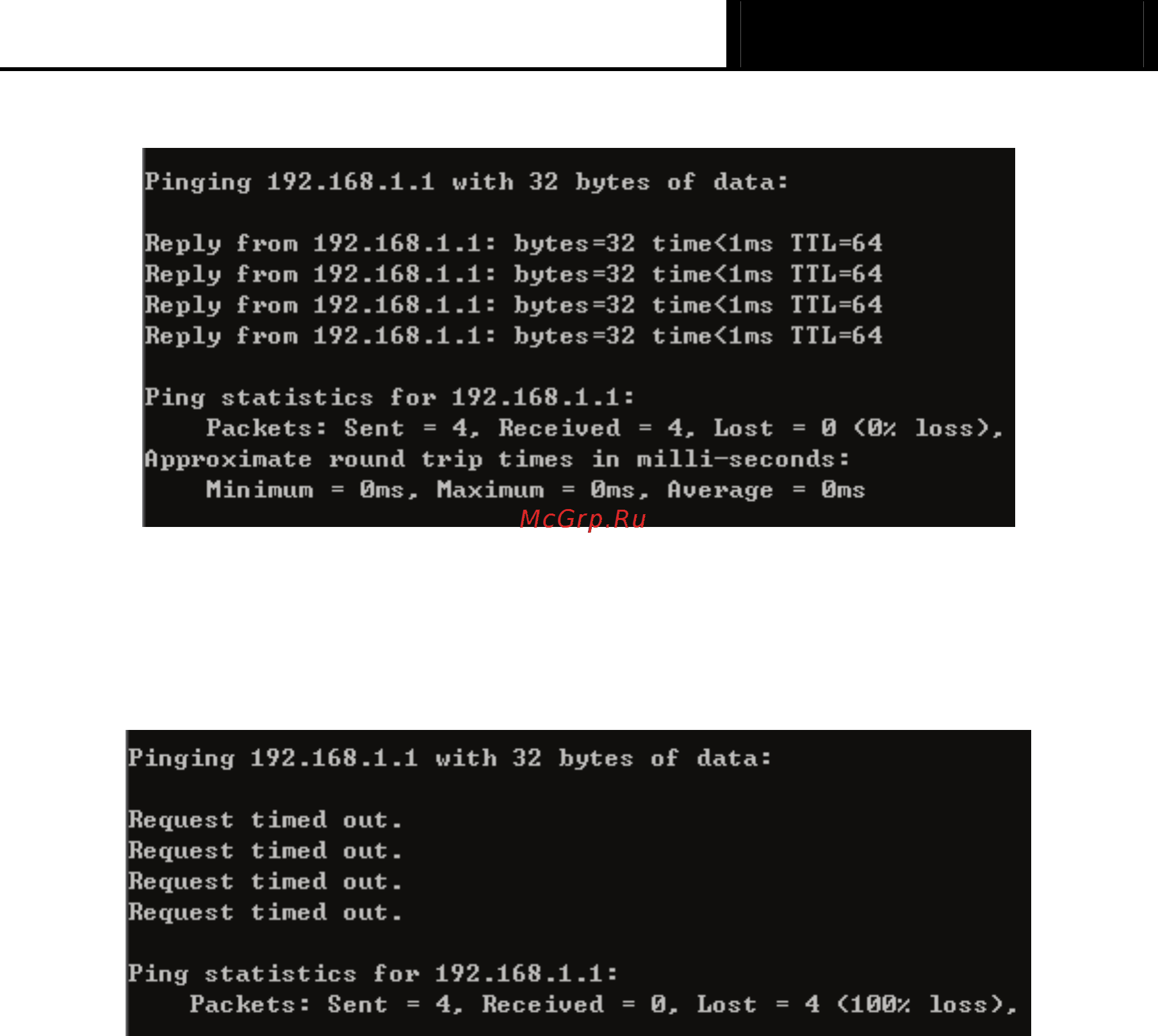

Figure 3-1 Successful result of Ping command

If the result displayed is similar to what is shown in Figure 3-1, the connection betwe

your PC

and the router has been established.

Figure 3-2 Failed result of Ping command

If the result displayed is similar to what shown in Figure 3-2 it means that your PC has not

connected to the router. If so, refer to the following steps for a solution.

1 Is the connection between your PC and the router correct?

)

Note:

The Link/Act LEDs of LAN port on the router and LEDs on your PC's adapter should be lit.

2 Is the TCP/IP configuration for your PC correct?

)

Note:

If the router's IP address is 192.168.1.1, your PC's IP address must be within the range of

192.168.1.2 ~ 192.168.1.254, the gateway must be 192.168.1.1.

3.2 Quick Installation Guide

With a Web-based (Internet Explorer or Netscape

Navigator) utility, the TL-R402M Cable/DSL

Router is easy to configure and manage. The Web-based utility can be used on any Windows,

Macintosh or UNIX OS with a web browser.
