TL-R402M Cable/DSL Router User Guide

Connect to the router by typing http://192.168.1.1 in the address field of web browser.

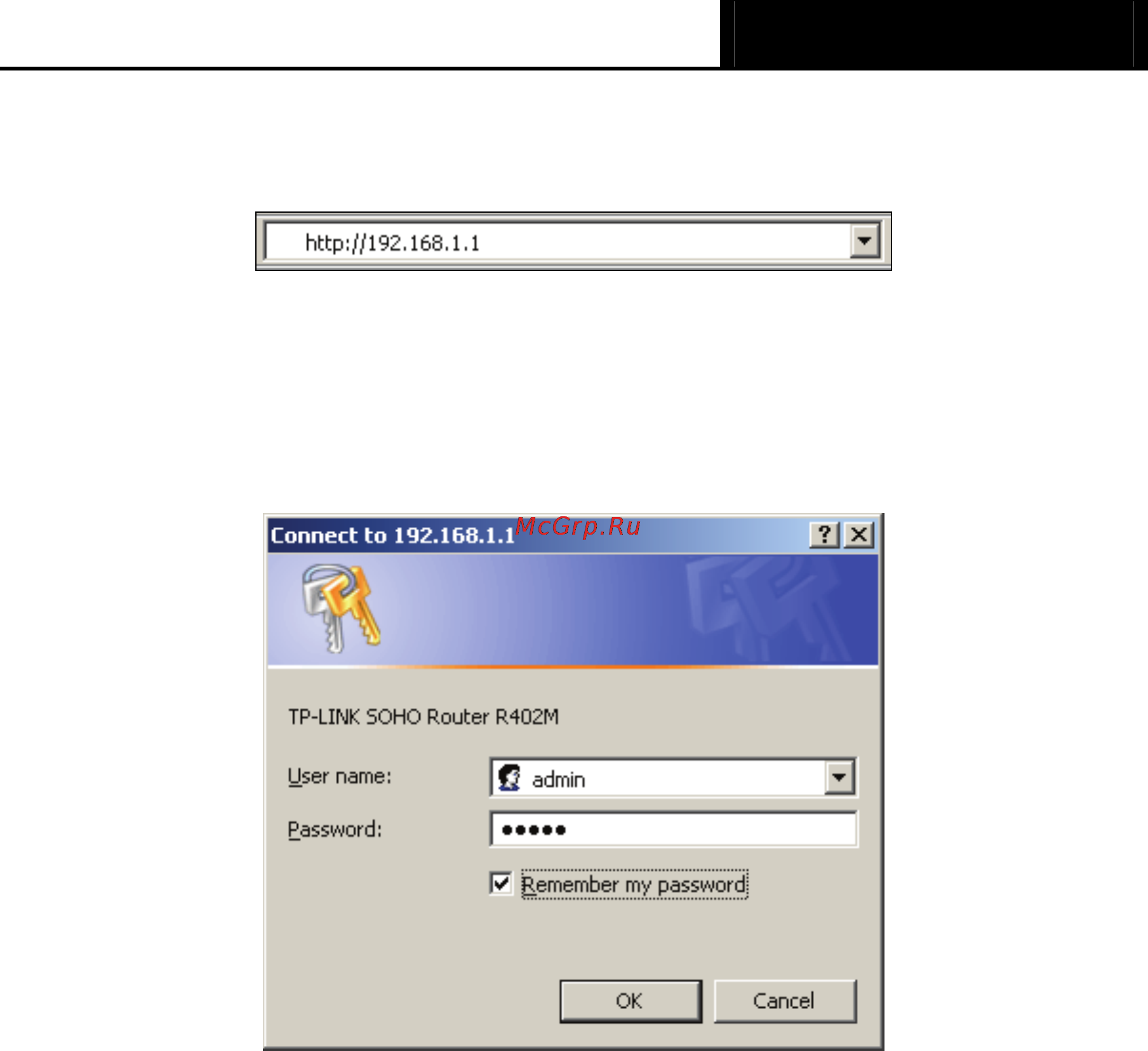

Figure 3-3 Login to the router

After a moment, a login window will appear similar to that shown in Figure 4-4. Enter admin for

the User Name and Password, both in lower case letters. Then click the OK button or press the

Enter key.

Figure 3-4 Login Windows

)

Note:

If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go

to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,

cancel the Using Proxy checkbox, and click OK to finish it.

If the User Name and Password are correct, you can configure the router using the web browser.

Please click the Quick Setup link on the left of the main menu and the Quick Setup screen will

appear.
