TL-R402M Cable/DSL Router User Guide

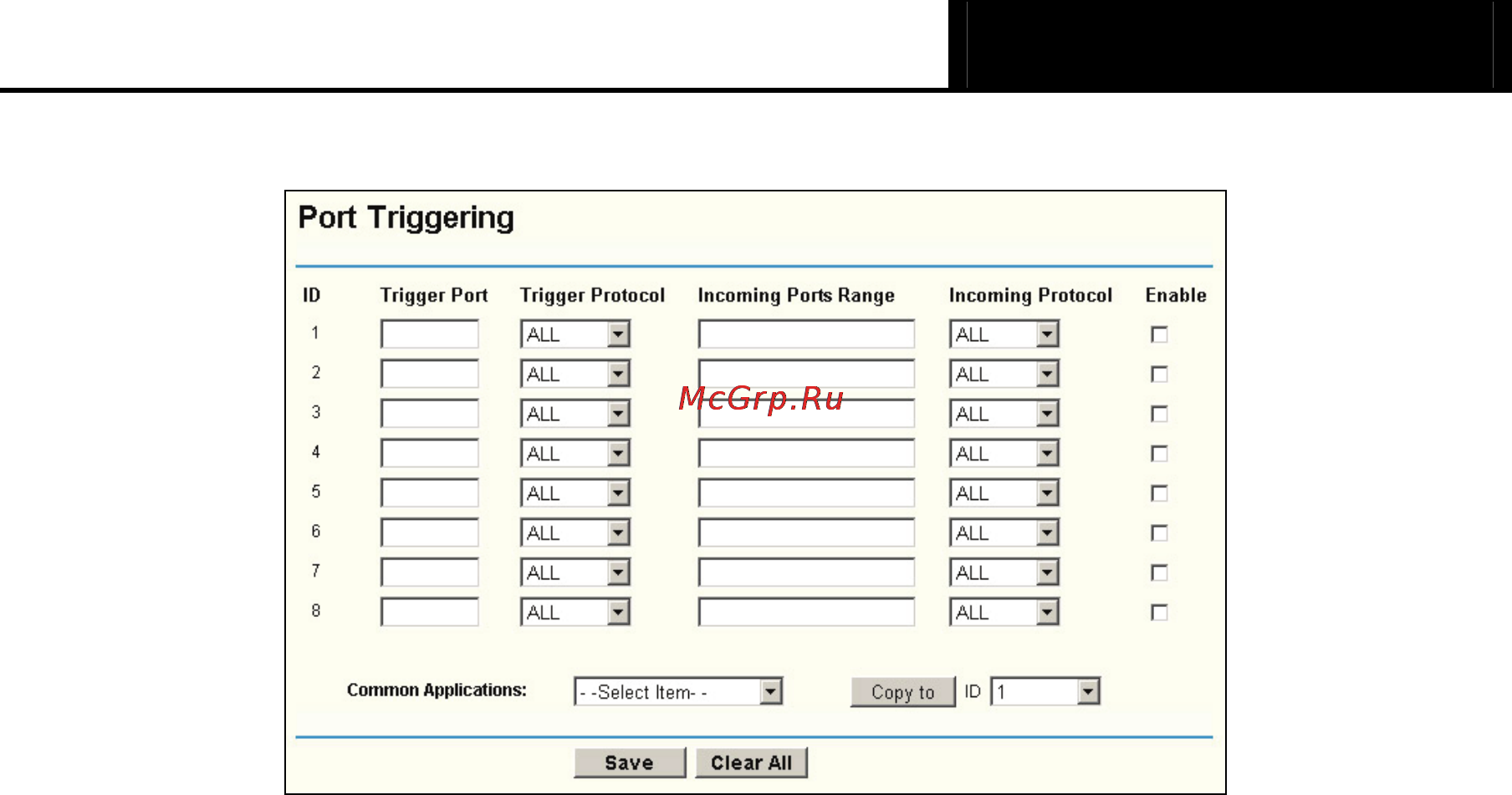

Figure 4-16 Port Triggering

Once configured, operation is as follows:

1. A local host makes an outgoing connection using a destination port number defined in the

Trigger Port field.

2. The router records this connection, opens the incoming port or ports associated with this

entry in the Port Triggering table, and associates them with the local host.

3. When necessary the external host will be able to connect to the local host using one of the

ports defined in the Incoming Ports field.

¾ Trigger Port - The port for outgoing traffic. An outgoing connection using this port will

"Trigger" this rule

¾ Trigger Protocol - The protocol used for Trigger Ports, either TCP,UDP, or All (all protocols

supported by the router)

¾ Incoming Ports Range - The port or port range used by the remote system when it

responds to the outgoing request. A response using one of these ports will be forwarded to

the PC that triggered this rule. You can input at most 5 groups of ports (or port section).

Every group of ports must be apart with ",". For example, 2000-2038, 2050-2051, 2085,

3010-3030

¾ Incoming Protocol - The protocol used for Incoming Ports Range, either TCP or UDP, or

ALL (all protocols supported by the router)

¾ Enable - The Enable checkbox enables port forwarding for the application

¾ Common Applications - Some popular applications already listed in the pull-down list

To add a new rule, enter the following data on the Port Triggering screen

1. Enter a port number used by the application when it generates an outgoing request.
