TL-R402M Cable/DSL Router User Guide

1) Login to the router, click the “Network” menu on the left of your browser, and click "WAN"

submenu. On the WAN page, select “Dynamic IP” for "WAN Connection Type", finish by

clicking “Save”.

2) Some ISPs require that you register the MAC address of your adapter, which is

connected to your cable or DSL modem during installation. If your ISP requires MAC

and then click "MAC Clone" submenu link. On the "MAC Clone" page, if your PC’s MAC

address is a proper MAC address, click the "Clone MAC Address" button and your PC’s

MAC address will fill in the "WAN MAC Address" field. Or else, type the MAC address

into the "WAN MAC Address" field. The format for the MAC address is

XX-XX-XX-XX-XX-XX. Then click the "Save" button. It will take effect after rebooting.

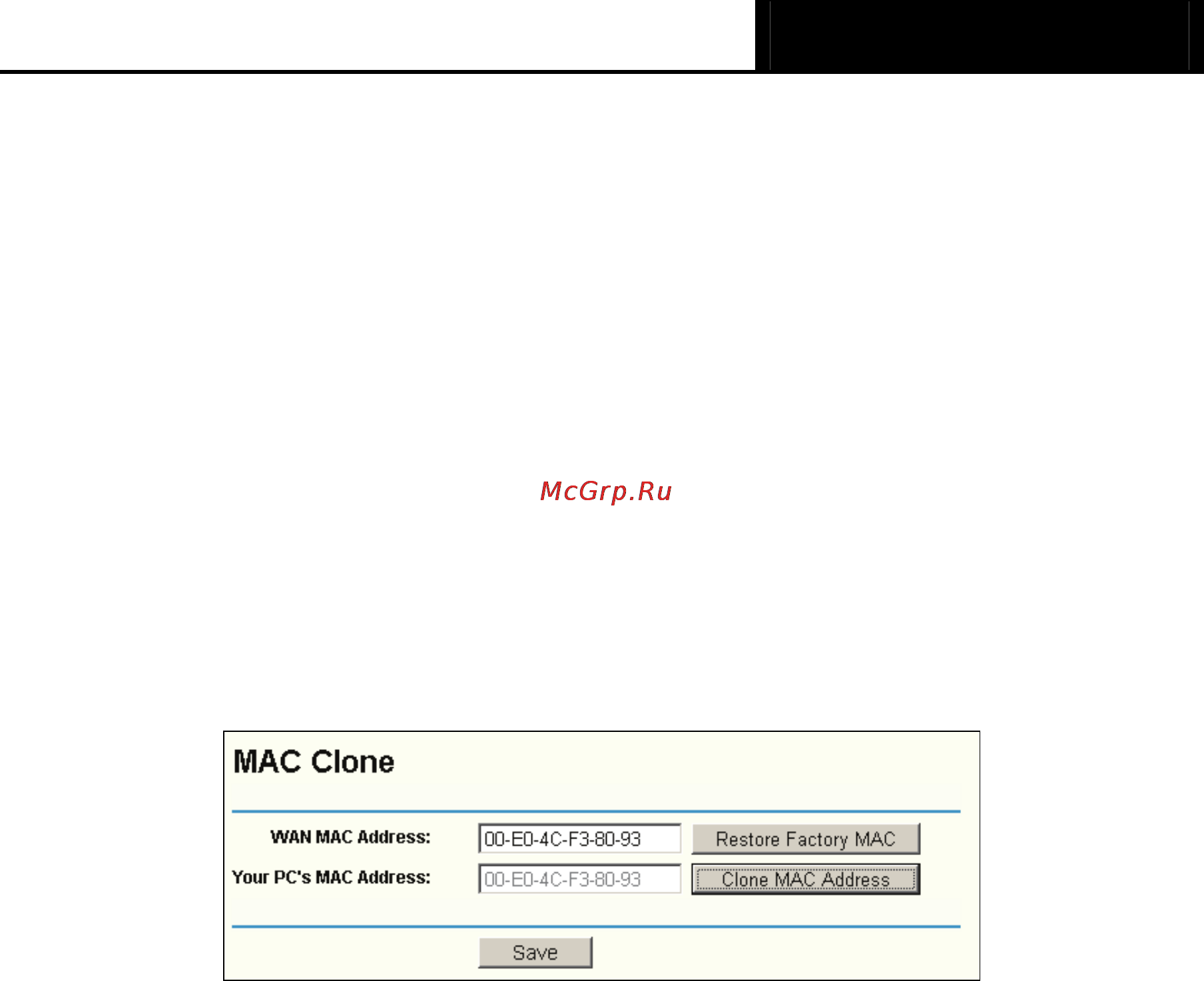

Figure 3 MAC Clone

3. I want to use Netmeeting, what do I need to do?

1) If you start Netmeeting as a sponsor, you don’t need to do anything with the router.

2) If you start as a responsor, you need configure Virtual Server or DMZ Host.

3) How to configure Virtual Server: Login to the router, click the “Forwarding” menu on the

left of your browser, and click " Virtual Servers" submenu. On the "Virtual Server" page,

enter “1720” into the blank below the “Service Port”, and your IP address below the IP

Address, assuming 192.168.1.169 for an example, remember to “Enable” and “Save”.
