TL-R860 Cable/DSL Router User Guide

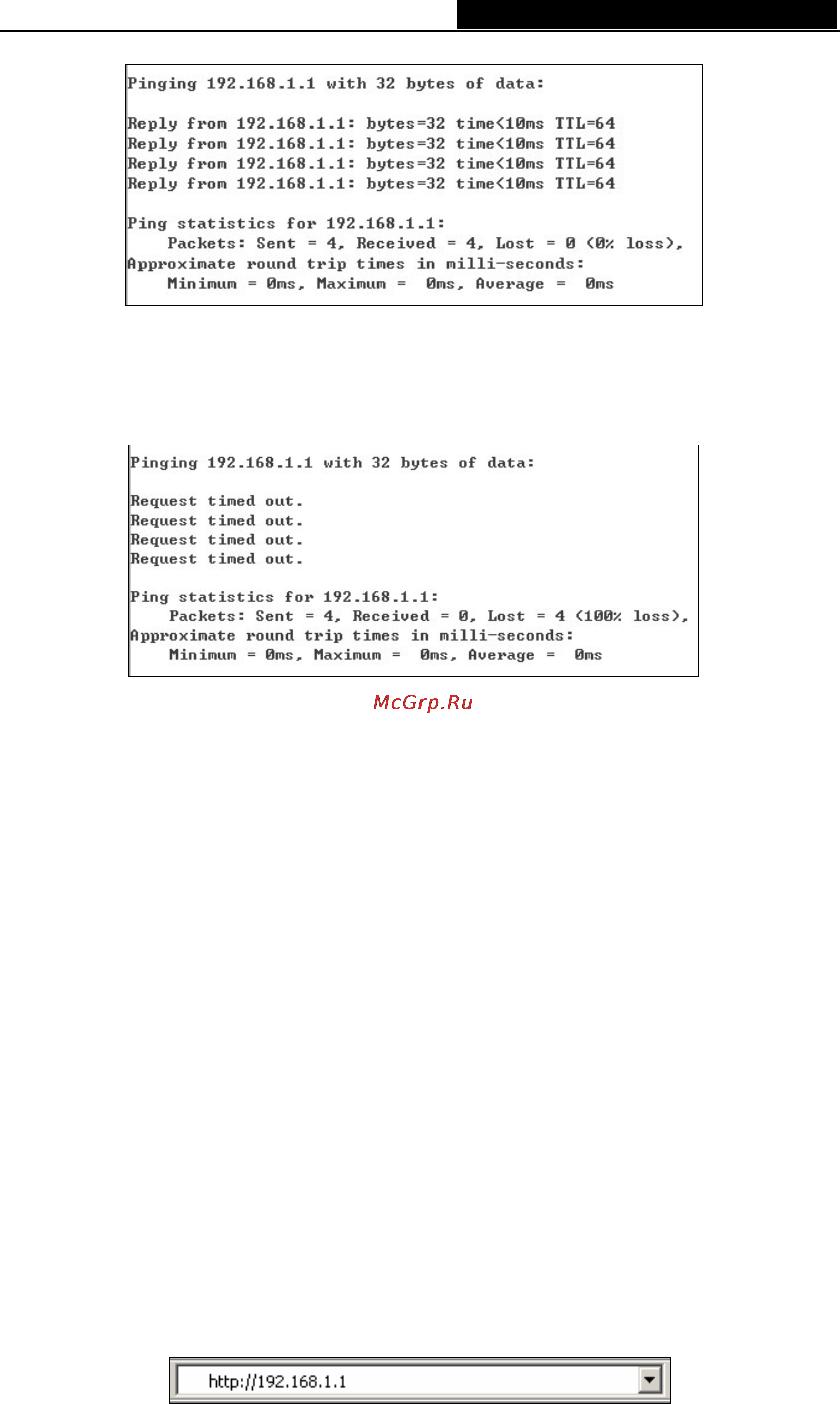

Figure 3-1 Successful result of Ping command
If the result displayed is similar to what is shown in Figure 3-1, the connection between
your PC and the router has been established.
Figure 3-2 Failed result of Ping command
If the result displayed is similar to what is shown in Figure 3-2, it means that your PC has
not connected to the router. If so, refer to the following steps for a solution:
1. Is the connection between your PC and the router correct?
)
Note:
The Link/Act LEDs of LAN port on the router and LEDs on your PC's adapter should be
lit.
2. Is the TCP/IP configuration for your PC correct?
)
Note:
If the router's IP address is 192.168.1.1, your PC's IP address must be within the range
of 192.168.1.2 ~ 192.168.1.254.
3.2 Quick Installation Guide
With a Web-based (Internet Explorer or Netscape
®
Navigator) utility, the TL-R860
Cable/DSL Router is easy to configure and manage. The Web-based utility can be used
on any Windows, Macintosh or UNIX OS with a web browser.
Connect to the router by typing http://192.168.1.1 in the address field of web browser.
Figure 3-3 Login to the router
- 8 -
