TL-R860 Cable/DSL Router User Guide

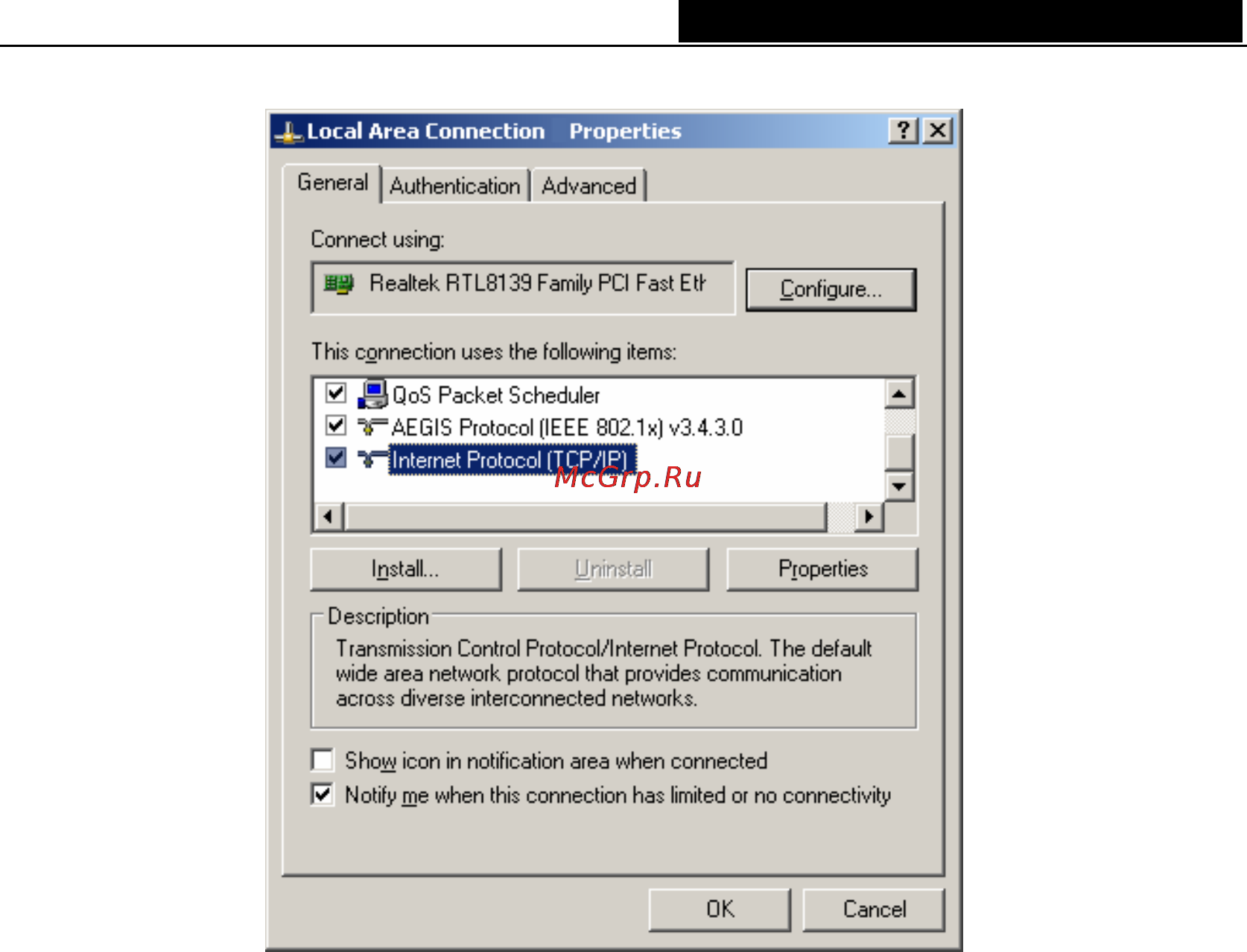

Figure B-54
5) The following TCP/IP Properties window will display and the IP Address tab is
open on this window by default.
Now you have two ways to configure the TCP/IP protocol below:
¾ Setting IP address automatically
Select Obtain an IP address automatically, Choose Obtain DNS server
automatically, as shown in the Figure below:
- 54 -
