TL-R860 Cable/DSL Router User Guide
1.3 Panel Layout
1.3.1 The Front Panel
The front panel of the TL-R860 consists of several LED indicators, which is designed to
indicate connections. Viewed from left to right. Table 1-1 describes the LEDs on the front
panel of the router.

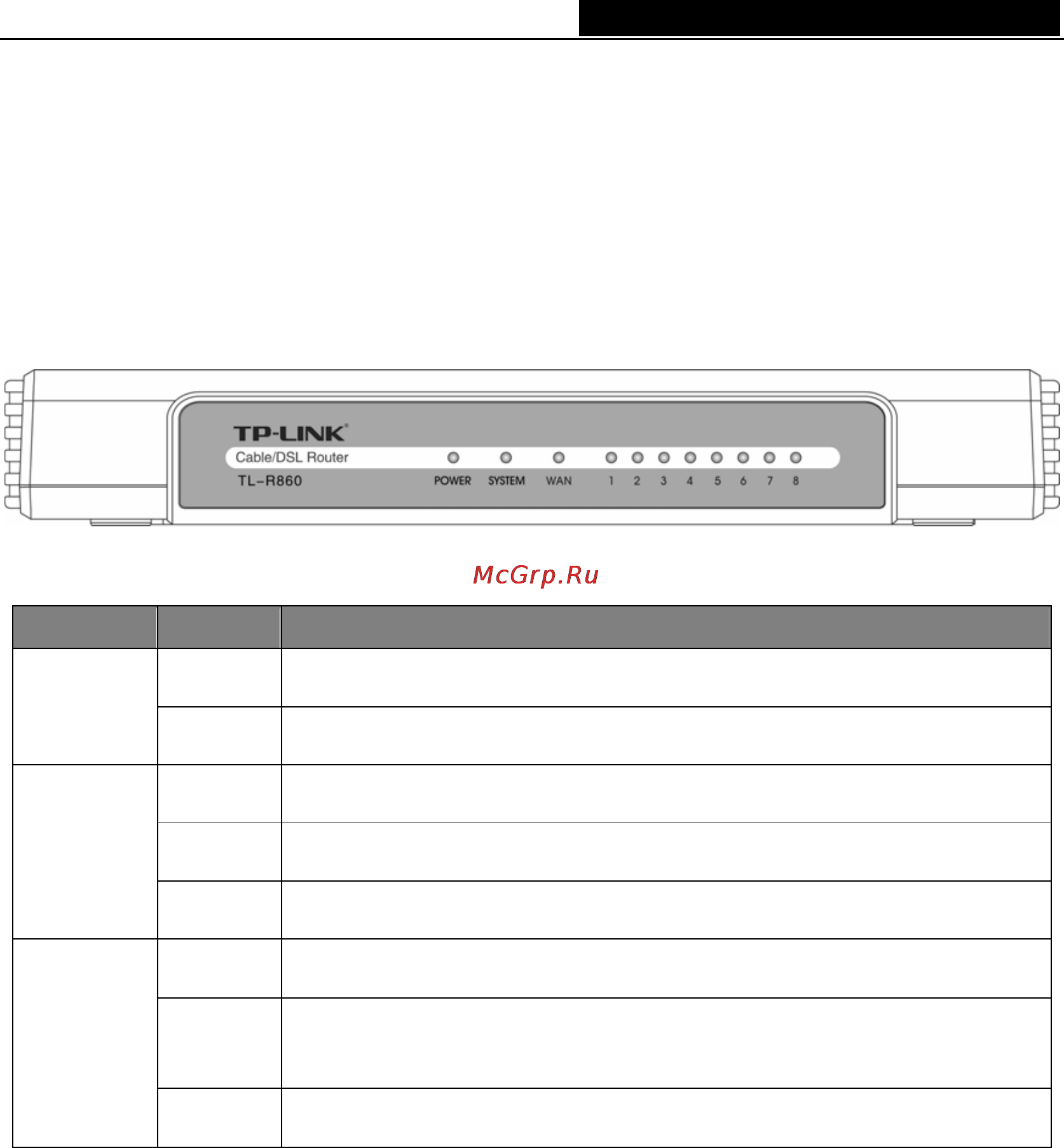

Figure 1-1 Front Panel sketch
Name Action Description
Off No Power
Power
On Power on
Off The Router has an error
On The Router is initializing
System
Flashing The Router is working properly
Off There is no device linked to the corresponding port
On
There are devices linked to the corresponding ports but no data
transmitted or received.
WAN/1-8
(LAN)
Flashing Sending or receiving data over corresponding port
Table 1-1 The LEDs description
1.3.2 The Rear Panel
The rear panel contains the following features. (Viewed from left to right:)
¾ RESET: Factory Default Reset button
There are two ways to reset the router's factory defaults:
1. Use the Factory Defaults function on System Tools -> Factory Defaults page
in the router's Web-based Utility.
2. Use the Factory Default Reset button: Press the Reset button for five seconds
and then wait for the router to reboot.
)
Note:
Ensure the router is powered on before it restarts completely.
¾ WAN: WAN RJ45 port for connecting the router to a cable, DSL modem or Ethernet
- 3 -
