TD-W8101G 54Mbps Wireless ADSL2+ Modem Router User Guide
35
connections, it is very flexible for user/host management, bandwidth allocation and resource
optimization. There are two types of VLAN as follows:
1) Port-Based VLAN: Each physical switch port is configured with an access list specifying
membership in a set of VLANs.
2) ATM VLAN: Using LAN Emulation (LANE) protocol to map Ethernet packets into ATM
cells and deliver them to their destination by converting an Ethernet MAC address into an
ATM address.

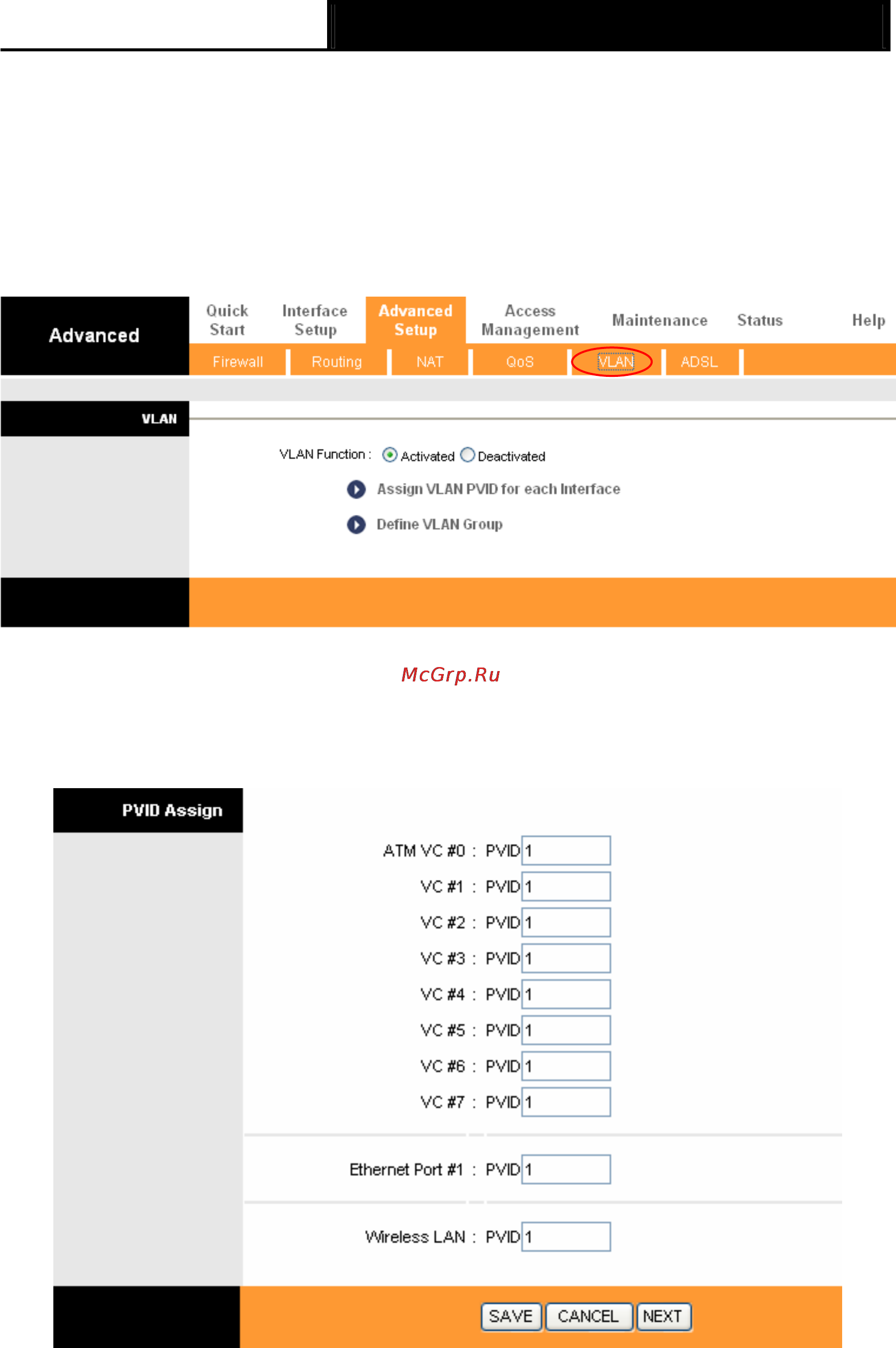

Figure 4-28
1) Assign VLAN PVID for each Interface
Click Assign VLAN PVID for each Interface in Figure 4-28, you can assign the PVID for each
interface in the next screen (shown in Figure 4-29).
Figure 4-29
¾ PVID: Each physical port has a default VID called PVID (Port VID). PVID is assigned to
untagged frames or priority tagged frames (frames with null (0) VID) received on this port.
