TD-W8901GB 54M Wireless ADSL2+ Modem Router User Guide
40

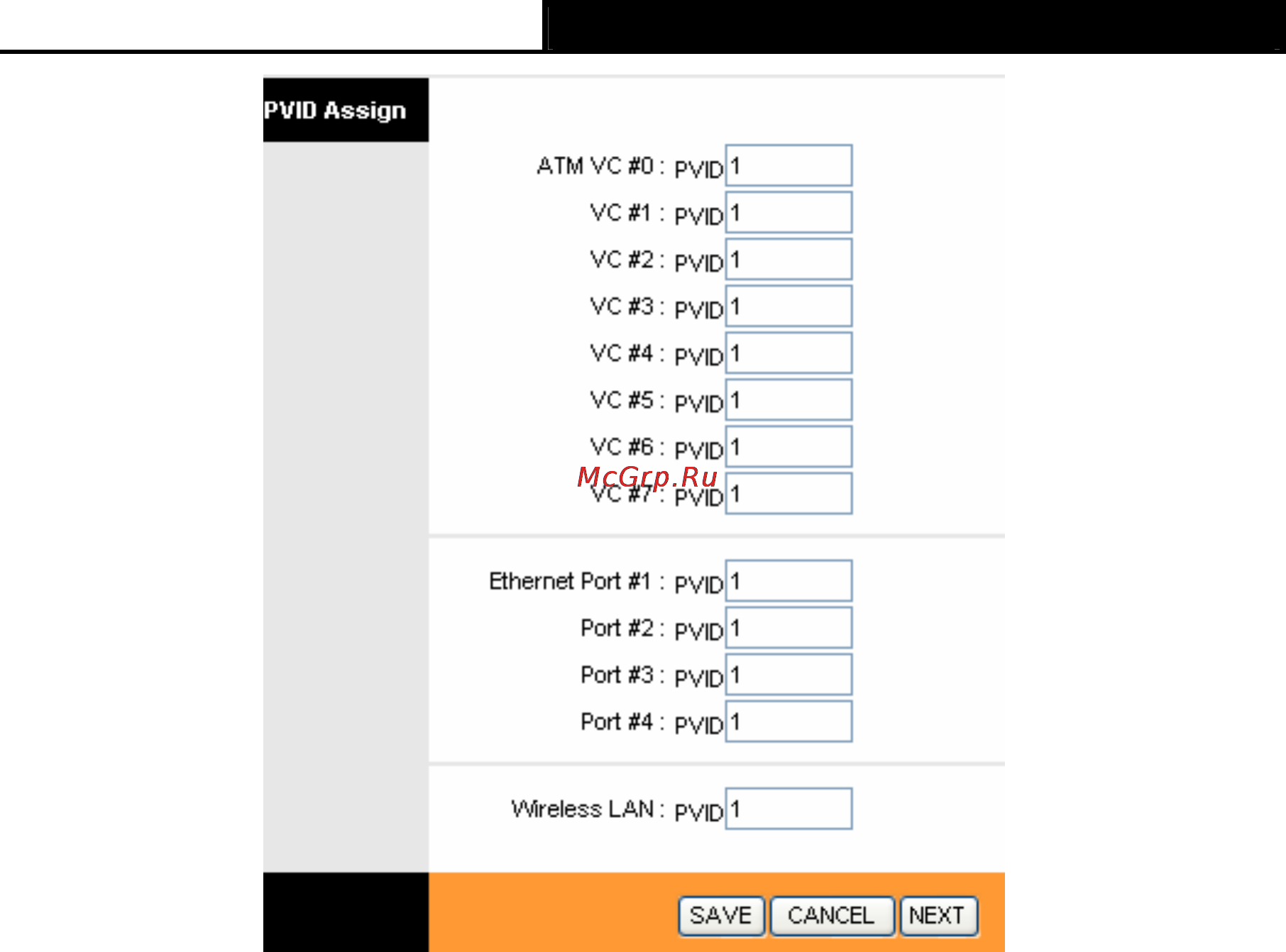

Figure 4-29
¾ PVID: Each physical port has a default VID called PVID (Port VID). PVID is assigned to
untagged frames or priority tagged frames (frames with null (0) VID) received on this port.
2) Define VLAN Group
Click Define VLAN Group in Figure 4-28, you can define VLAN groups in th
e next screen (shown
in Figure 4-30).
