TD-W8901GB 54M Wireless ADSL2+ Modem Router User Guide
39
can communicate as if they were attached to the same LAN, when in fact they are located on a
number of different LAN segments. Because VLANs are based on logical instead of physical
connections, it is very flexible for user/host management, bandwidth allocation and resource
optimization. There are two types of VLAN as follows:
Port-Based VLAN: Each physical switch port is configured with an access list specifying
membership in a set of VLANs.
ATM VLAN: Using LAN Emulation (LANE) protocol to map Ethernet packets into ATM cells and
deliver them to their destination by converting an Ethernet MAC address into an ATM address.

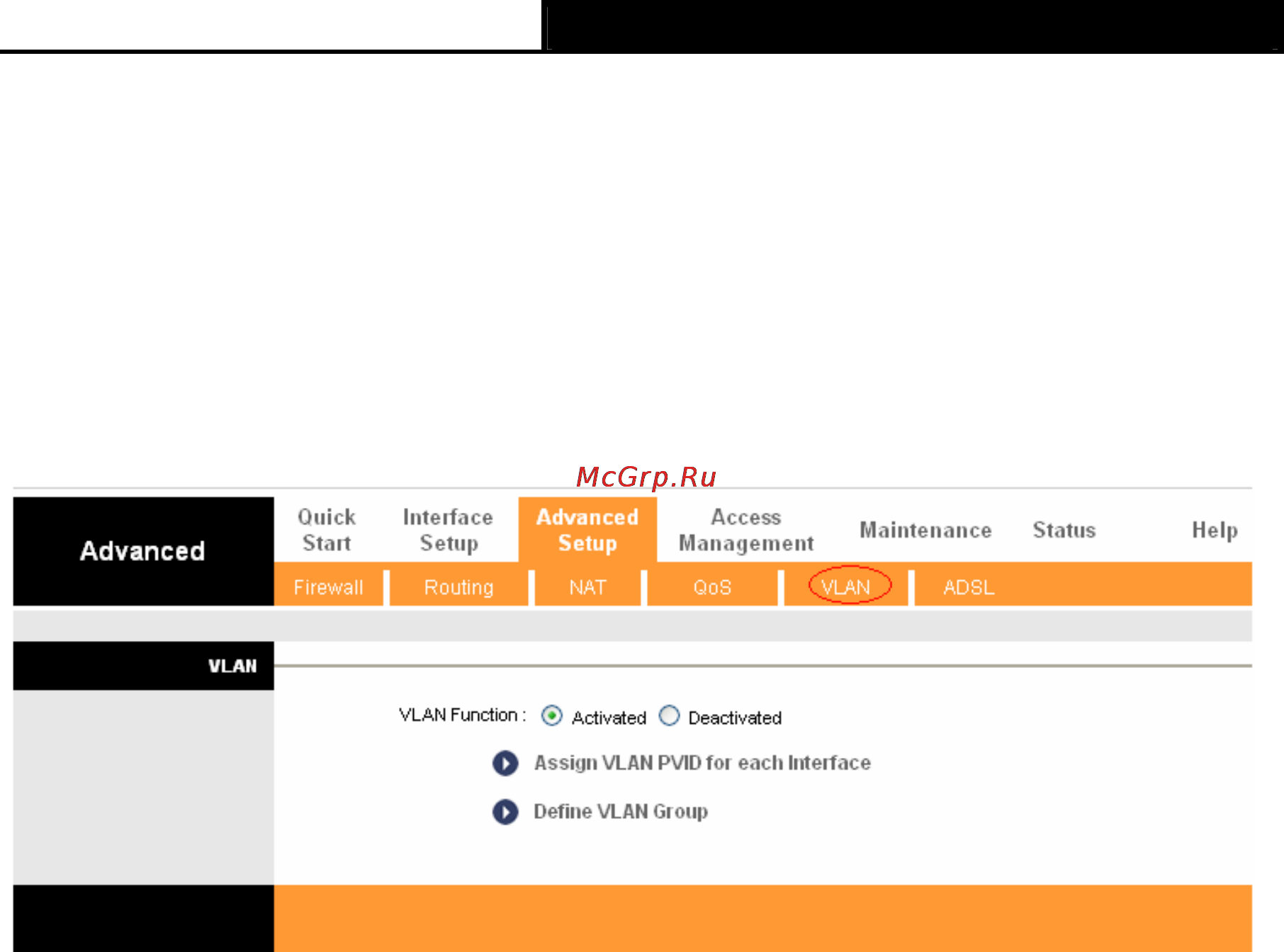

Figure 4-28
1) Assign VLAN PVID for each Interface
Click Assign VLAN PVID for each Interface in Figure 4-28, you can assign the PVID for each
interface in the next screen (shown in
Figure 4-29).
