Sony Cyber-Shot DSC-FX77 [8/116] Identifying the parts

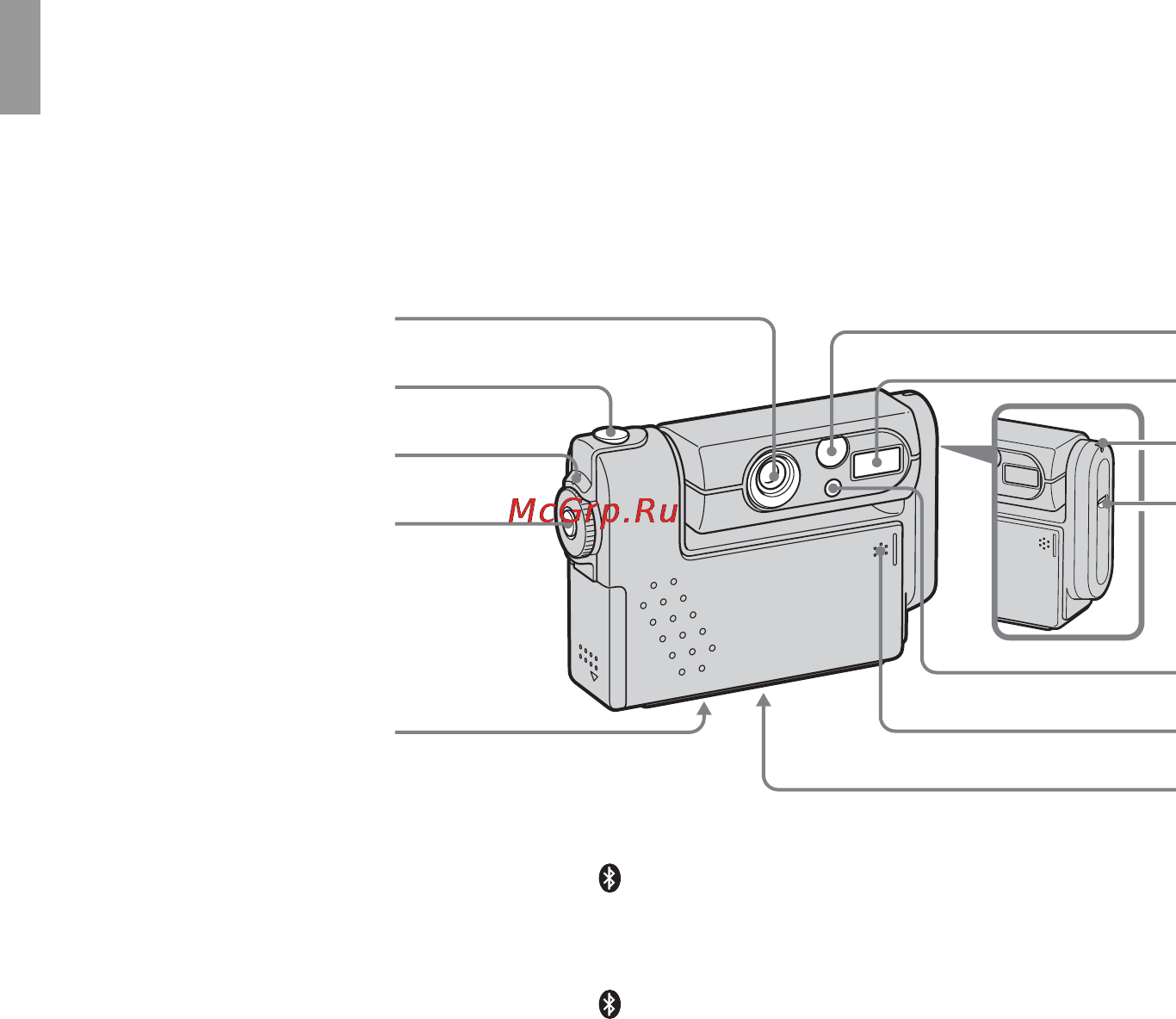

Identifying the parts

See the pages in parentheses for details of operation.

Camera

A Lens

B Shutter button (22)

C POWER lamp (16)

D POWER button (16)

E Tripod receptacle (bottom

surface)

F Finder window

G Flash (27)

H Bluetooth lamp (See the

Bluetooth function operating

instructions)

I Bluetooth button (See the

Bluetooth function operating

instructions)

J Self-timer lamp (26)/

AF illuminator (28, 101)

K Microphone

L Speaker (bottom surface)

• Use a tripod with a screw length of less than

5.5 mm (7/32 inch). You will be unable to

firmly secure the camera to tripods having

longer screws, and may damage the camera.

• Do not touch the microphone while recording.
