Leave at least 10cm of space at the front and rear of the Switch for
ventilation.
Install the Switch on a sturdy, level surface that can support its weight,
or in an EIA standard-size equipment rack. For information on rack
installation, see the next section, titled Rack Mounting.
When installing the Switch on a level surface, attach the rubber feet to
the bottom of each device. The rubber feet cushion the Switch and
protect the case from scratching.
Rack Mounting
The Switch can be mounted in an EIA standard-size, 19-inch rack,
which can be placed in a wiring closet with other equipment. Attach
the mounting brackets at the Switch’s front panel (one on each side),
and secure them with the provided screws.

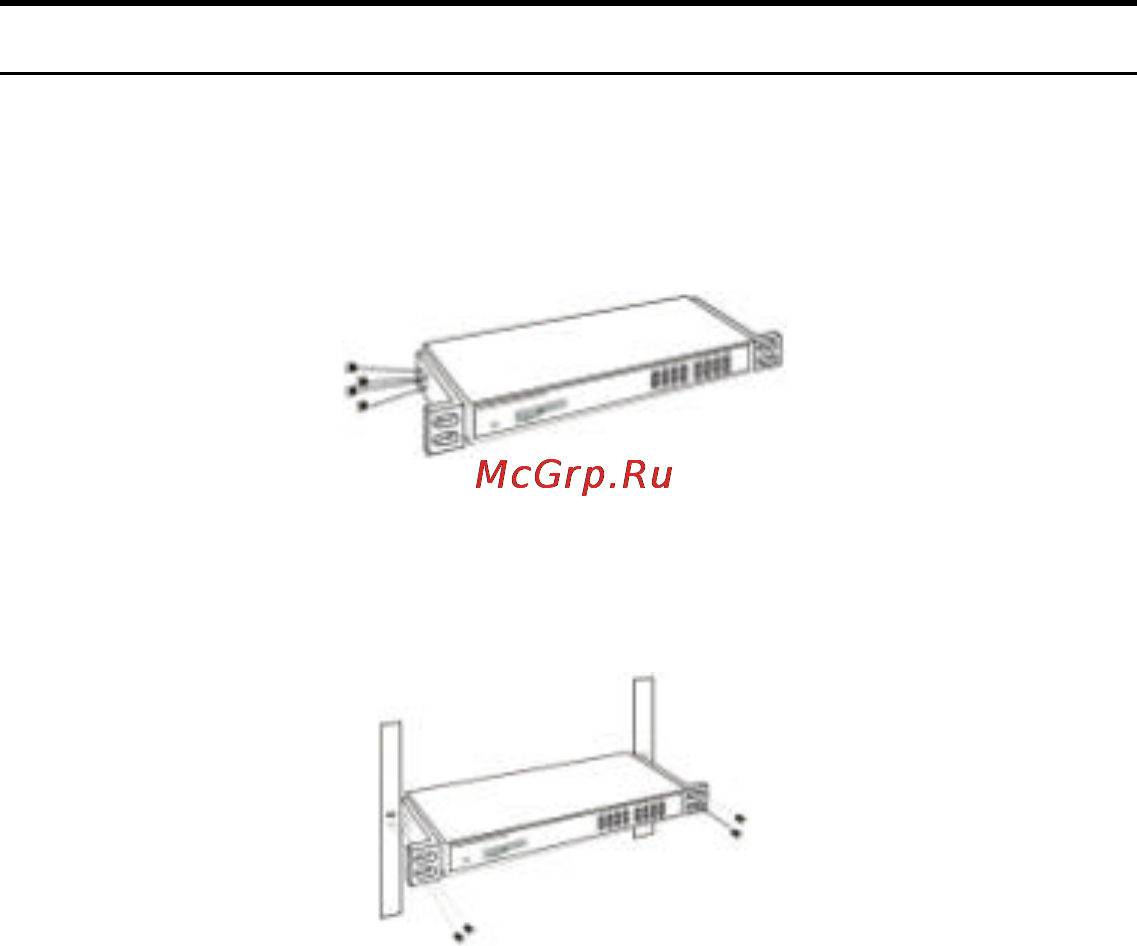

Figure 1. Combine the Switch with the provided screws.
Then, use screws provided with the equipment rack to mount each
switch in the rack.
Figure 2. Mount the Switch in the rack.
