D-Link DES-1316 [22/53] Device setting
![D-Link DES-1316 [22/53] Device setting](/views2/1043268/page22/bg16.png)
22

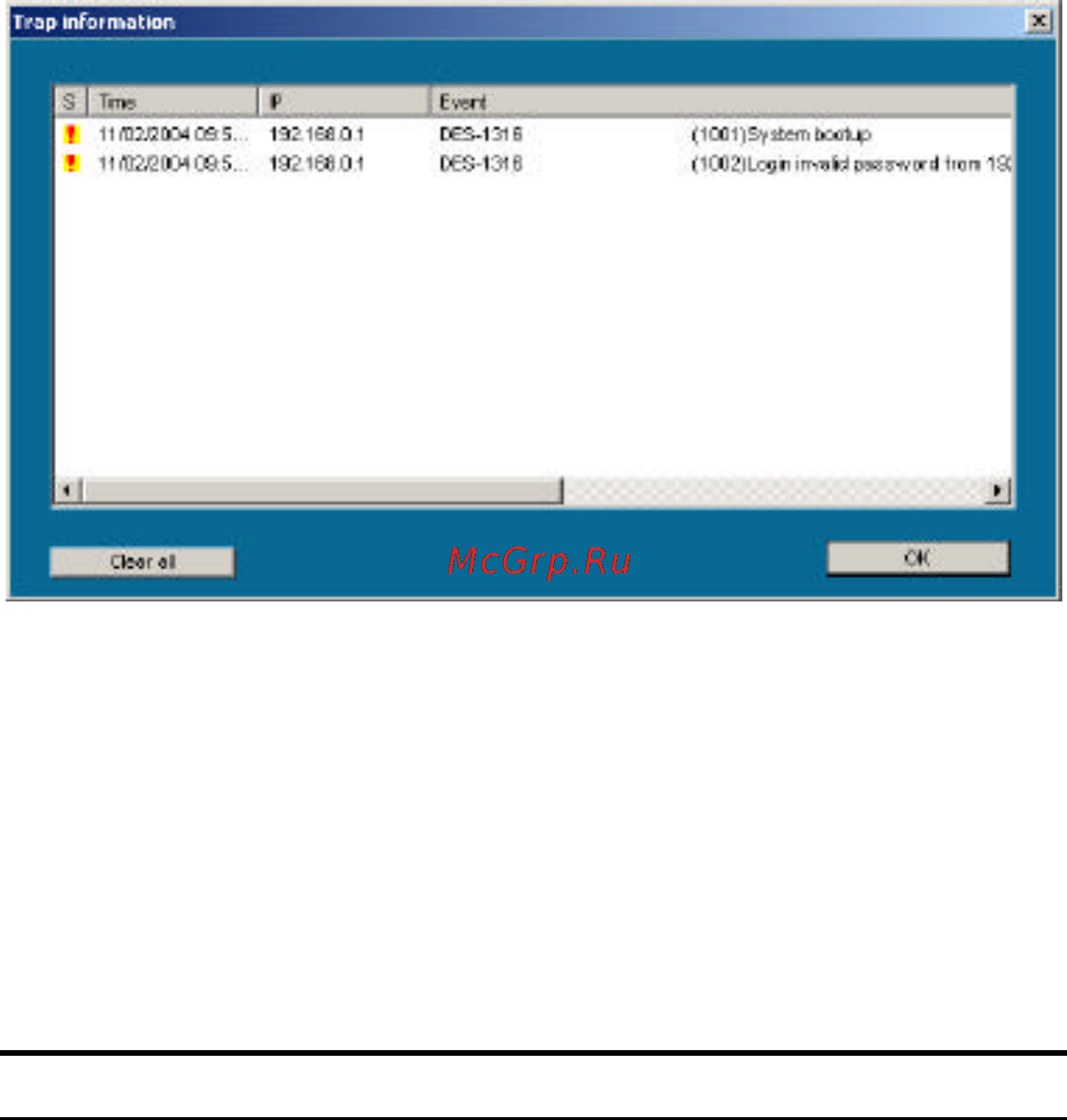

Figure 8.
Note: In order to receive Trap information, the Switch has to be configured
with Trap IP and Trap Events in the Web browser. These settings are available
in the Trap Setting Menu (see Page 40 for detail).
Add Item: To add a device to the Monitor List manually, enter the IP
Address of the device that you want to monitor.
Delete Item: To delete the device in the Monitor List.
Device Settings
You can set the device by using the function key in the Device Setting
Dialog box.
Configuration Setting: In this Configuration Setting, you can set the
IP Address, Subnet Mask, Gateway, Set Trap to (Trap IP Address),
System name, and Location.
