To change the port settings, click on the ID parameter to enter the
selected port to configure its Speed/Duplex and Flow control.

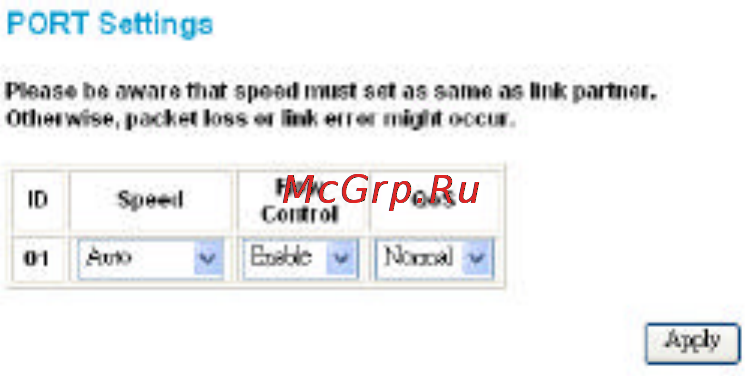

Figure 17.
Speed/Duplex:
This setting has six modes— 100M Full, 100M Half, 10M Full, 10M
Half, Auto, and Disable— for speed/duplex or to disable the port.
Flow Control:
This setting determines whether or not the Switch will be handling
flow control. Set FlowCtrl to Enable for avoiding data transfer
overflow. If it is set to Disable, there is either no flow control or other
hardware/software management.
When the 10/100M port is set to full-duplex mode, then the flow
control will be automatically set to disable; and if the 10/100M port is
set to half-duplex mode, the flow control will be automatically set to
enable.
QoS:
In some ports that need to have a high priority to manage the data
transfer, QoS should be changed. Set the port’s QoS to high to
determine the port will always transfer their data first.
