709/709H/710
Calibration Manual
12
Calibration Adjustment Procedure
The Product features electronic calibration. There are no mechanical adjustments and
calibration adjustment is done with its case closed. The calibration adjustment is done
with the keypad. Use the display to guide you through the calibration process.
Note
Make sure that the Product has new batteries before you start the
calibration adjustment procedure. Calibration adjustment will not function
properly if the low battery indicator is on.
The calibration adjustment of the Product consists of three independently-calibrated
ranges: mA source, mA measure, and voltage measure. To enter calibration mode, hold
and down as you turn on the Product. The first mode to be calibrated is mA
measure.
Use the test equipment listed in Table Error! Reference source not found. for
calibration. If the equipment listed in Table Error! Reference source not found. is not
available, then equipment with the same or better specifications can be substituted.
mA Measure Mode
To calibrate the mA measure mode:
1. Use the double banana jack cable to attach the current output of the Calibrator to the
jacks of the Product.
2. Hold and down as you turn on the Product to enter calibration mode. The

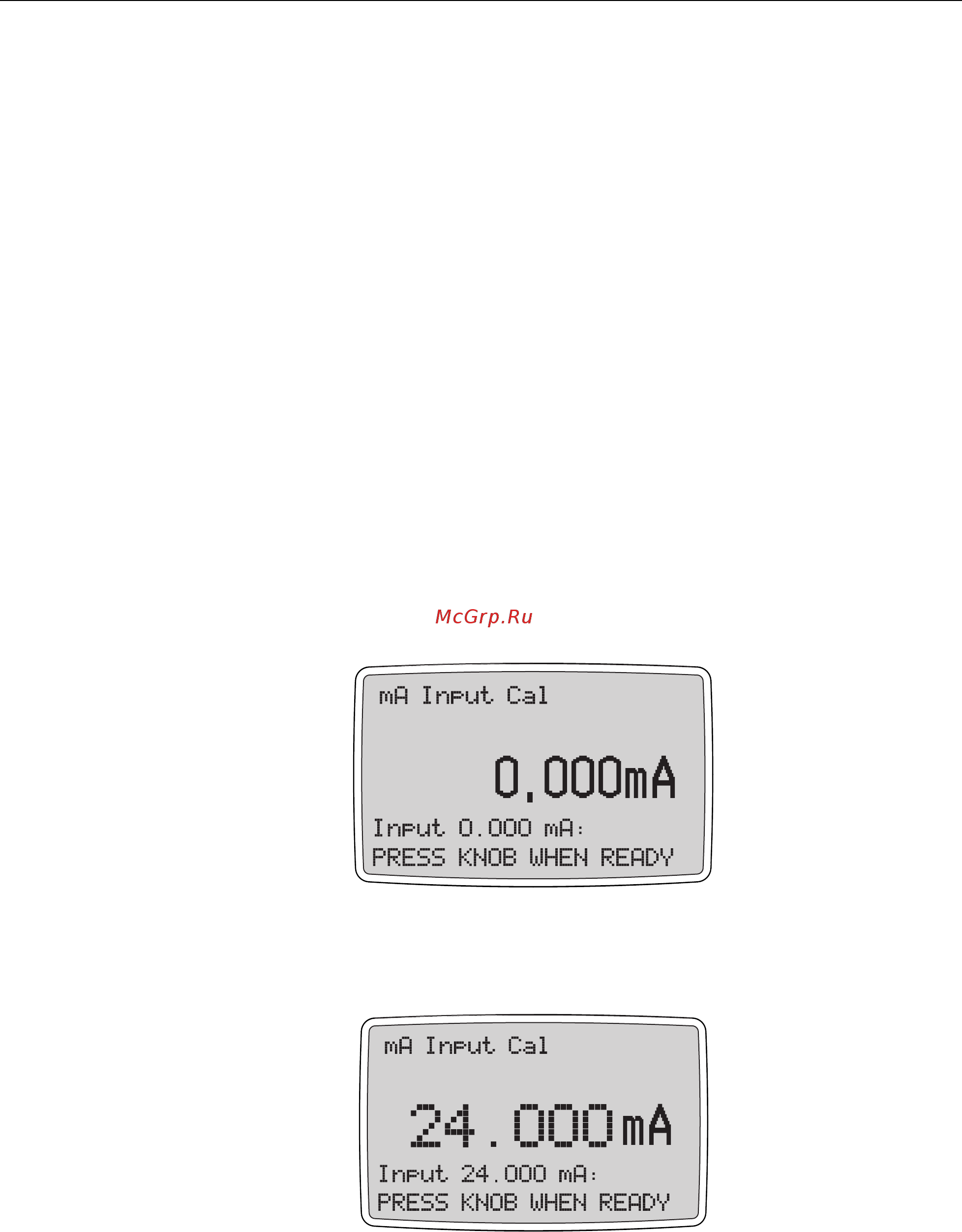

display should show:
hid001.eps
3. Output 0 mA from the Calibrator. After the output is stable, push the knob to continue.
As the Product takes readings, the screen shows ------- . When the readings are
complete, the screen should look as shown below.
hid002.eps
