Руководство по калибровке Страница: 23

Fluke 714B [23/50] Rtd thermocouple calibrator

RTD/Thermocouple Calibrator

712B Performance Verification

Fluke 712B

5522A

CALIBRATOR

Fluke 8508A

Fluke 5522A

hwp004.eps

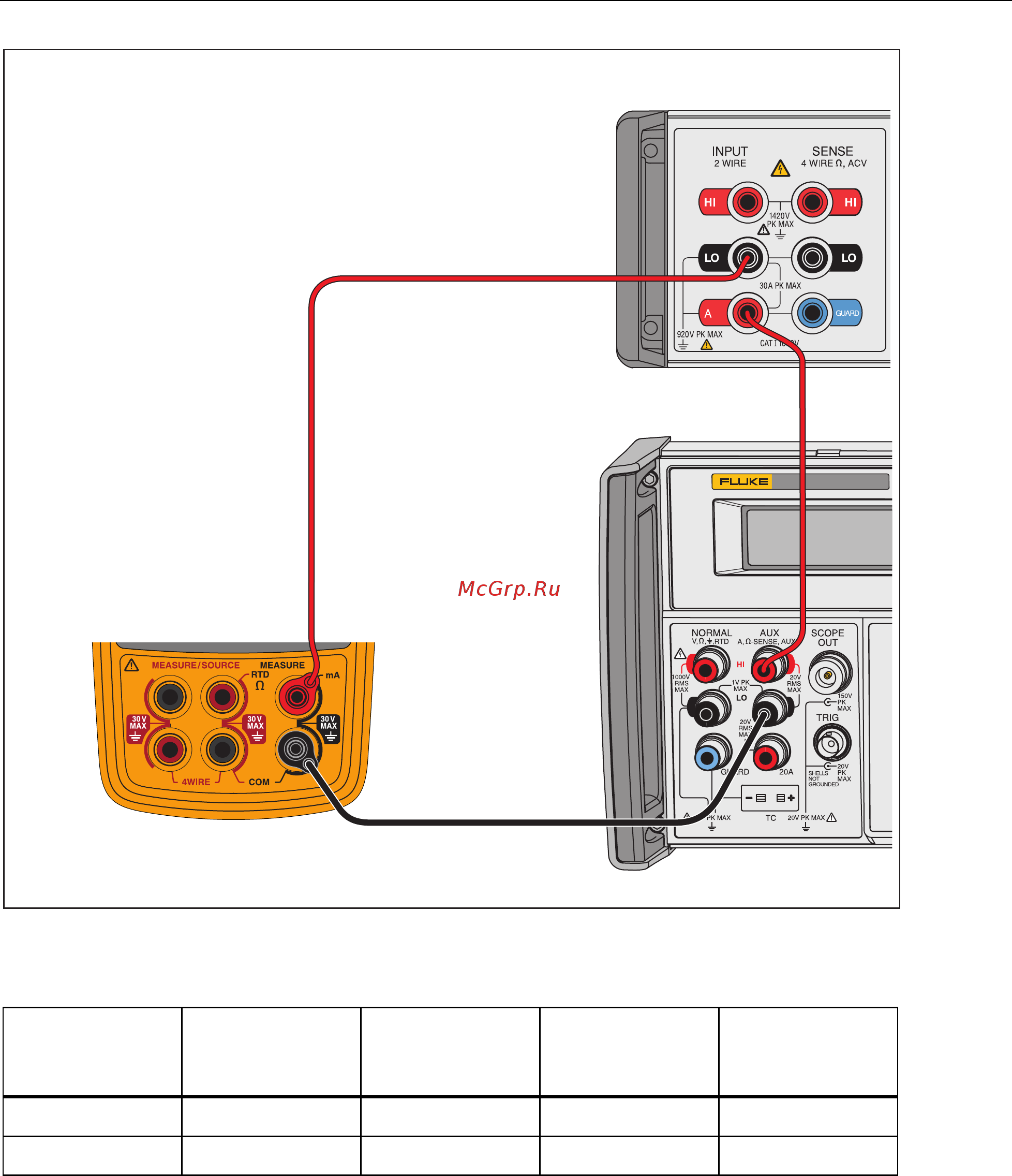

Figure 5. Verify 712B mA Measure

Table 7. 712B mA Measure Limits

DC Current

Display from

8508A (mA)

1 Yr. Lower Limit

(mA)

1 Yr Upper Limit

(mA)

2 Yr. Lower Limit

(mA)

2 Yr Upper Limit

(mA)

0.100 0.098 0.102 0.096 0.104

19.000 18.996 19.004 18.992 19.008
