Fluke 714B [32/50] Adjust 0 5 ma trigger current

712B/714B

Calibration Manual

Adjust 0.25 mA Trigger Current

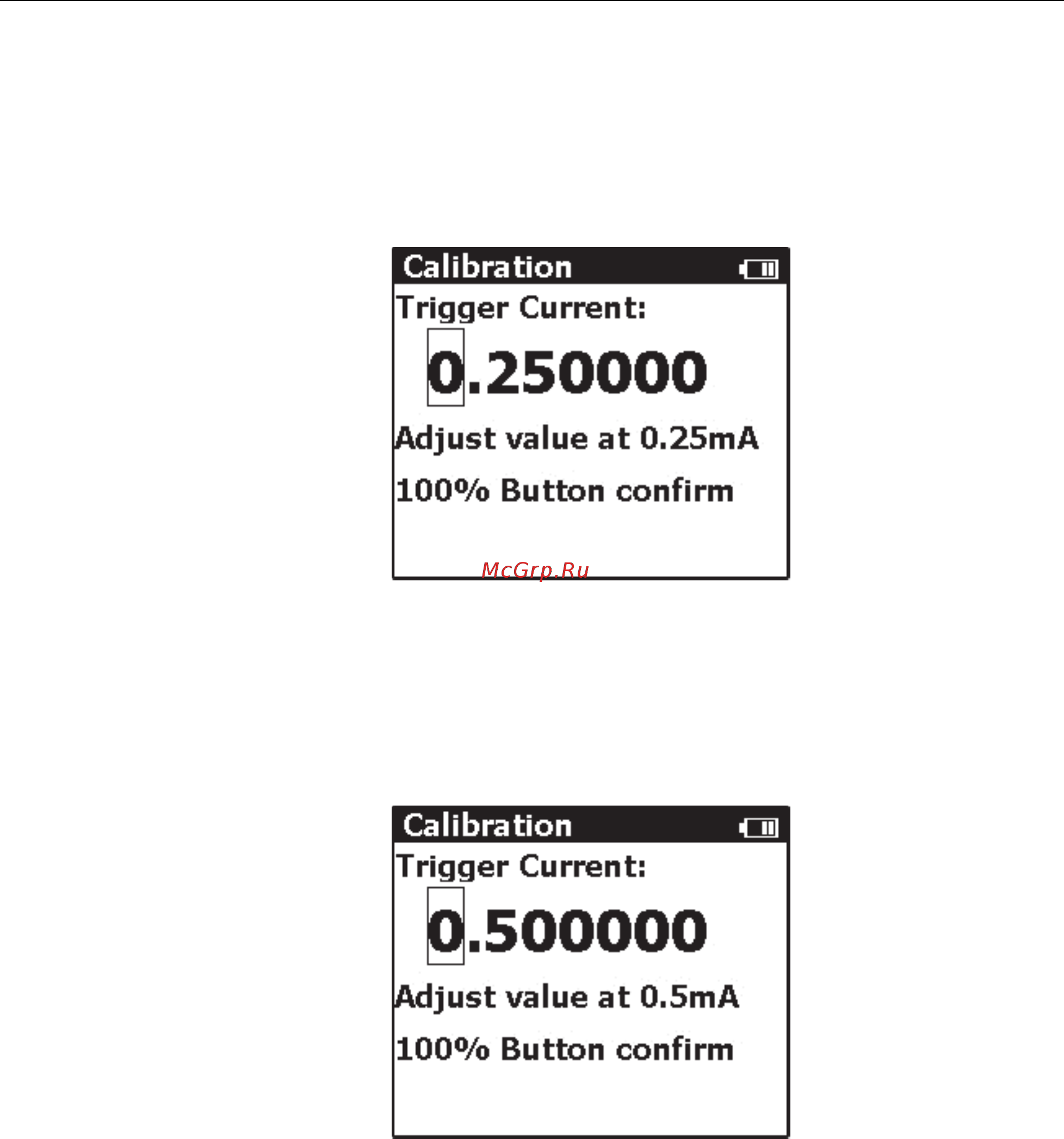

1. Push  on the 712B to enter 0.25 mA trigger current calibration mode.

2. Wait approximately 15 seconds until the 8508A shows a stable reading.

3. Input the reading into the 712B.

4. Confirm the input.


Adjust 0.5 mA Trigger Current

1. Push  on the 712B to enter 0.5 mA trigger current calibration mode.

2. Wait approximately 15 seconds until the 8508A shows a stable reading.

3. Input the reading into the 712B.

4. Confirm the input.
