Fluke 714B [41/50] Adjust mv measure

RTD/Thermocouple Calibrator

714B Calibration Adjustment

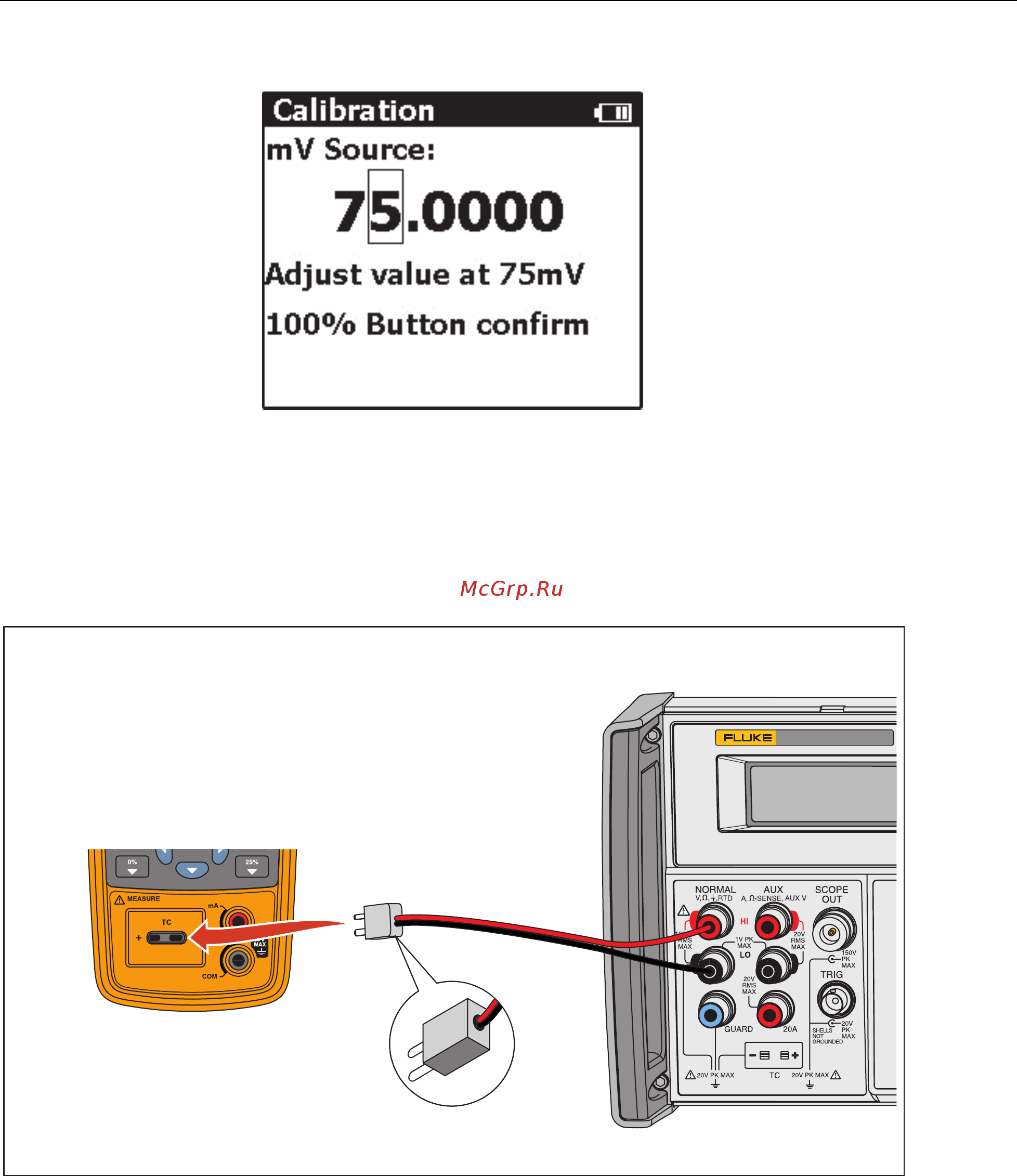

4. Push  to enter the 75 mV source calibration mode.


5. Input the new reading on the 8508A to the 714B.

6. Push  to confirm.

Adjust mV Measure

1. Connect the 714B TC mini plug to the 5522A with pure copper cables, as

shown in Figure 16.

5522A

CALIBRATOR

Fluke 5522A

Fluke 714B

Pure Copper TC Miniplug

Pure Copper Cables

hwp007.eps

Figure 16. Adjust 714B mV Measure

The 5522A outputs the value (Voltage

-10mV

Setting).
