714B Calibration Adjustment

Fluke 9101-256

Fluke 714B

J TYPE TC Sensor

hwp008.eps

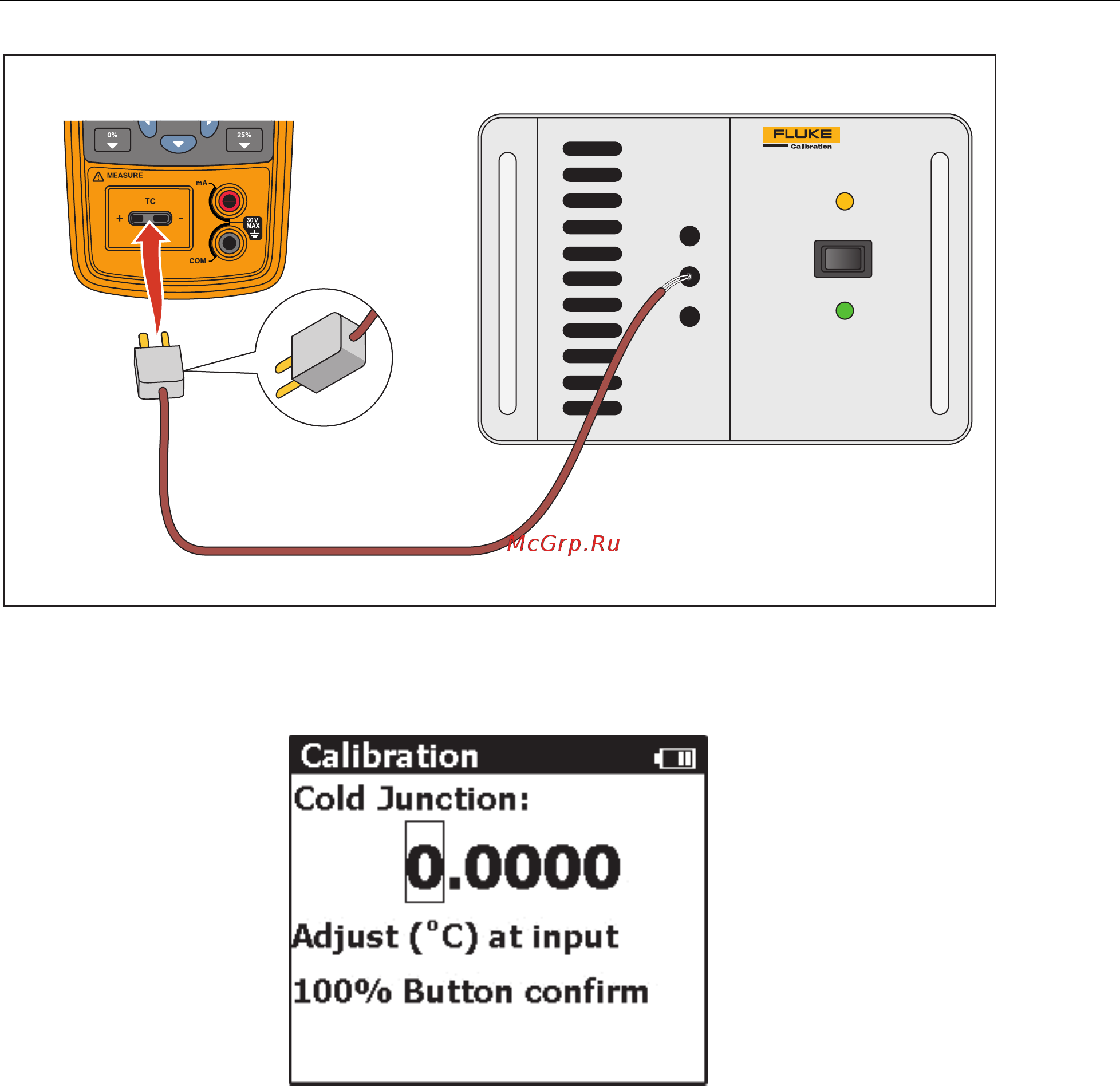

Figure 17. Connect the 714B to the Fluke 9101-256

2. After the J type thermocouple is inserted, wait approximately 5 minutes for

the temperature reading to stabilize.


3. Push  to calibrate the cold junction temperature.
