Please remember that D-Link AirXtremeG wireless devices are pre-configured to
connect together, right out of the box, with their default settings.
You will need broadband Internet access (a Cable or DSL-subscriber line into
your home or office)
Consult with your Cable or DSL provider for proper installation of the modem
Connect the Cable or DSL modem to the DI-624 Wireless Broadband Router
(see the printed Quick Installation Guide included with your router.)
If you are connecting a desktop computer to your network, install the D-Link
AirPlus XtremeG DWL-G520 wireless PCI adapter into an available PCI slot on
your desktop computer. You may also install the DWL-520+, or the DWL-520.
(See the printed Quick Installation Guide included with the network adapter.)
Install the drivers for the D-Link DWL-G650 wireless Cardbus adapter into a
laptop computer.
(See the printed Quick Installation Guide included with the DWL-G650.)
Getting Started

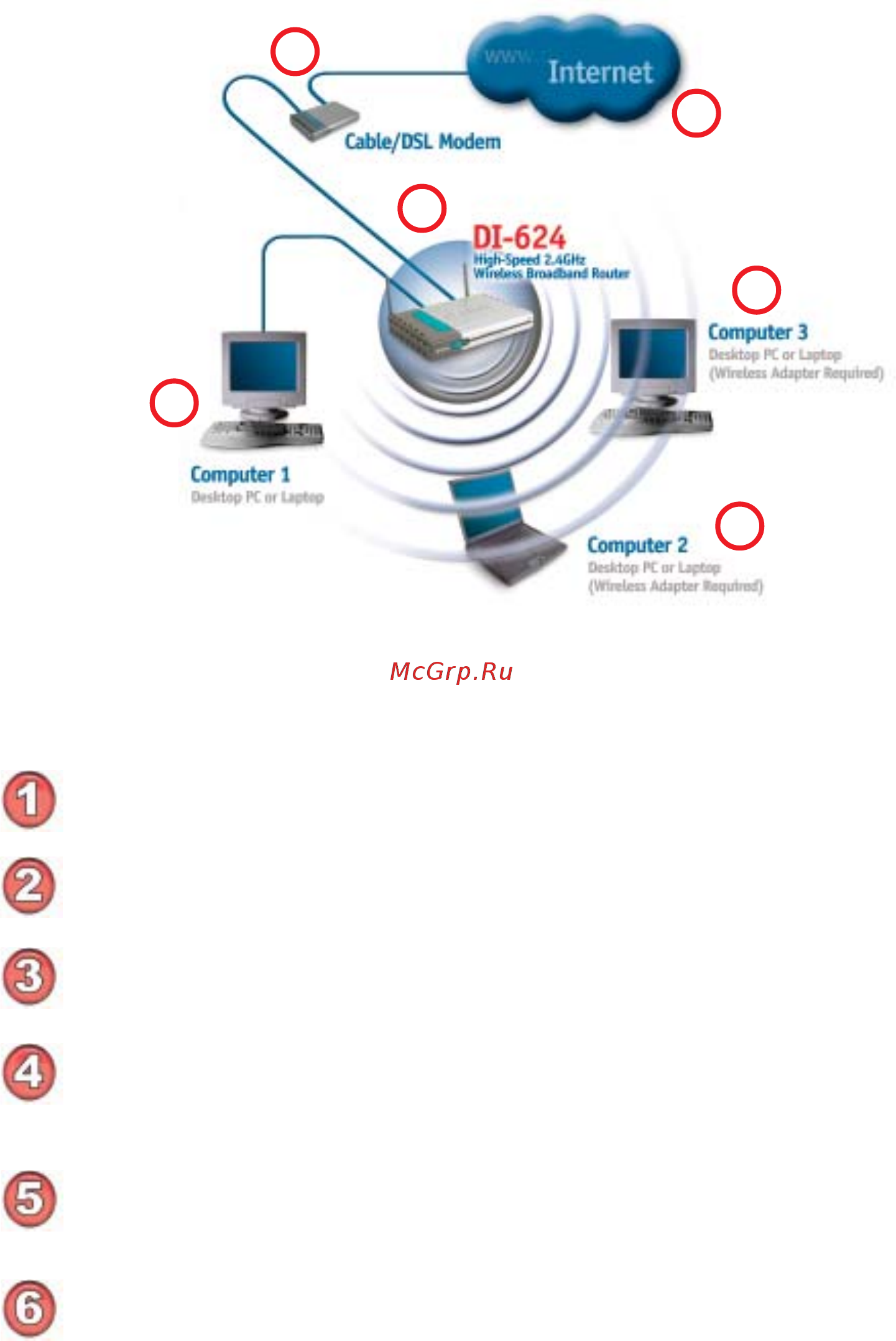

For a typical wireless setup at home (as shown above), please do the
following:
Setting up a
Wireless
Infrastructure
Network
1
2
3
4
Install the drivers for the D-Link DFE-530TX wireless Cardbus adapter into a
desktop computer. The four Ethernet LAN ports of the DI-624 are Auto MDI/MDIX
and will work with both Straight-Through and Cross-Over cable.
(See the printed Quick Installation Guide included with the DFE-530TX.)
