33
Using the Configuration Menu

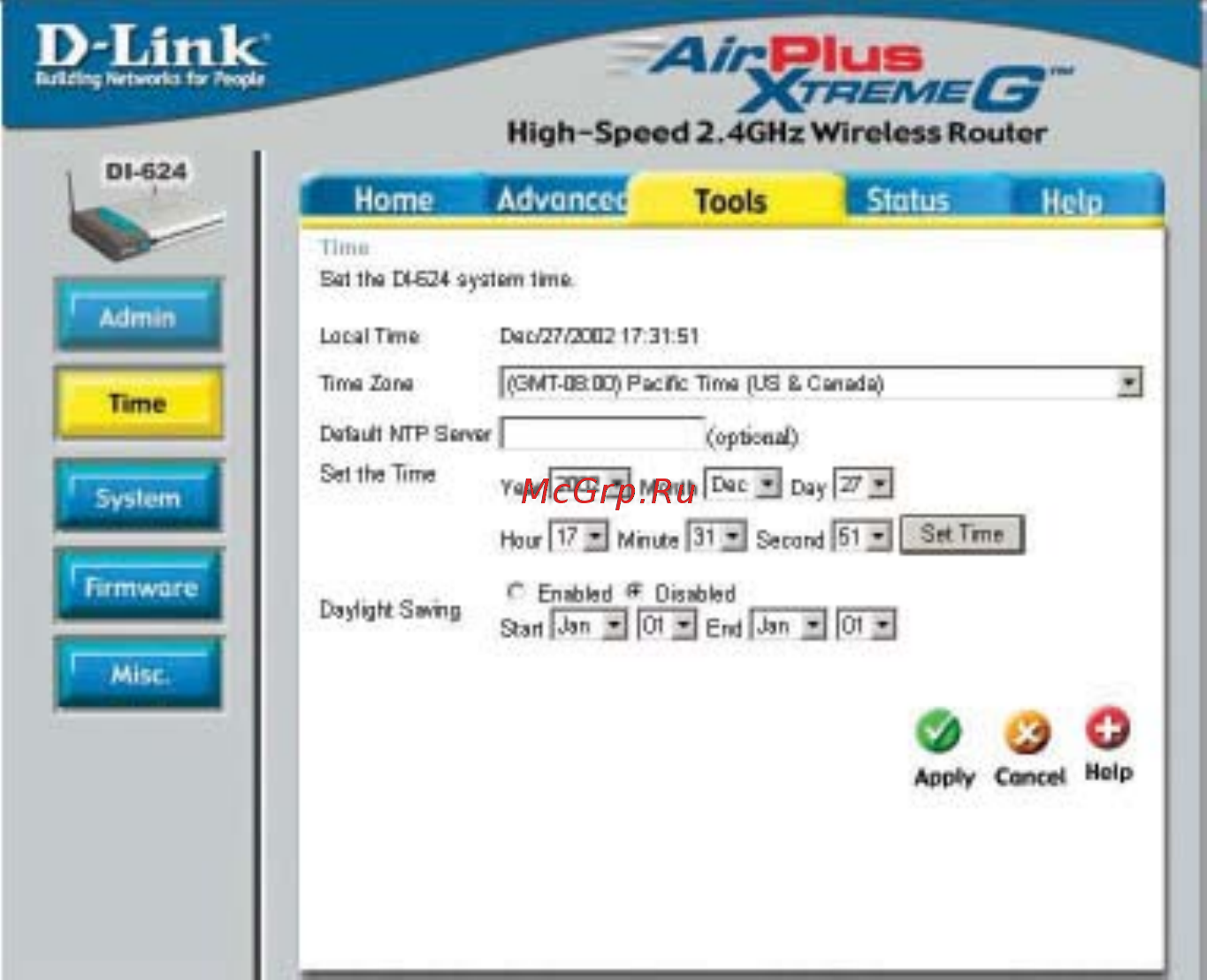

Tools > Time
Time Zone-
Select the Time Zone from the pull-down menu.
Daylight
Saving-
To select Daylight Saving time manually, select enabled or dis-
abled, and enter a start date and an end date for daylight saving
time.
Set the Time-
To manually input the time, enter the values in these fields for
the Year, Month, Day, Hour, Minute, and Second. Click Set Time.
Default
NTP Server-
NTP is short for Network Time Protocol. NTP synchronizes com-
puter clock times in a network of computers.
This field is optional.
Apply-
Click Apply to save the changes.
