54
Networking Basics
Selecting a Dynamic IP Address with Macintosh OSX

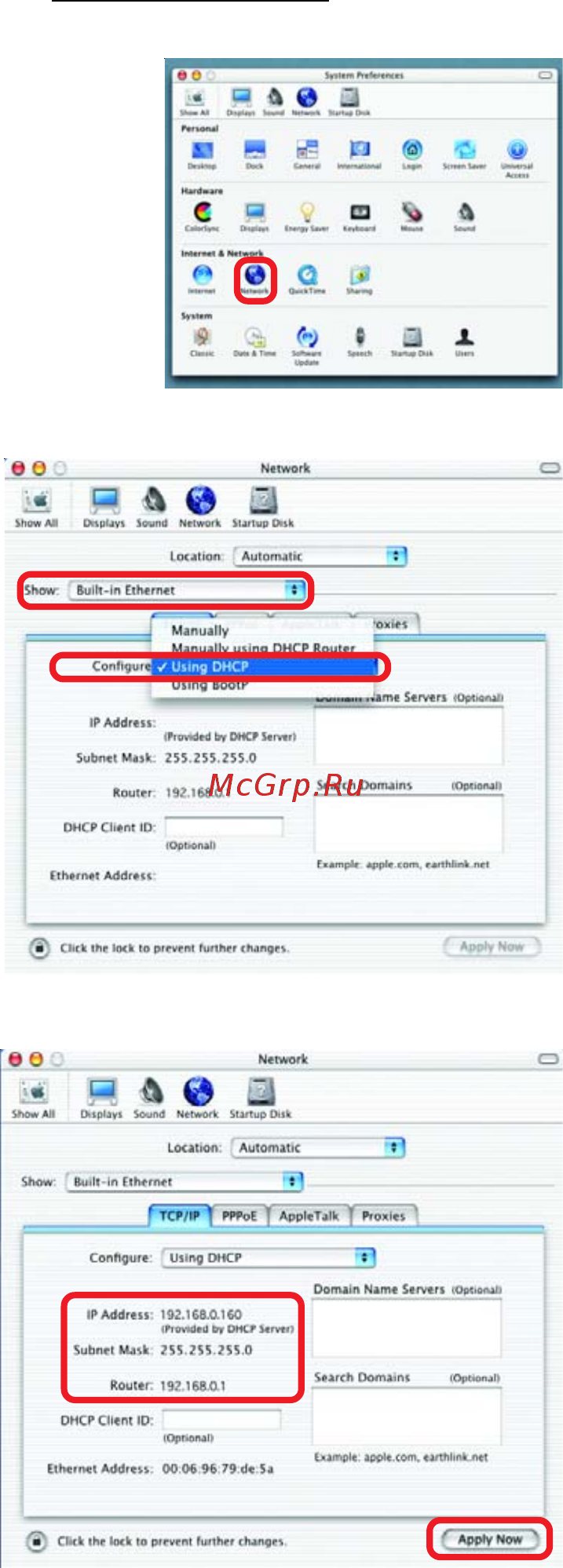

Go to the Apple Menu and se-
lect System Preferences
Click on Network
Select Built-in Ethernet in
the Show pull-down menu
Select Using DHCP in the
Configure pull-down menu
Click Apply Now
The IP Address, Subnet
mask, and the Router’s IP
Address will appear in a
few seconds
