TL-MR3040 Portable Battery Powered 3G/4G Wireless N Router

-106-

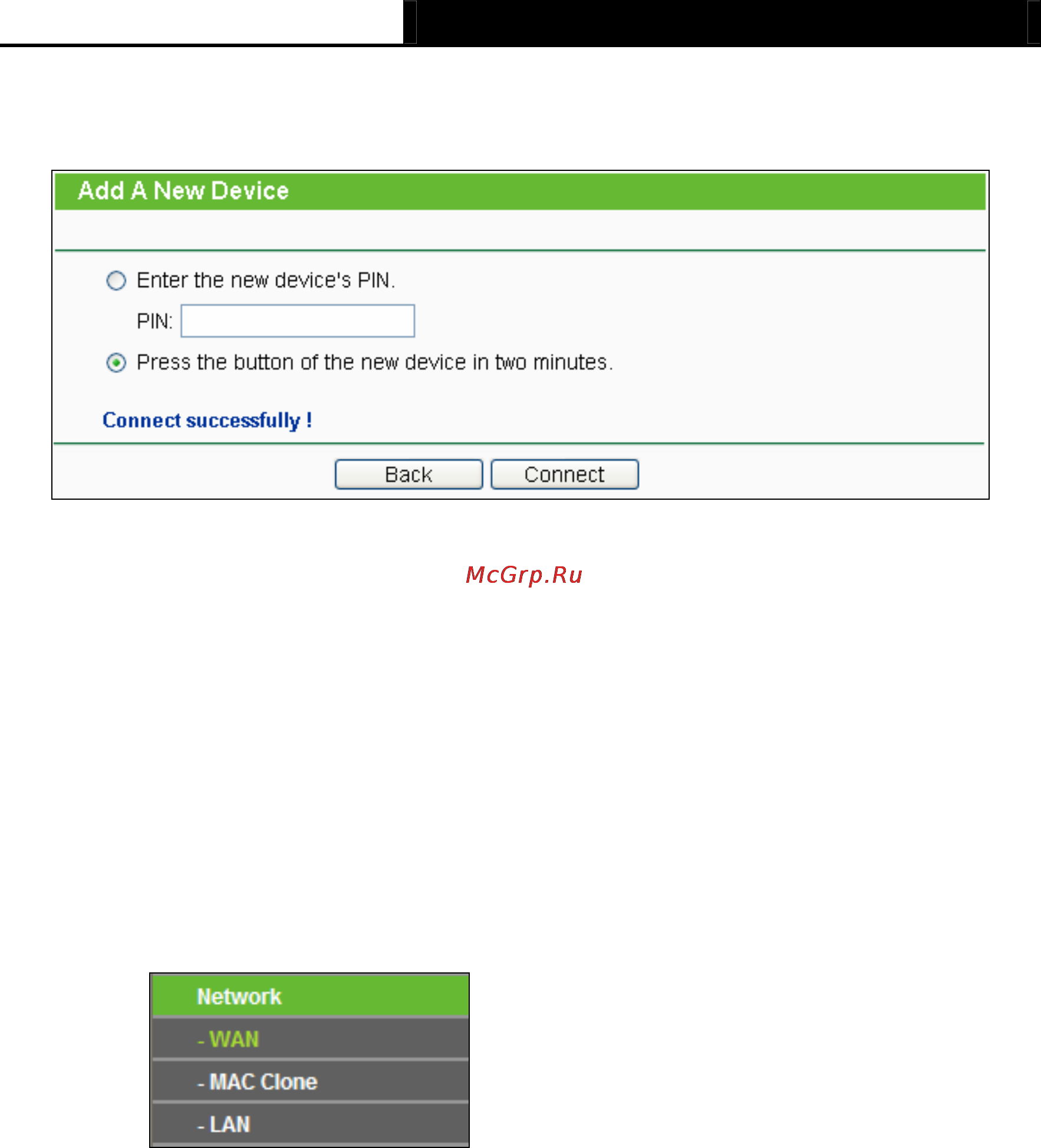

You will see the following screen when the new device has successfully connected to the

network.

Figure 5-5

)

Note:

1) The WPS function cannot be configured if the Wireless function of the AP is disabled.

Please make sure the Wireless function is enabled before configuring the WPS.The WPS

LED on the AP will light green for five minutes if the device has been successfully added to

the network.

2) The WPS function cannot be configured if the Wireless function of the AP is disabled.

Please make sure the Wireless function is enabled before configuring the WPS

5.5 Network

Figure 5-6 the Network menu

There are three submenus under the Network menu (shown in

Figure 5-6): WAN, MAC Clone

and LAN. Click any of them, and you will be able to configure the corresponding function.

5.5.1 WAN

Choose menu “Network→WAN”, and then you can configure the IP parameters of the WAN on

the screen below.

1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the router will

automatically get IP parameters from your ISP. You can see the page as follows (Figure

5-7):
