TL-MR3040 Portable Battery Powered 3G/4G Wireless N Router

-56-

4.7.3 Address Reservation

Choose menu “DHCP→Address Reservation”, you can view and add a reserved addresses

for clients via the next screen (shown in Figure 4-37).When you specify a reserved IP address

for a PC on the LAN,

that PC will always receive the same IP address each time when it

accesses the DHCP server. Reserved IP addresses should be assigned to the servers that

require permanent IP settings.

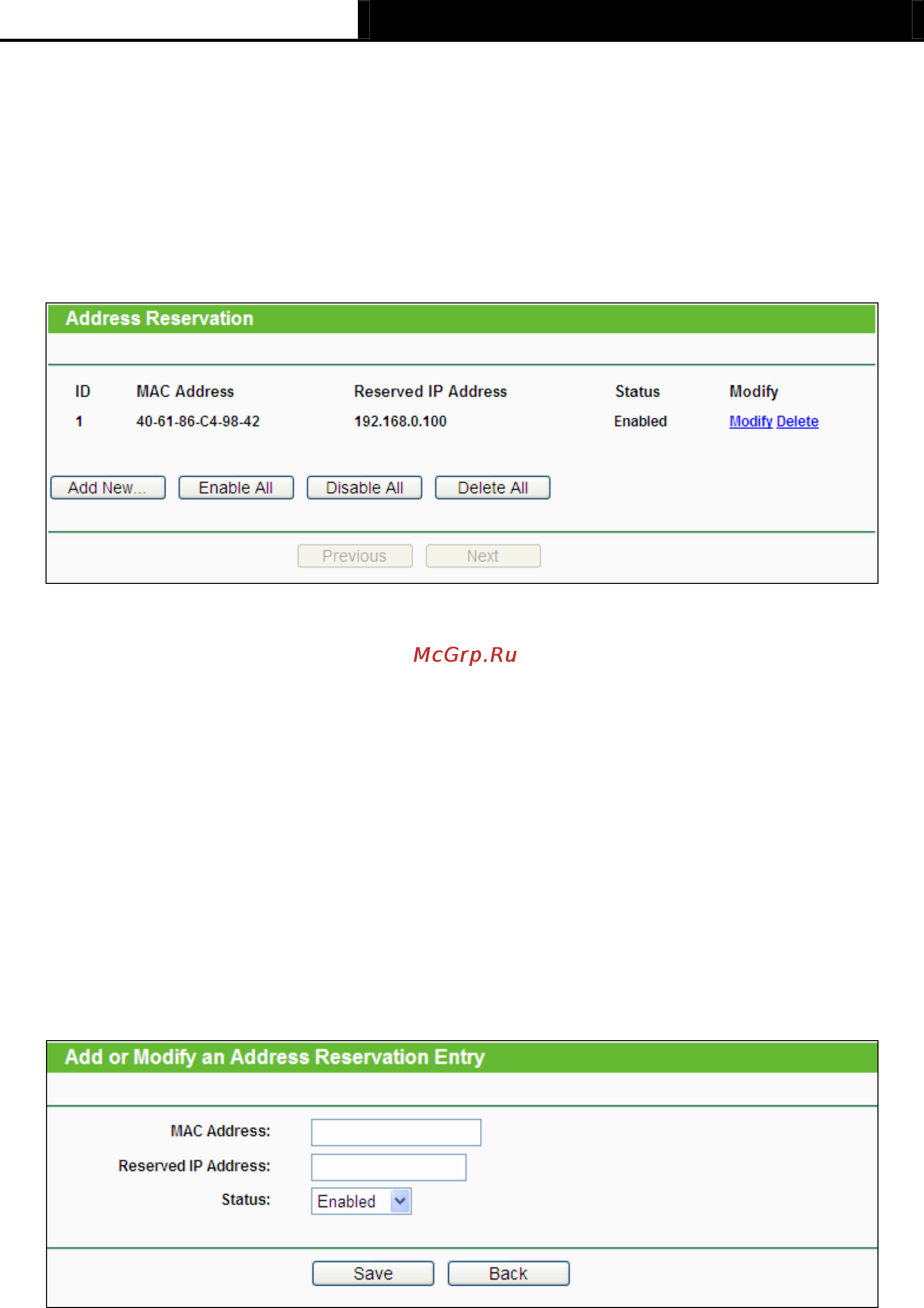

Figure 4-37 Address Reservation

¾ MAC Address - The MAC address of the PC for which you want to reserve IP address.

¾ Reserved IP Address - The IP address of the router reserved.

¾ Status - The status of this entry either Enabled or Disabled.

To Reserve IP addresses:

1. Click the Add New … button. (Pop-up Figure 4-38)

Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address in

dotted-decimal notation of the computer you wish to add.

3. Click the Save button when finished.

Figure 4-38 Add or Modify an Address Reservation Entry

To modify or delete an existing entry:

1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the

Delete.

2. Modify the information.

3. Click the Save button.
