Additional PVCs can be

configured by first

accessing the WAN

configuration menu in the

Home directory.

Multiple Virtual Connections

Home > WAN > ATM VC Setting

The Router supports multiple virtual connections. Up to eight PVCs to eight separate

destinations can be created and operated simultaneously utilizing the same bandwidth.

Additional PVC connections can be added for various purposes. For example, you may

want to establish a private connection to remote office in order to create an extended

LAN, or setup a server on a separate connection. Provisioning for additional PVC

profiles must be done through your telecommunications services provider. Extended

LAN operations employing multiple virtual connections require ADSL routers or

modems at the remote site for a successful connection. Contact your ISP or

telecommunications service provider if you are interested in setting up multiple virtual

connections.

After the necessary arrangements have been made to use the Router with multiple

virtual connections, follow the instructions below to setup the Router using the VPI/VCI

settings given to you by your server provider.

Configure Multiple PVCs

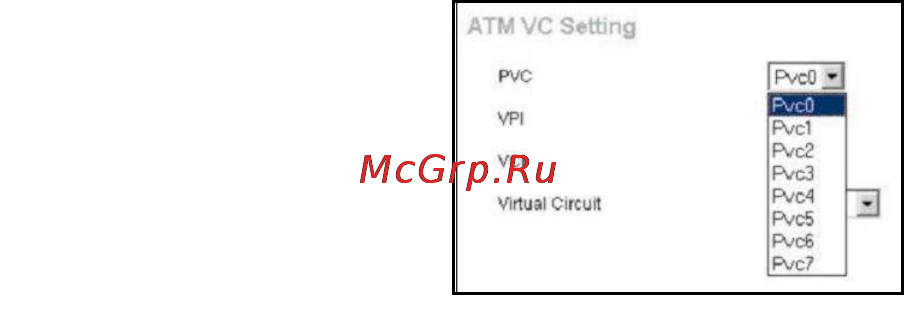

Select new PVC to configure in the WAN menu

The PVC pull-down menu offers 8 virtual connections available for configuration. The

default PVC used by the Router is labeled Pvc0. Any additional connections that are

configured must have a VPI/VCI combination that is unique to the Router. These

numbers will have been already been established by your service provider on their

network.

To add a new virtual connection:

1. Select the new PVC to configure from the pull-down menu.

2. Enter the values for the VPI and VCI given to you by your service provider.

3. To activate the VC, select Enabled from the Virtual Circuit pull-down menu.

4. Configure the WAN Settings and Connection Type as desired.

In the example below, a new PVC (Pvc1) has been added using the WAN Settings

menu. The connection is setup as a bridged connection.
