Bridged Connection for WAN

Home > WAN > Dynamic IP Address

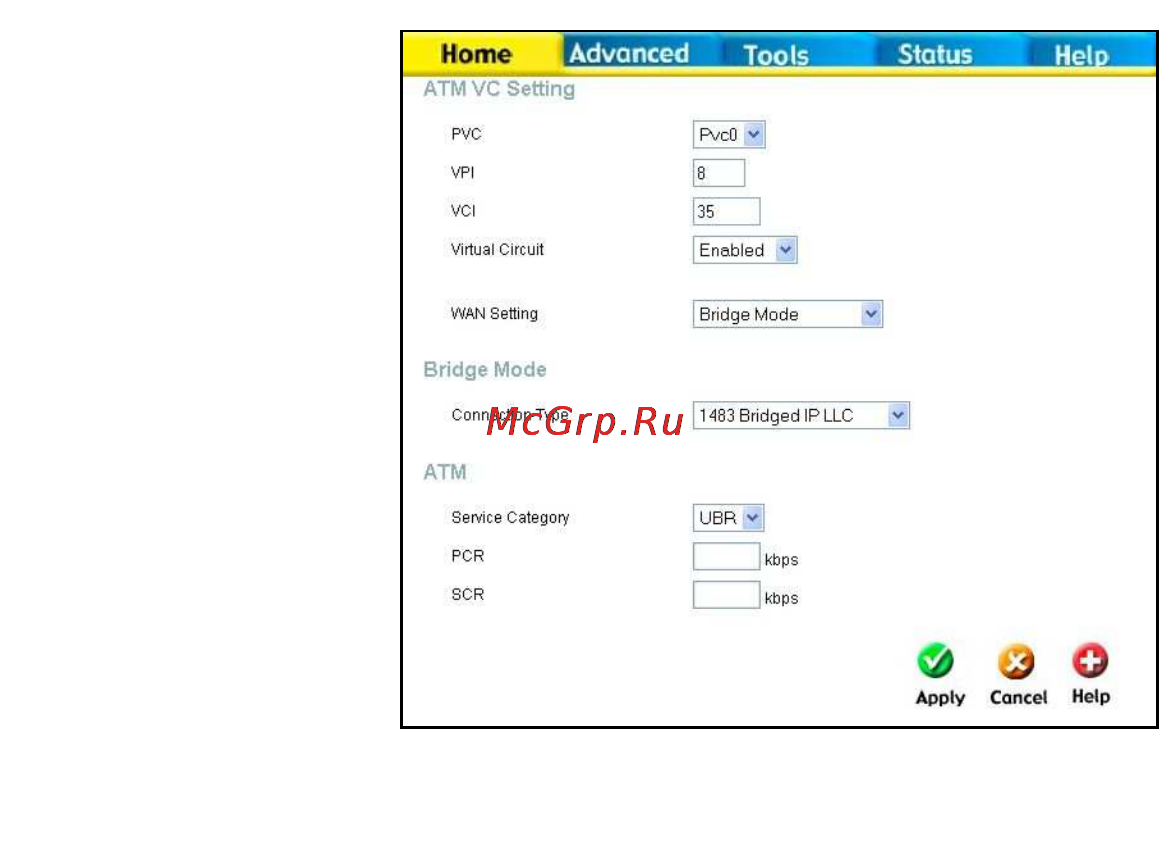

WAN Settings Menu – Bridge Mode

To configure a Dynamic IP Address connection, perform the steps listed below. Some

of the settings do not need to be changed the first time the device is set up, but can be

changed later if you choose. See the table below for a description of all the settings

available in this menu.

1. Choose the Bridge Mode option from the WAN Settings pull-down menu.

2. Under the ATM VC Settings at the top of the menu should not be changed

unless you have been instructed to change them. However, if you are instructed

to change the VPI or VCI values, type in the values assigned for your account.

Leave the PVC and Virtual Circuit setting at the default (Pcv0 and Enabled)

values for now. This can be used later if you are configuring multiple virtual

circuits for your ADSL service. For more information on ATM VC Settings, see

the table on page 24 below.

3. Under the Bridge Mode heading, choose the Connection Type from the

pull-down menu. This defines both the connection type and encapsulation

For Bridged connections it

will be necessary for most

users to install additional

software on any computer

that will the Router for

Internet access. The

additional software is

used for the purpose of

identifying and verifying

your account, and then

granting Internet access

to the computer

requesting the connection.

The connection software

requires the user to enter

the User Name and

Password for the ISP

account. This information

is stored on the computer,

not in the Router.

Follow the instructions

below to configure a

Bridged connection for the

WAN interface.
