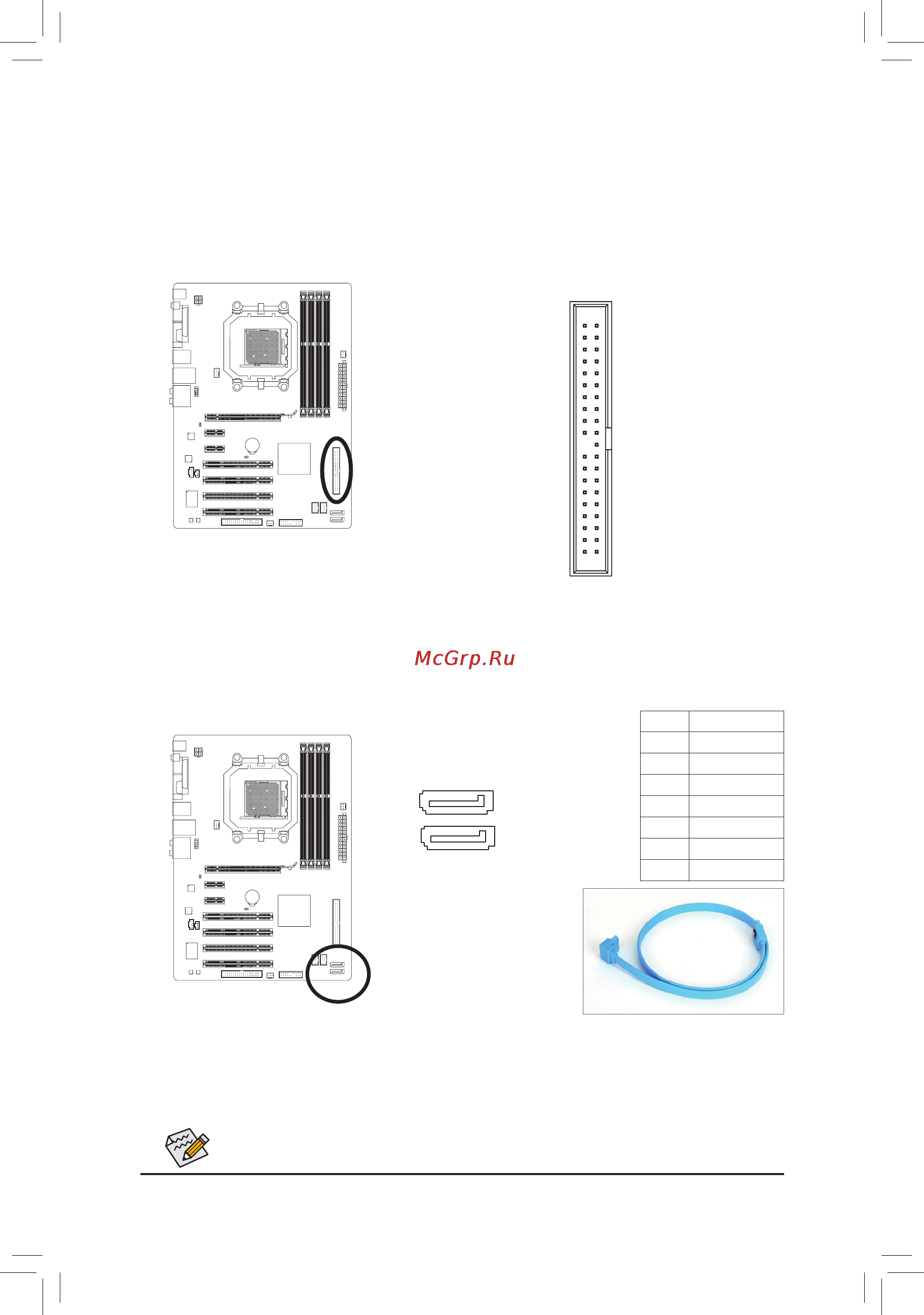

- 23 - Hardware Installation
7) IDE (IDE Connector)
The IDE connector supports up to two IDE devices such as hard drives and optical drives. Before attach-
ing the IDE cable, locate the foolproof groove on the connector. If you wish to connect two IDE devices,
remember to set the jumpers and the cabling according to the role of the IDE devices (for example,
master or slave). (For information about conguring master/slave settings for the IDE devices, read the
instructions from the device manufacturers.)
2
40
1
39
8) SATA2_0/1 (SATA 3Gb/s Connectors)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
Each SATA connector supports a single SATA device. The
NVIDIA
®
nForce 520LE
controller supports
RAID 0 and RAID 1. Refer to Chapter 5, "Conguring SATA Hard Drive(s)," for instructions on congur-
ing a RAID array.
A RAID 0 or RAID 1 conguration requires at least two hard drives.
SATA2_1
DEBUG
PORT
G.QBOFM
7
1
SATA2_0
DEBUG
PORT
G.QBOFM
7
1
Please connect the L-shaped end of
the SATA cable to your SATA hard
drive.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
