4 Configuration D-Link Smart Managed Switch User Manual
1
1
7
7

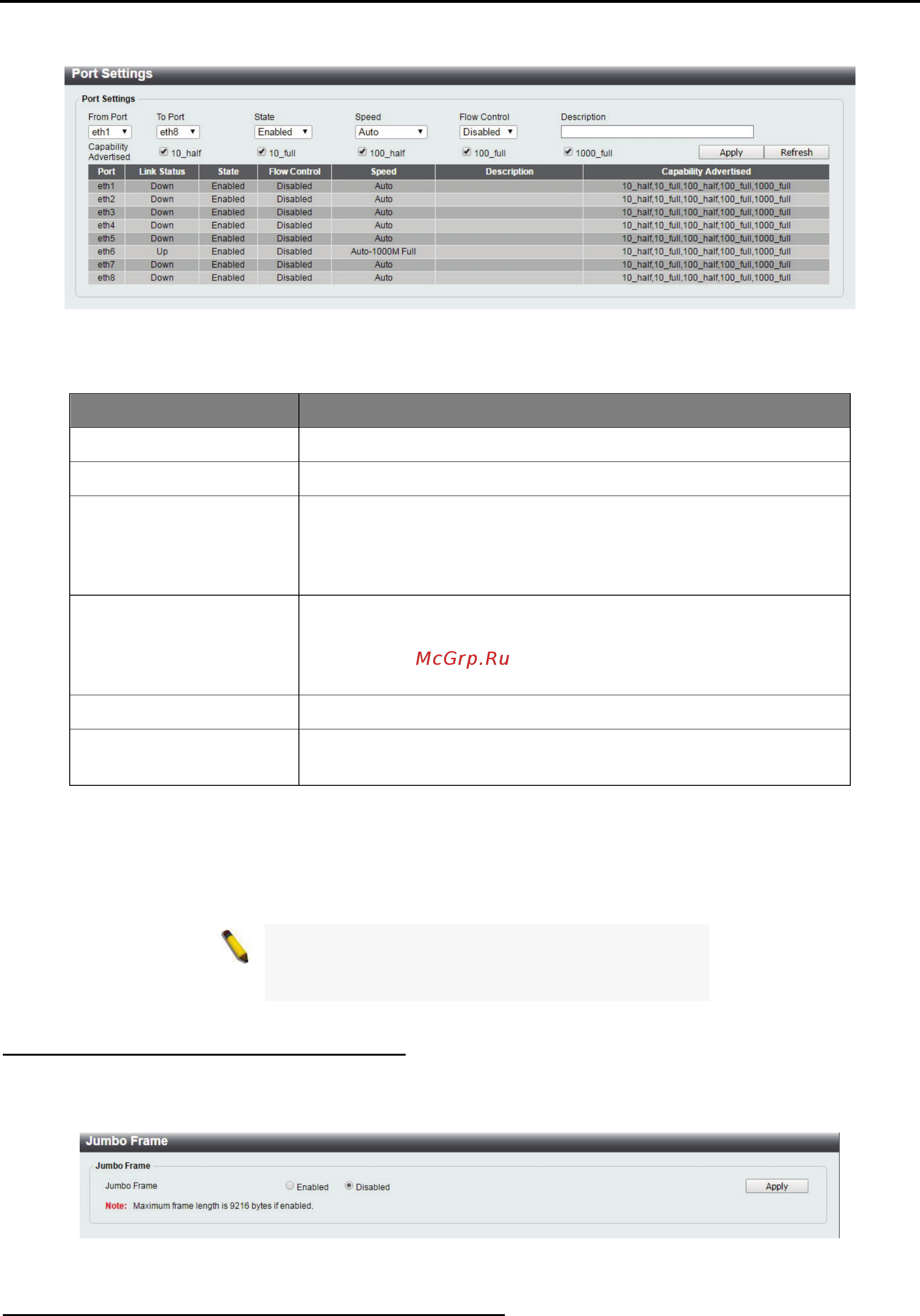

Figure 4.15 – System > Port Configuration > Port Settings
The fields that can be configured for Port Settings are described below:
Item Description
From Port / To Port
Select a range of ports to be configured.
State
Enable or disable the specified ports.
Speed
Copper connections can operate in Forced Mode settings 1000
Mbps (full-duplex), 100 Mbps (full/half-
duplex), 10 Mbps
(full/half-duplex), Auto, or Disabled. The default setting for all
ports is Auto.
Flow control
You can enable this function to mitigate traffic congestion.
Ports configured for full-duplex use 802.3x flow control, half-
duplex ports use backpressure flow control. The default setting
is Disabled.
Description
Specify a description for the chosen ports
Capability Advertised
When the Speed is set to Auto
, these capabilities are
advertised during auto-negotiation.
Table 4.3
Click Apply to make the configurations take effect.
Click Refresh button to update the port status information.
NOTE:
Be sure to adjust port speed settings
appropriately after changing the connected cable
media types.
System > Port Configuration > Jumbo Frame
D-Link Smart Managed Switches support jumbo frames (frames larger than the Ethernet frame size of 1536
bytes) of up to 9216 bytes (tagged). This function is disabled by default. Select Enabled then click Apply to
turn on the jumbo frame support.
Figure 4.16 – System > Port Configuration > Jumbo Frame
System > PoE > PoE System (DGS-1100-05PD/08P only)
The PoE System page will display the PoE status including System Budget Power, Support Total Power,
Remainder Power, and the ratio of system power supply.
