4 Configuration D-Link Smart Managed Switch User Manual
34
Item Description
IGMP Snooping
Specify to enable or disable the IGMP Snooping function of the
Switch.
Table 4.25
Click Apply to make the configuration take effect.
L2 Features > L2 Multicast Control > IGMP Snooping > IGMP Snooping Group Settings
The IGMP Snooping Group Settings page allows user to configure static IGMP Snooping groups on the
Switch.

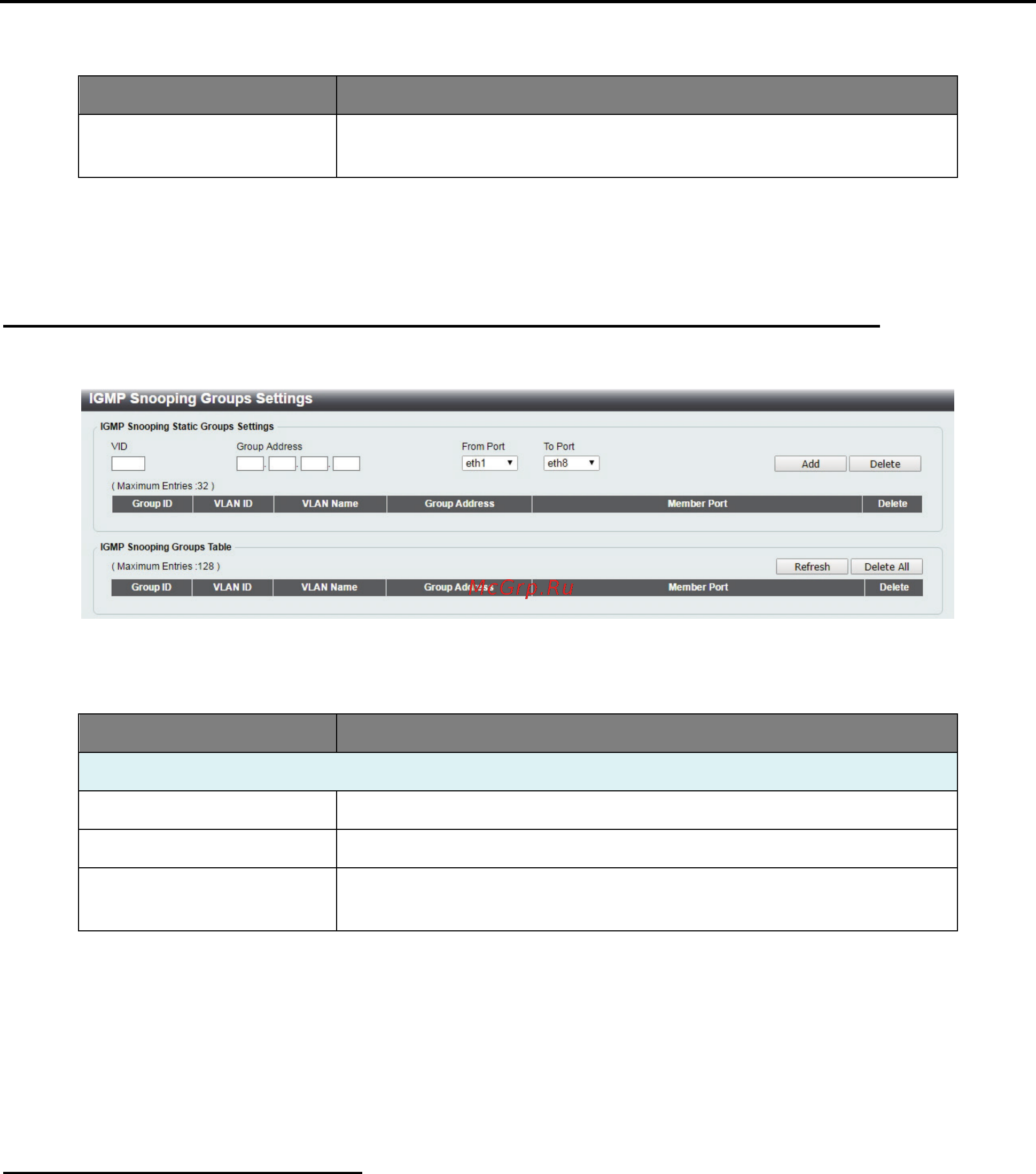

Figure 4.43 – L2 Features > L2 Multicast Control > IGMP Snooping > IGMP Snooping Group Settings
The fields that can be configured for are described below:
Item Description
IGMP Snooping Static Group Settings
VID
Specify the VLAN ID to create the IGMP group.
Group Address
Specify the group IP address for the IGMP Snooping group.
From Port / To Port
Specify a range of ports to be included in the IGMP Snooping
group.
Table 4.26
Click Add to create a new IGMP Snooping group.
Click Delete to remove the corresponding IGMP Snooping group.
Click Delete All to remove all IGMP Snooping groups.
Click Refresh to renew the IGMP Snooping Groups Table information.
QoS > 802.1p/DSCP Default Priority
Quality of Service (QoS) is an implementation of the IEEE 802.1p standard that allows network
administrators to manage traffic for important functions that require more bandwidth or have a higher priority,
such as VoIP (voice-over Internet Protocol), web browsing applications, file server applications, or video
conferencing. Thus with larger bandwidth, less critical traffic is limited, and therefore excessive bandwidth
can be saved.
The following figure displays the status of Quality of Service priority levels of each port. This means that the
Switch will handle traffic from higher priority ports first. For packets that are untagged, the Switch will assign
the priority depending on your configuration.
