1 Product Introduction D-Link Smart Managed Switch User Manual

Rear Panel

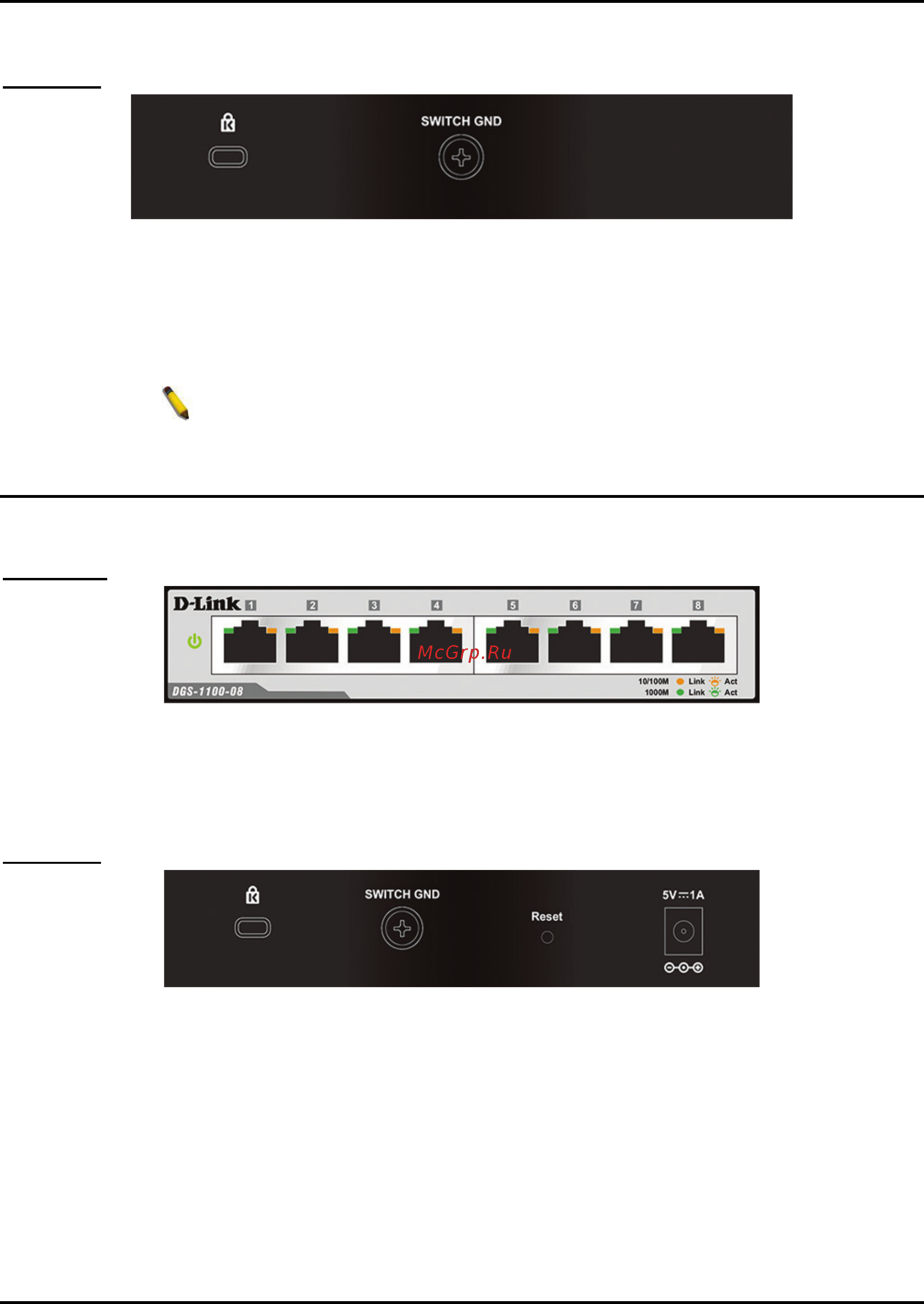

Figure 1.4 – DGS-1100-05PD Rear Panel

Power: Use RJ45 to connect the PD port (port 5) and Power over Ethernet Adapter Kit.

Kensington Lock: This is used to attach a physical Kensington security lock.

GND: This is used to connect the Switch to ground.

NOTE: The power budget is 18 Watts with 802.3at and 8 Watts with

802.3af for DGS-1100-05PD.

DGS-1100-08

8-Port 10/100/1000Mbps Smart Managed Switch.

Front Panel

Figure 1.5 – DGS-1100-08 Front Panel

Power LED: The Power LED lights up when the Switch is connected to a power source.

Link/Act/Speed LED (Ports 1-8): 10/100/1000 Mbps ports to connect Ethernet devices to the switch.

Rear Panel

Figure 1.6 – DGS-1100-08 Rear Panel

Power: Input for a 5V/1A AC adapter.

Reset: Press the Reset button for 1 to 5 seconds to reboot the Switch. Press the Reset button for 6 to10

seconds to reset the Switch back to the default settings. The LED will light up solid amber for 2 seconds.

When pressing the Reset button for longer than 10 seconds, the device will enter loader mode and the LED

will light up solid green for 2 seconds. If the device cannot reboot, it will automatically enter loader mode.

Alternatively, you can press Reset to power up the device and enter loader mode.

Kensington Lock: This is used to attach a physical Kensington security lock.

GND: This is used to connect the Switch to ground.

DGS-1100-08P

8-Port 10/100/1000Mbps PoE Smart Managed Switch.
