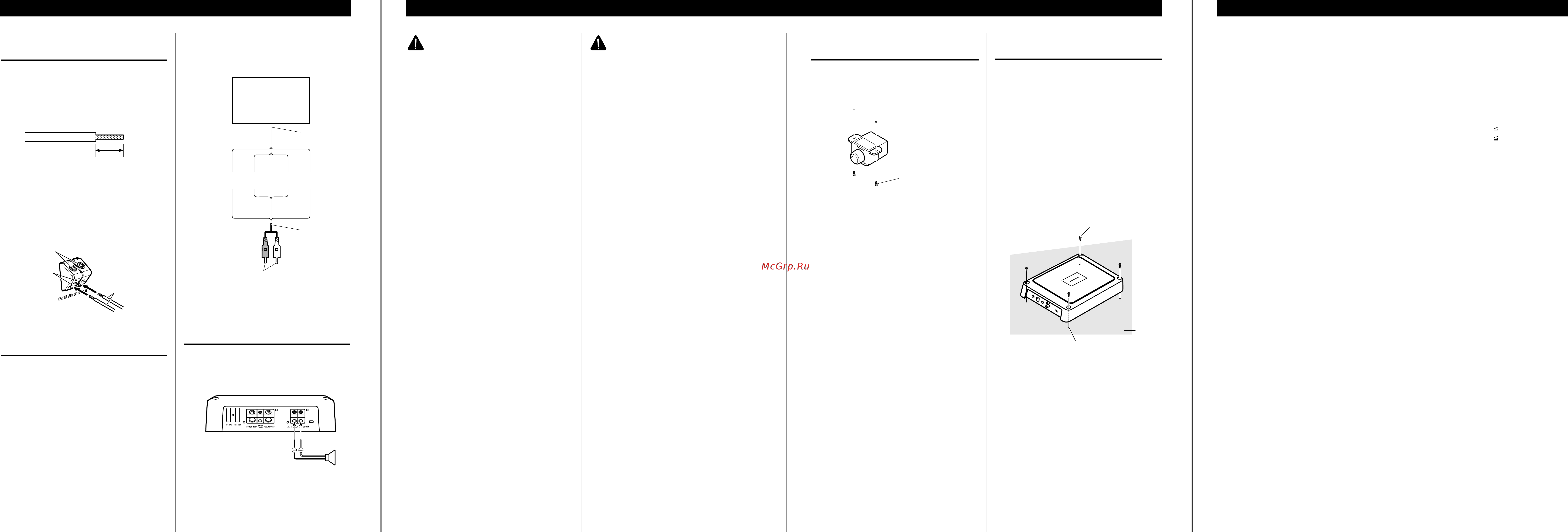

Connecting the Unit ENGLISH
CAUTION
• Do not install in:
—Places where it could injure the driver or pas-
sengers if the vehicle stops suddenly.
—Places where it may interfere with the driver,
such as on the floor in front of the driver’s
seat.
• Make sure that wires are not caught in the sliding
mechanism of the seats, resulting in a short-cir-
cuit.
• Confirm that no parts are behind the panel when
drilling a hole for installation of the amplifier.
Protect all cables and important equipment such
as fuel lines, brake lines and electrical wiring
from damage.
• Install tapping screws in such a way that the screw
tip does not touch any wire. This is important to
prevent wires from being cut by vibration of the
car, which can result in fire.
• DO NOT allow amplifier to come into contact
with liquids due to, for example, the location
where the amplifier is installed. Electrical shock
could result. Also, amplifier and speaker damage,
smoke, and overheating could result from contact
with liquids. In addition, the amplifier surface and
the surface of any attached speakers could become
hot to the touch and minor burns could result.
• To ensure proper installation, use the supplied
parts in the manner specified. If any parts other
than the supplied ones are used, they may damage
internal parts of the amplifier, or they may
become loose causing the amplifier to shut down.
• Never replace the fuse with one of greater value
or rating than the original fuse. Use of an improp-
er fuse could result in overheating and smoke and
could cause damage to the product and injury
including burns.
CAUTION:
To prevent malfunction and/or injury
• To ensure proper heat dissipation of the amplifier,
be sure of the following during installation.
—Allow adequate space above the amplifier for
proper ventilation.
—Do not cover the amplifier with a floor mat or
carpet.
• DO NOT allow amplifier to come into contact
with liquids due to, for example, the location
where the amplifier is installed. Electrical shock
could result. Also, amplifier and speaker damage,
smoke, and overheating could result from contact
with liquids. In addition, the amplifier surface and
the surface of any attached speakers could become
hot to the touch and minor burns could result.
• Do not install the amplifier on unstable places
such as the spare tire board.
• The best location for installation differs with the
car model and installation location. Secure the
amplifier at a sufficiently rigid location.
• Make temporary connections first and check that
the amplifier and the system operate properly.
• After installing the amplifier, confirm that the
spare tire, jack and tools can be easily removed.
Installation ENGLISH Specifications ENGLISH
Power source............................................................................................................ 14.4 V DC (10.8 V to 15.1 V allowable)
Grounding system ............................................................................................................................................ Negative type
Current consumption ........................................................................................................ 27.0 A (at continuous power, 4 Ω)
Average current drawn* .............................................................................................................. 7.5A (4 Ω for one channel)
15.0 A (2 Ω for one channel)
Fuse .......................................................................................................................................................................... 30 A × 2
Dimensions .......................................................................................................... 290 mm (W) × 56 mm (H) × 200 mm (D)
(Terminals not included)
Weight ...................................................................................................................... 3.2 kg (Leads for wiring not included)
Maximum power output ............................................................................................ 600 W × 1 (4 Ω) / 1 200 W × 1 (2 Ω)
Continuous power (14.4 V) .................................................................... 4 Ω, 20 Hz to 240 Hz, 1.0 % THD, 300 W × 1
2 Ω, 50 Hz, 1.0 % THD, 600 W × 1
Load impedance .......................................................................................................................... 4 Ω (2 Ω to 8 Ω allowable)
Frequency response ............................................................................................................ 10 Hz to 240 Hz (+0 dB, –3 dB)
Signal-to-noise ratio ........................................................................................................................ 80 dB (IEC-A network)
Distortion .............................................................................................................................................. 0.3% (10 W, 100 Hz)
Low pass filter .............................................................................................................. Cut off frequency: 40 Hz to 240 Hz
Cut off slope: –12 dB/oct
Bass Boost .................................................................................................................................................. Frequency: 50 Hz
Level: 0 dB to 12 dB
Gain control ...................................................................................................................................... RCA: 200 mV to 6.5 V
Speaker: 0.8 V to 26 V
Maximum input level / impedance ........................................................................................................ RCA: 6.5 V / 22 kΩ
Speaker: 26 V / 90 kΩ
Note:
• Specifications and the design are subject to possible modification without notice
due to improvements.
*Average current drawn
• The average current drawn is nearly the maximum current drawn by this unit
when an audio signal is input. Use this value when working out total current
drawn by multiple power amplifiers.
Connecting the Speaker Output
Terminals
• Use a 10 AWG to 16 AWG wire for the speaker
wire.
1. Expose the end of the speaker wires
using nippers or a cutter by about
10 mm to 12 mm.
2. Connect the speaker wires to the
speaker output terminals.
• Fix the speaker wires securely with the termi-
nal screws.
Using the Speaker Input
Connect the car stereo speaker output
wires to the amplifier using the supplied
speaker input wire with RCA pin cord.
• Slide the input switch to the left (SP).
7 Connections when using the speaker
input
Connecting the Speaker Wires
Connect the speaker leads according to the
figures shown below.
10 mm to 12 mm
Speaker output
terminal
Terminal screws
Speaker wire
Speaker output
Car Stereo
White: Black: Black: Red:
Left + Left ≠ Right ≠ Right +
Speaker input
wire with RCA
pin cord
To RCA input
jack of this unit.
Subwoofer
Attaching the Bass boost remote
control
Attach with tapping screws (3 mm × 10 mm) at an
easily accessible location such as under the dash-
board.
Example of installation on the floor
mat or on the chassis
1. Place the amplifier where it is to be
installed. Insert the supplied tapping
screws (4 mm × 18 mm) into the
screw holes. Push on the screws with
a screwdriver so they make marks
where the installation holes are to be
located.
2. Drill 2.5 mm diameter holes at the
point marked, and install the ampli-
fier, either on the carpet or directly
to the chassis.
Tapping screw
(3 mm × 10 mm)
Drill a 2.5 mm diameter hole
Tapping screw
(4 mm × 30 mm)
Floor mat
or chassis
