4

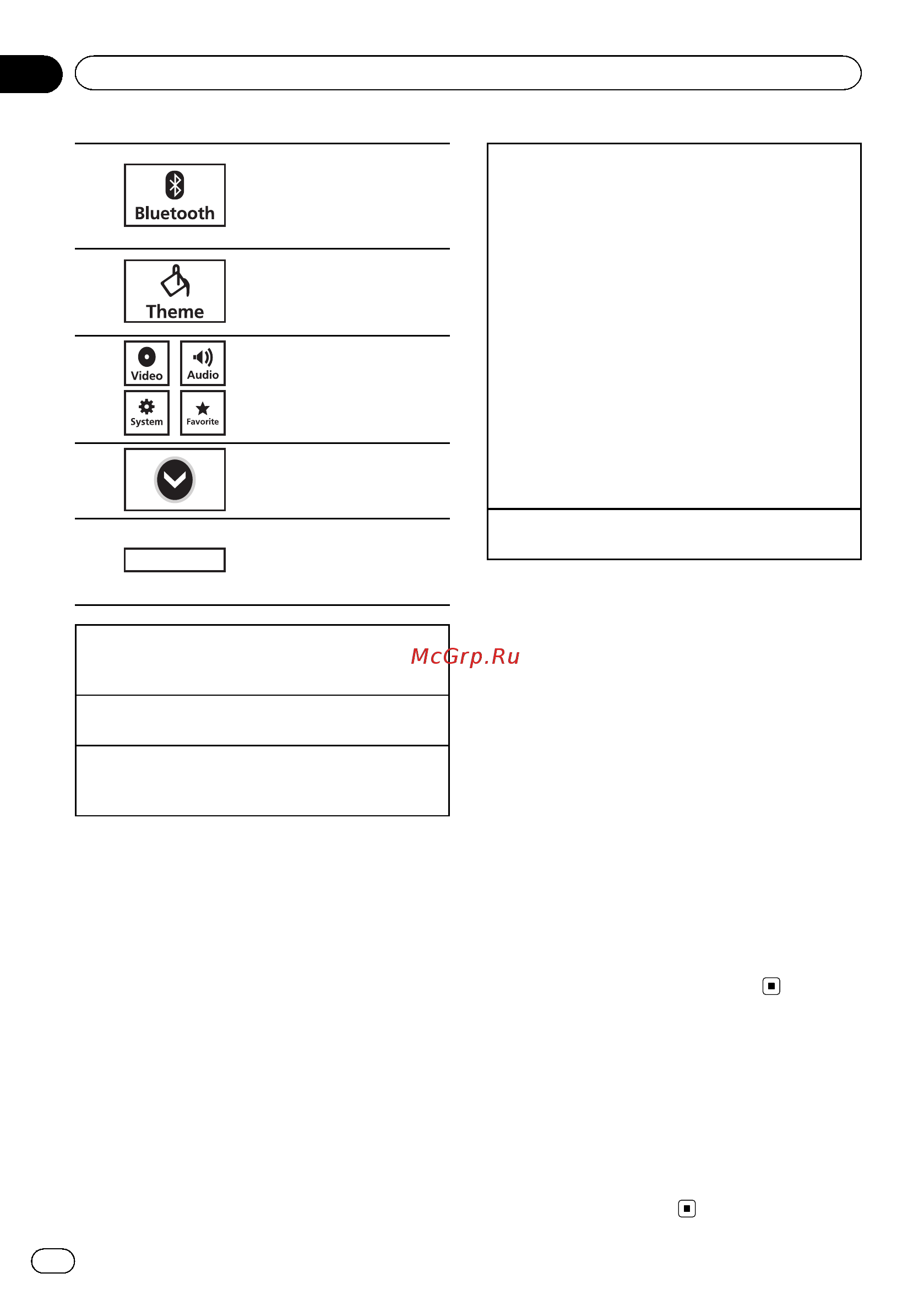

Displaying the Bluetooth
connection menu.
Refer to Introduction of
Bluetooth connection menu
operations on page 60.
5
Displaying the Theme menu.
Refer to Introduction of
Theme setting menu opera-
tions on page 62.
6
Displaying the menu.
Refer to Menu operations on
page 44.
7
Displaying the source menu.
8
13 ARP
PM
12:25
Switching to clock adjust-
ment display.
Refer to Setting the clock on
page 13.
Switching to HOME display
1 Press HOME when you want to switch the dis-
play.
Turning the source on using the buttons
1 Press SRC/OFF to turn the source on.
Turning the source off using the buttons
1 Press SRC/OFF and hold until the source turns
off.
Selecting a source using the buttons
1 Press SRC/OFF to cycle through the sources
listed below:
Selecting a source using the touch panel keys
1 Touch the source icon and then touch the desired
source name.
! Radio – Radio
! Disc – Built-in DVD player
! USB/iPod 1 – USB/iPod 1
! USB/iPod 2 – USB/iPod 2
! SD – SD memory card
! Bluetooth Audio – Built-in Bluetooth audio
! AUX – AUX
! AV – AV input
! When the source icon is not displayed, it can be
displayed by touching the screen.
! While operating the menu, you cannot select a
source by touching the source icon.
Adjusting the volume
1 Press +/– (VOLUME/VOL) to adjust the volume.
Notes
! In this manual, iPod and iPhone will be re-
ferred to as “iPod”.
! The USB/iPod 1 or USB/iPod 2 icon will
change as follows:
— USB 1 is displayed when a USB storage de-
vice is connected to USB input 1.
— iPod 1 is displayed when an iPod is con-
nected to USB input 1.
— USB 2 is displayed when a USB storage de-
vice is connected to USB input 2.
— iPod 2 is displayed when an iPod is con-
nected to USB input 2.
— STEEZ is displayed when a
STEEZ PORTABLE (Pioneer product) is
connected to USB input 1 or USB input 2.
— USB/iPod 1 or USB/iPod 2 is displayed
when no device is connected.
USB/iPod 1 and USB/iPod 2
This unit has USB/iPod 1 and USB/iPod 2
sources.
In USB/iPod 2, the following functions are not
available.
— Advanced App Mode
— Rear monitor output
En
