Pioneer AVH-8400BT [8/88] What s what
![Pioneer AVH-8400BT [8/88] What s what](/views2/1464925/page8/bg8.png)

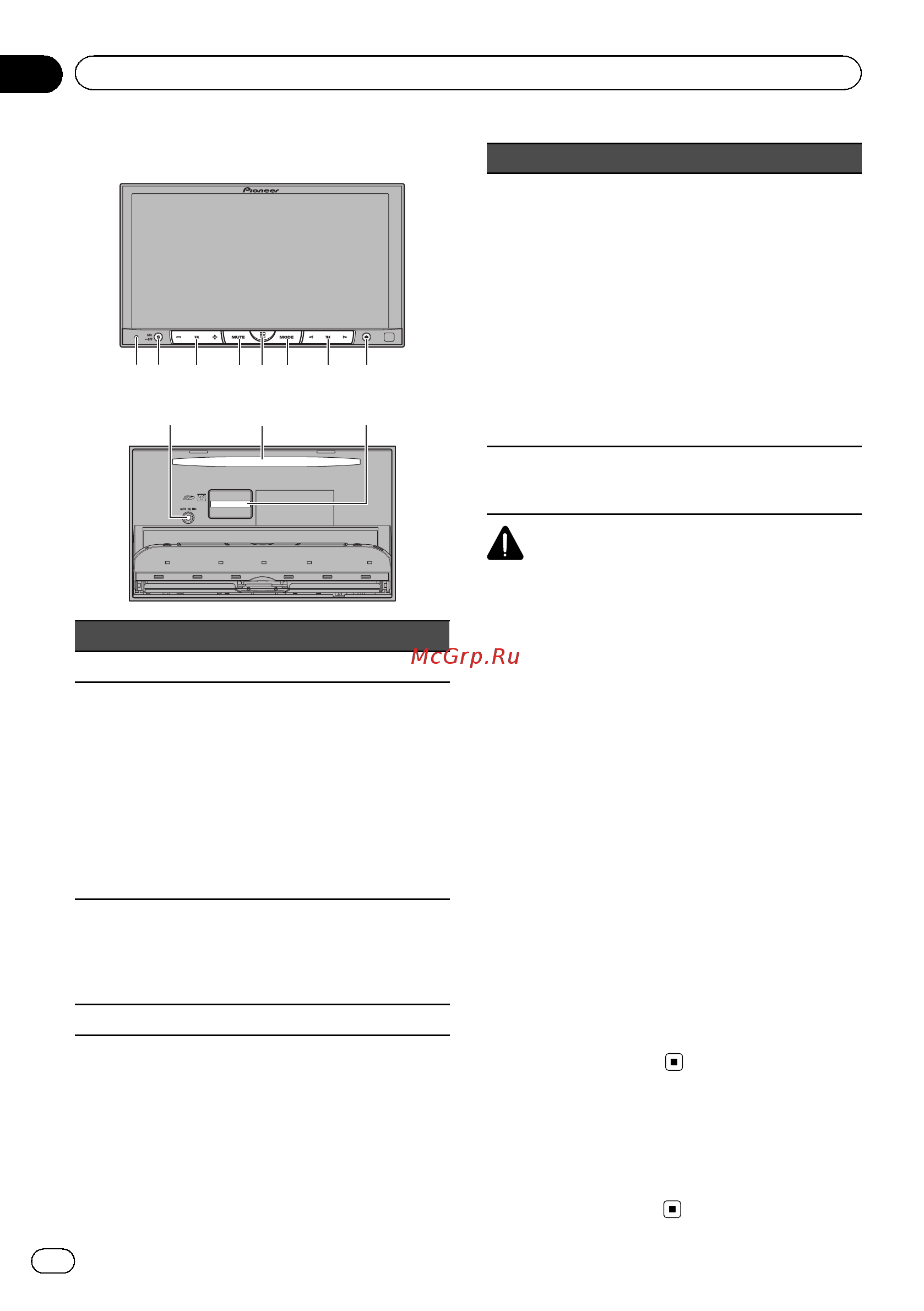

Head unit
12 3
5 6 7
4
8
9 a
b
Part Part
1 RESET 7 c/d (TRK)
2 SRC/OFF 8
h (eject)
Refer to Ejecting a
disc on page 12.
Refer to Ejecting an
SD on page 12.
Refer to Adjusting
the LCD panel angle
on page 12.
Refer to Removing
the front panel on
page 12.
3
+/– (VOLUME/
VOL)
9
Auto EQ micro-
phone input jack
Use to connect an
auto EQ micro-
phone.
4 MUTE a Disc loading slot
Part Part
5
HOME
Displaying the
HOME display.
The display returns
to the Launcher
screen while a 3rd-
party application is
being used in Ad-
vanced App Mode.
Doubleclicking the
icon on the Launch-
er screen returns
the display to the
HOME display.
b
SD memory card
slot
6
MODE
Turning the infor-
mation display off.
CAUTION
! Do not use unauthorized products.
! When inserting an SD card into the card slot,
make sure that the label is facing up and
press the card until it clicks and completely
locks into place.
Notes
! When the navigation system is connected,
press MODE to switch to the navigation dis-
play. Press MODE and hold to turn the display
off.
Press MODE again to turn the display on.
! For details on how to operate a navigation sys-
tem from this unit, refer to its operation man-
ual.
When an iPhone that is running an applica-
tion that supports Advanced App Mode is con-
nected, press MODE to switch to the
application display. You can use the applica-
tion by touching the display.
! About the way to connect the USB portable
audio player/USB memory to this unit, refer to
installation manual.
Optional remote control
The remote control CD-R33 is sold separately.
For details concerning operations, see the re-
mote control manual.
En
8
Section
03
What’s what
