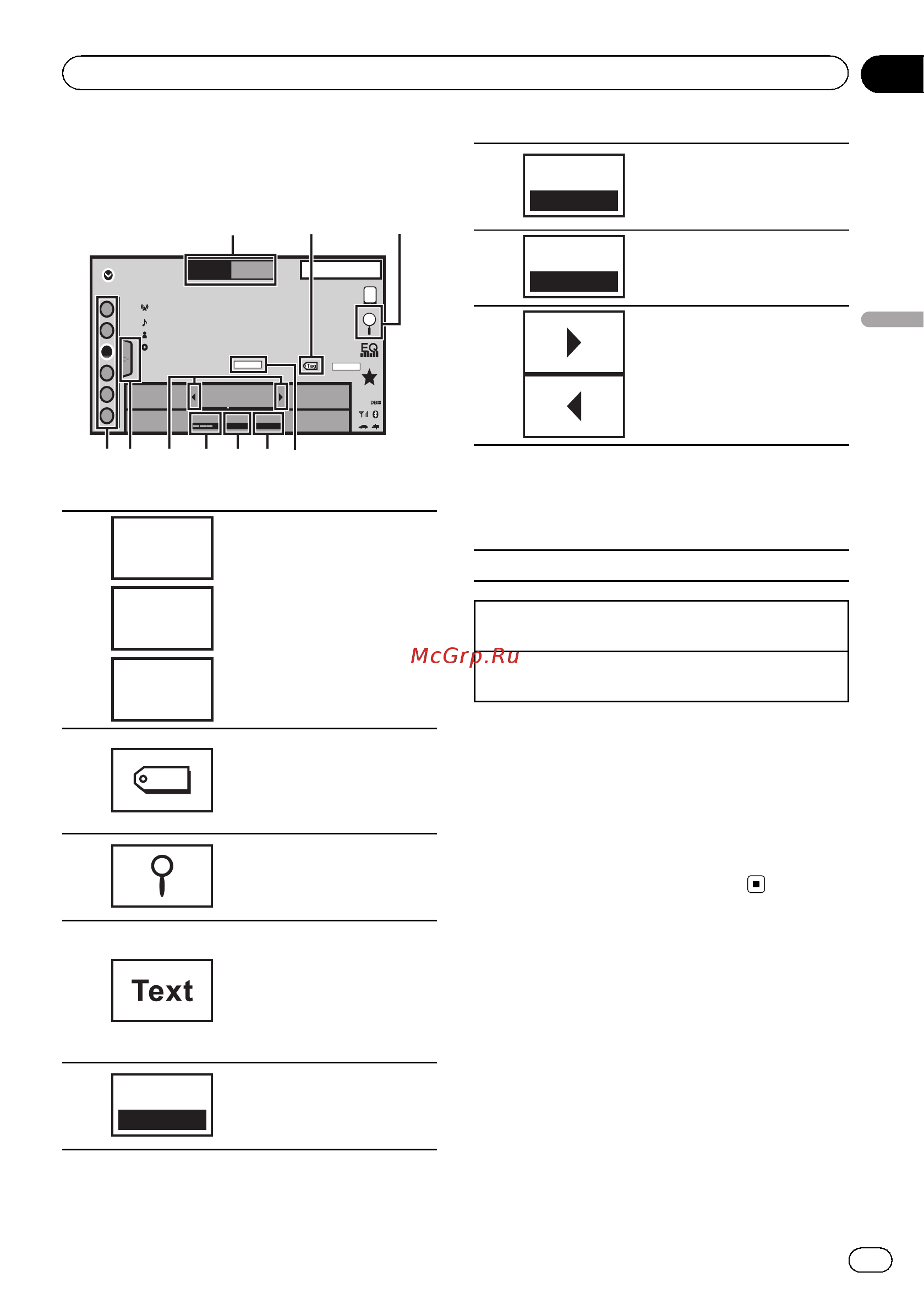

Introduction of tuner
operations
Radio
13 ARP
PM
12:25
1
2
3
4
5
6
87.50
MHz
TALocal News
OFF ON
FM MW1
Dolby PLll
TEXT
WWWWWWWWWWWW
W
WWWWWWWWWWWWWWW
W
WWWWWWWWWWWWWWW
W
WWWWWWWWWWWWWWW
W
STEREO
65789a
1
32
4
Touch panel keys
1
FM1
MW
LW
Selecting a band (FM1, FM2
or FM3) by touching the left
icon. Switching to the MW/
LW band by touching the
right icon.
The icon for the selected
band is highlighted.
2
Tag
Saving song information
(tag) from the broadcasting
station to your iPod.
Refer to Using iTunes tagging
on page 30.
3
Displaying the PTY informa-
tion
Refer to Using PTY functions
on page 32.
4
Displaying radio text.
Refer to Displaying radio text
on page 30.
Storing and recalling radio
text.
Refer to Storing and recalling
radio text on page 30.
5
News
Turning news program inter-
ruption on or off.
Refer to Using news program
interruption on page 32.
6
TA
Turning TA (traffic announce-
ment standby) on or off.
Refer to Receiving traffic an-
nouncements on page 31.
7
Local
Setting the local seek level.
Refer to Tuning in to strong
signals on page 30.
8
Tuning up or down manually.
Touch and hold for more
than two seconds to skip sta-
tions. Seek tuning starts as
soon as you release. Touch
again to cancel seek tuning.
9
Displaying the preset channel list.
Refer to Storing and recalling stations on page
30.
Refer to Storing the strongest stations on page
30.
a Select a preset channel.
Switching preset channels using the buttons
1 Press c or d (TRK).
Seek tuning using the buttons
1 Press and hold c or d (TRK).
Notes
! Noise may be generated when listening to
MW/LW radio while charging an iPod with this
unit. In such cases, disconnect the iPod from
the unit.
! Touch panel keys not listed under Introduction
of tuner operations may appear on the display.
Refer to Indicator list on page 72.
En
15
Section
05
Tuner
Tuner
