Introduction of menu
operations
SonicCenter Control
FR:0
Powerful
On
LR:0
LR:0
OFF
ON
Loudness
Subwoofer
Bass Booster
High Pass Filter
Source Level Adjuster
Fader/Balance
F/R 0
Powerful
Off
L/R 0
L/R 0
OFF
ON
Graphic EQ
Auto EQ
Sonic Center Control
Loudness
Subwoofer
1
2
43
5

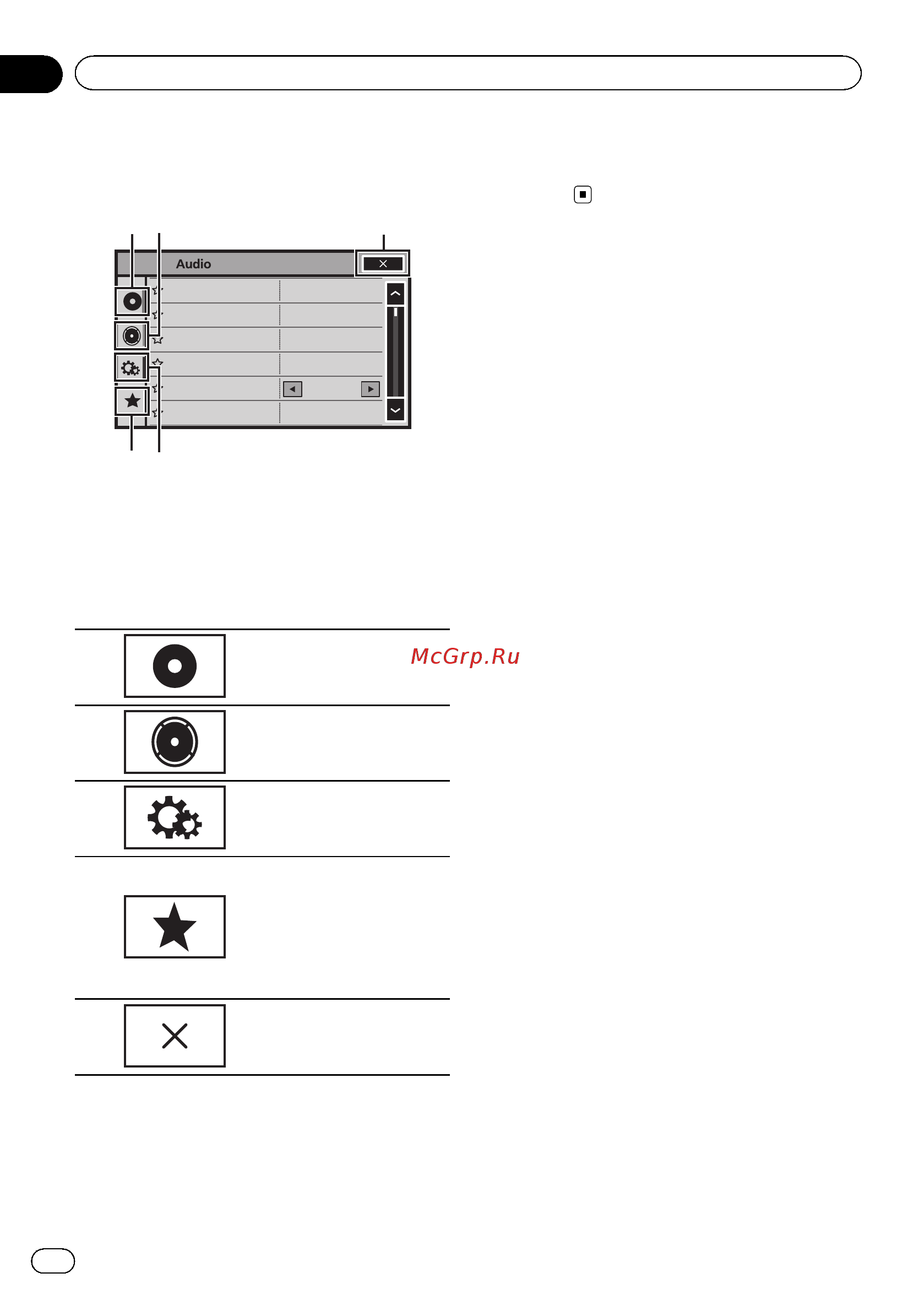

1 Display menus.
Refer to Basic operations on page 9.
2 Touch any of the following touch panel
keys to select the menu to be adjusted.
Touch panel keys
1
Video Setup menu
Refer to Setting up the Video
player on page 48.
2
Audio function menu
Refer to Audio adjustments
on the next page.
3
System menu
Refer to System settings on
page 52.
4
Favorite menu
You can choose menus with-
in each menu (Audio func-
tion menu, etc.) and register
them to this favorite menu.
Refer to Favorite menu on
page 59.
5
Returning to the current
source display
Notes
! You can display the Video Setup menu when
a Disc, USB or SD source is selected.
! If you start the Video Setup menu, playback
is stopped.
! You cannot display the Audio function menu
when the mute function is on or a JPEG file is
playing.
En
44
