TL-WPA4220
AV600 Powerline Wi-Fi Extender
16
WPA/WPA2 and WPA-PSK/WPA2-PSK. The default password can be found on the label at the bottom
of the device. Wireless security can be configured on the following screen shown as Figure 3-9.

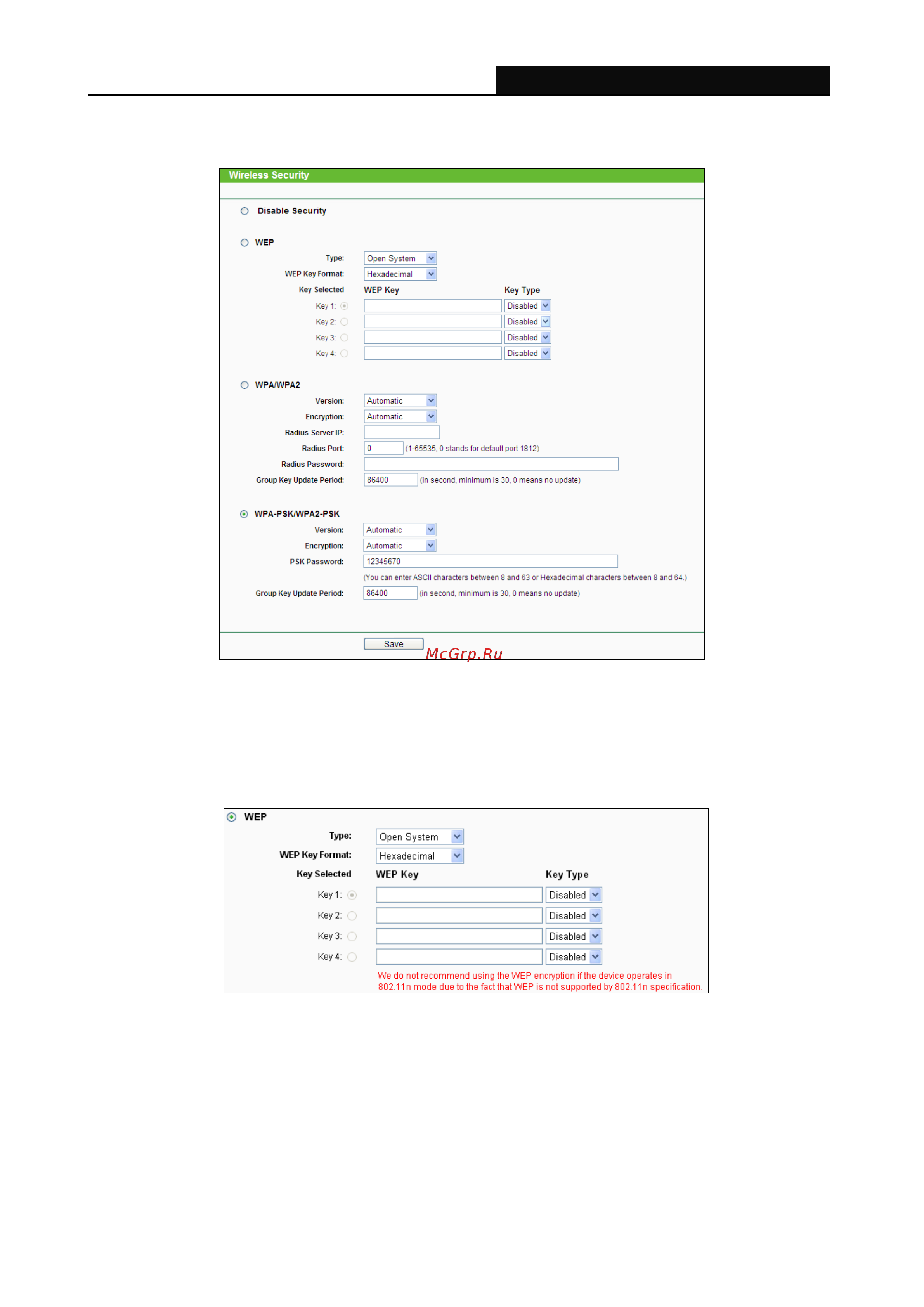

Figure 3-9 Wireless Security
Disable Security - Check this radio button to disable wireless security. If disabled, the wireless
stations will be able to connect this device without encryption. It is strongly recommended that you
choose one of the security types to enable security.
WEP - Select 802.11 WEP security.
Figure 3-10 WEP
•
Type - You can select one of following types.
Automatic - Select Shared Key or Open System authentication type automatically based
on the wireless station's capability and request.
Shared Key - Select 802.11 Shared Key authentication type.
Open System - Select 802.11 Open System authentication type.
