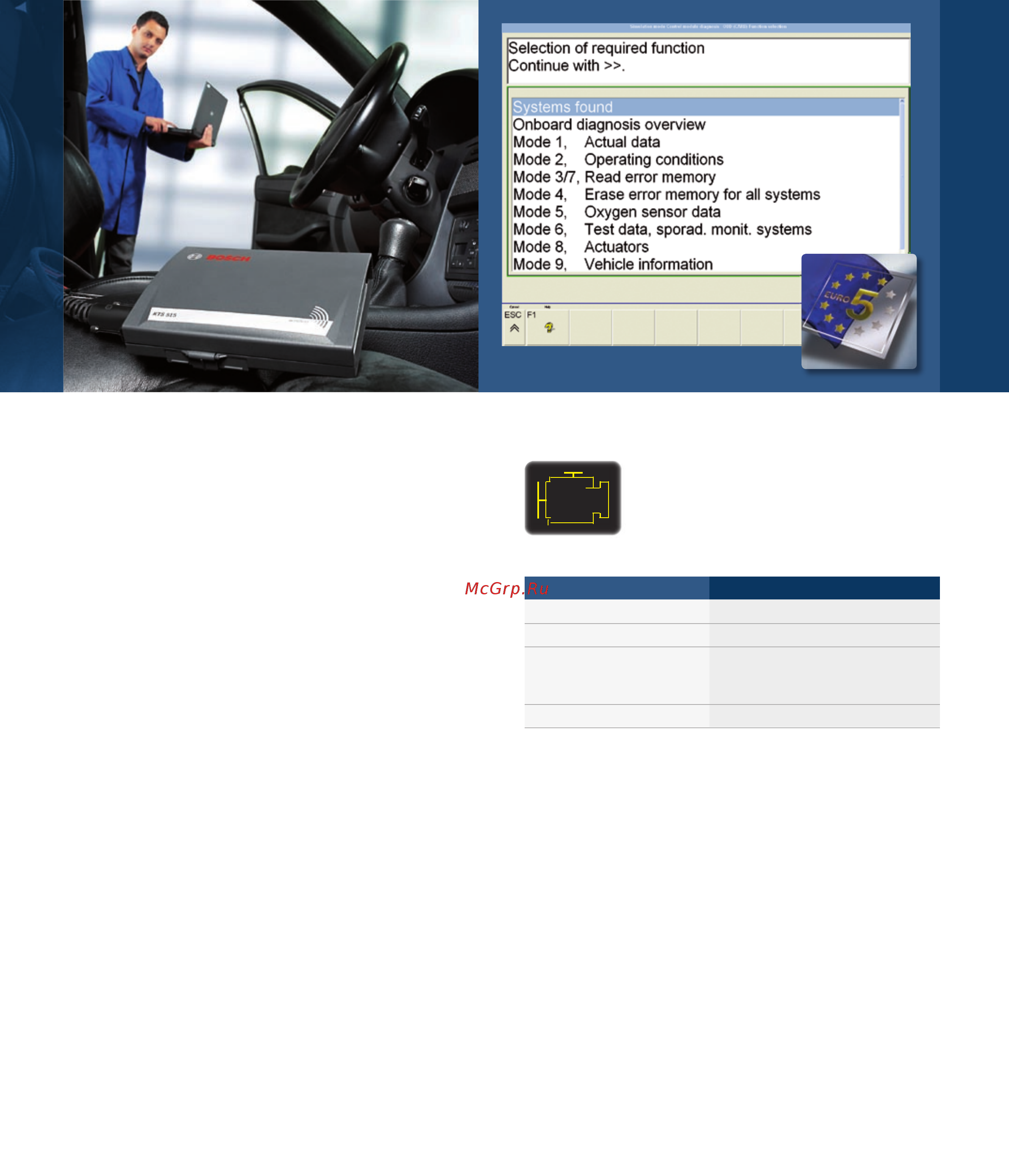

KTS 515: Entry level access to mobile OBD
and reprogramming in line with Euro 5
Malfunction display
(MI Malfunction Indicator)
The malfunction indicator is a yellow
indicator lamp with the symbol of an engine.
With OBD (On Board Diagnostics), a Europe-
wide standard for emission values and their
correct testing was introduced. Simple, fast and
workshop-oriented testing of emission values in
accordance with the OBD standard: The KTS 515
is the perfect entry level solution for this task,
providing connection to an existing PC or laptop.
KTS 515: The ideal OBD solution for the diagnosis
of exhaustgas-related systems
Ñ Reads out OBD modes 1–9
(current range of functions of the OBD standard)
Ñ Display of standardized P0 codes
Ñ Supports all four communication protocols
Ñ OBD module for retrofitting Bosch exhaust-gas testers
Ñ The usual, straightforward operator guidance
Ñ Software update option with extension of the OBD
standard
Ñ Reprogramming of electronic control unit, in
accordance with Euro 5
Ñ Pass-Thru capability: Complete OBD diagnosis for all
vehicle brands
Ñ Load reduction on workshop diagnostic devices for
control unit reprogramming
General: Only testers that are already Euro 5-compatible can be
used for ECU reprogramming. This only includes devices in which a
"Pass-Thru Interface" is already integrated. At Bosch, the KTS 670,
570, 540, 530, 515, and 340 can be used for this.
Equipment supply
Module, OBD diagnostics cable, PC module connecting
cable (USB), USB Bluetooth adapter, software exhaust
test OBD with KTS 515 PC program, power supply unit,
case.
Accessories
Ñ Longer PC connecting cables
– USB 2 m 1 684 465 507
– Adapter cable 5 m 1 684 465 567
For operation of the KTS 515, a PC or notebook with the following
features is necessary: CD drive, Win XP, minimum 128 MB main
memory, a free USB or serial interface and at least 600 MB hard
disk capacity for the software installation.
Technical data KTS 515
Weight 0.33 kg
Printout on commercial-type printer (via PC)
Connections OBD diagnostics cable, USB,
Bluetooth, power supply unit,
operating display
Dimensions 170 x 120 x 35 mm (W x H x D)
