CPS7500PIE /CPS7500PRO

BASIC OPERATION

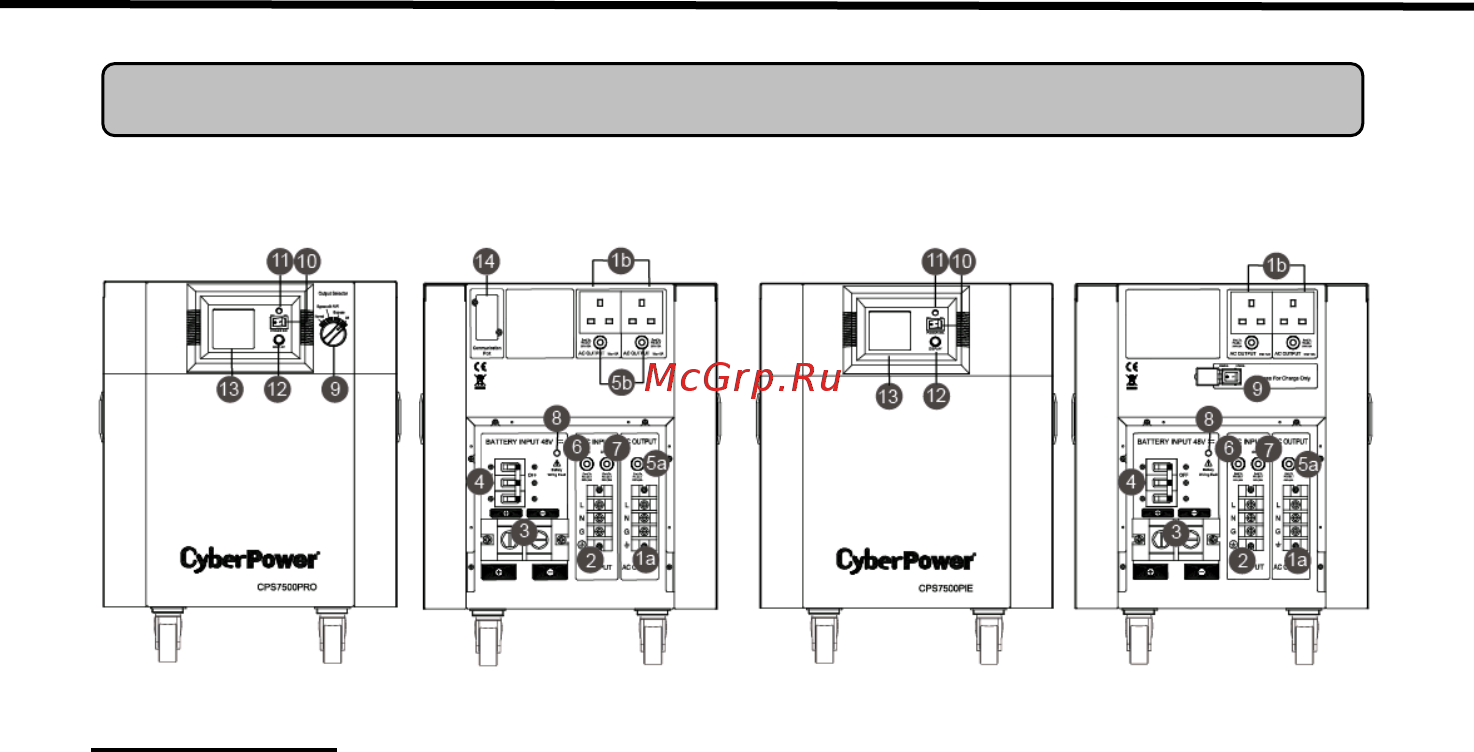

DESCRIPTION

1. AC Outlets

EPS PRO/PIE Series have two general plug-in outlets (UK/Schuko/France) and one terminal outlet for

connected equipment which ensures temporary uninterrupted operation of the equipment during a power

failure.

Max. Output of 1a is 40A ; Max. Output of 1b is 12A for UK socket, 16A for Schuko/French socket.

Max. Output wattage of (1a+1b) is 5250W.

*Note: Maximum cord length is 10 meters and the cable O.D. must be 10AWG or greater.

2. AC Inlet

AC input terminals

*Note：The O.D. of the distribution cables must be 10AWG or greater.

3. DC Inlet

Battery input terminals

*Note: Maximum battery wiring cable length is 2 meters and the cable O.D. must be 4AWG or greater.

4. DC Circuit Breaker

Located on the side of the EPS, the circuit breaker serves to provide overload and fault protection.

*Note: It is used as INPUT BATTERY SW as well.

5. AC Output Circuit Breaker

Located on the side of the EPS, the circuit breaker serves to provide overload and fault protection.

*Note: Circuit breaker 5a provides max 40A protection for 1a socket.

*Note: Circuit breaker 5b provides max 12A protection for UK socket or 16A for Schuko and France socket.

6. AC Input Circuit Breaker

Located on the side of the EPS, the circuit breaker serves to provide overload and fault protection.

CPS7500PIE

CPS7500PRO
