DEFINITIONS FOR ILLUMINATED LCD

Definitions for illuminated LCD

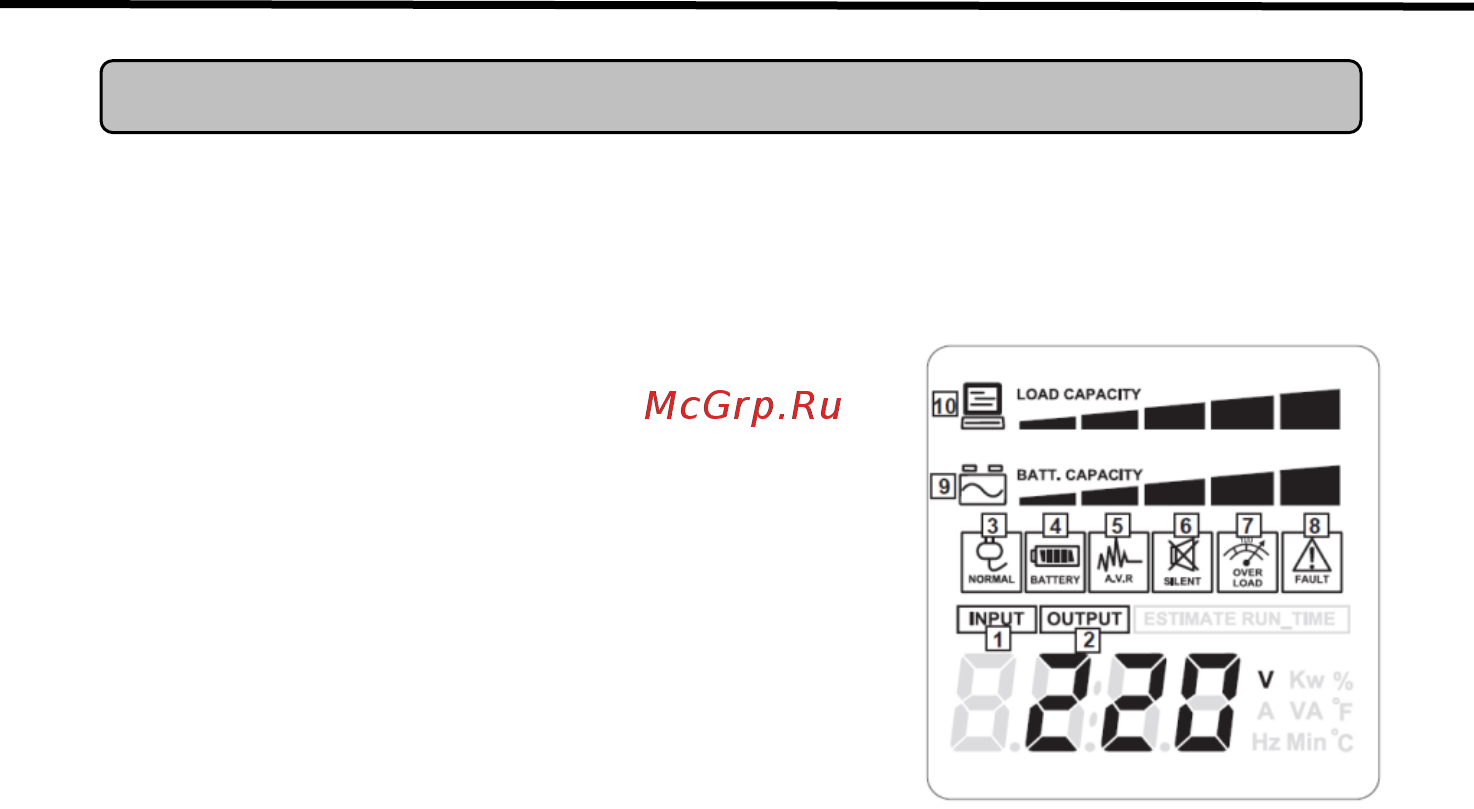

The LCD Display indicates a variety of EPS operational conditions. All descriptions apply when the EPS

is plugged into an AC outlet and turned on or when the EPS is on battery.

1. INPUT VOLTAGE Meter: This meter measures the AC

voltage that the EPS is receiving from the utility wall outlet. The

EPS is designed, through the use of automatic voltage

regulation, to continuously supply connected equipment with

stable 220 output voltage. In the event of a complete power loss,

severe brownout or over-voltage, the EPS will rely on its

external battery to supply consistent 220 output voltage. The

Input Voltage Meter can be used as a diagnostic tool to identify

poor quality input power.

2. OUTPUT VOLTAGE Meter: This meter measures the AC

voltage that the EPS is providing to the connected equipment. It

displays normal line mode, AVR mode, and battery backup

mode.

3. NORMAL MODE Icon: This icon will illuminate when the EPS is working under normal conditions.

4. ON BAT (On Battery) Icon: When a severe brownout or blackout occurs, this icon illuminates and an

alarm sounds (2 short beeps followed by a pause) to indicate the EPS is operating from its external

batteries. During a prolonged brownout or blackout, the alarm will sound continuously. When the

BATTERY CAPACITY Meter shows one 20% capacity segment remaining it indicates the EPS's external

batteries are nearly out of power. You should save files and shut down your equipment immediately.

5. AVR (Automatic Voltage Regulator) Icon: This icon will illuminate whenever your EPS is

automatically correcting high or low AC line voltage. This is a normal, automatic operation of your EPS,

and no action is required on your part.

6. SILENT MODE Icon: This icon illuminates whenever the EPS is in silent mode. The buzzer will not

beep during the battery mode until the battery reaches low capacity.

7. OVER LOAD Icon: This icon will illuminate and an alarm will sound to indicate the battery supplied

outlets are overloaded. To clear the overload, unplug some of your equipment from the battery supplied

outlets until the icon is no longer illuminated and the alarm stops.

8. FAULT MODE Icon: This icon illuminates if there is a problem with the EPS. Please contact

CyberPower Systems for further help and support.
